Order #: 1746-30-EUS
Mfg #: 4920715

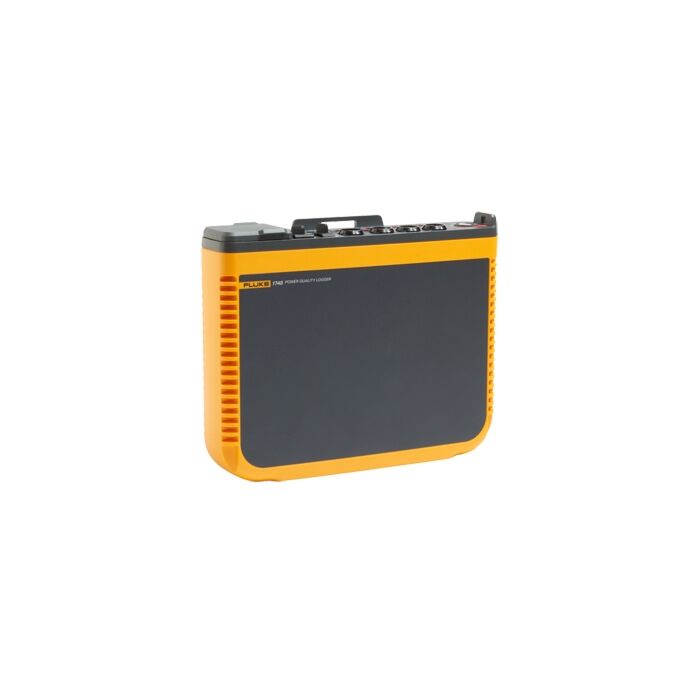

Fluke 1746/30/EUS Power Quality Logger with 24" (60CM) 3000A IFLEX Current Probe
Order #: 1746-30-EUS
Mfg #: 4920715
Product Highlights
- Measure the most important power quality and power parameters
- 1748 logs over 500 different parameters for each averaging period
- One-click reporting: create detailed reports according the most common power quality standards in seconds
- Easy to use: Auto-configuration check ensures every measurement campaign is right, the first time. Power the instrument from the measured line to simplify the connection process
<table >
<table >SpecificationsAccuracyParameterRangeMaximum ResolutionIntrinsic Accuracy at Reference Conditions (% of Reading +% of Range)Voltage1000 V0.1 V±0.1 % of nominal voltage 1, 2Current: Direct inputi17xx-flex 1500IP 24 1500 A150 A0.01 A (min. 1.5A)3±(1% + 0.02%)1500 A0.1 Ai17xx-flex 3000IP 24 3000 A300 A0.01 A (min. 3.0 A)3±(1% + 0.03%)3000 A0.1 Ai17xx-flex 6000IP 36 6000 A600 A0.01 A (min. 6.0 A)3±(1.5% + 0.03%)6000 A0.1 Ai40s-EL clamp4 A1 mA±(0.7% + 0.02%)40 A10 mAFrequency42.5 Hz to 69 Hz0.01 Hz±(0.1%)2Auxiliary input±10 V dc0.1 mV±(0.2% + 0.02%)Voltage min/max1000 V0.1 V±0.2 % of nominal input voltage1Current min/maxDefined by accessoryDefined by accessory±(5% + 0.2%)THD on voltage1000%0.10%± 2.5%THD on current1000%0.10%± 2.5%Voltage harmonics 2nd to 50th1000 V0.1 V≥ 1 V: ±5% of reading< 1 V: ±0.05VCurrent harmonics 2nd to 50thDefined by accessoryDefined by accessory≥ 3% of current range: ±5% of reading< 3% of current range: ±0.15% of rangeFlicker PLT, PST0 to 200.015%Current probe accuracyParameterInfluence quantityiFlex1500IP-24iFlex3000IP-24iFlex6000IP-36i40S-EL150 A / 1500 A300 A / 3000 A600 A / 6000 A4 A / 40 AActive Power P
PF ≥ 0.991.2% + 0.005%1.2% + 0.0075%1.7% + 0.0075%1.2% + 0.005%Active Energy EaApparent power S0 ≤ PF ≤ 11.2% + 0.005%1.2% + 0.0075%1.7% + 0.0075%1.2% + 0.005%Apparent Energy EapReactive power Q0 ≤ PF ≤ 12.5% of measured apparent powerReactive Energy ErPower Factor PF-±0.025Displacement PowerFactor DPF/cosΦAdditional uncertainty in% of rangeVP-N>250 V0.015%0.023%0.023%0.015%1 In the range of 100 V … 500 V; also known as Udin
2 0 °C … 45 °C: Intrinsic accuracy x 2, outside of 0 °C … 45 °C: Intrinsic accuracy x 3
3 Consult operators manual for details
Reference conditions:
Environmental: 23 °C ± 5 °C, instrument operating for at least 30 minutes, no external electrical/magnetic field, RH <65 %
Input conditions: Cosφ/PF=1, Sinusoidal signal f=50 Hz/60 Hz, power supply 120 V/230 V ±10 %.
Current and power specifications: Input voltage 1 ph: 120 V/230 V or 3 ph wye/delta: 230 V/400 V
Input current: I > 10 % of I range
Primary conductor of clamps or Rogowski coil in center position
Temperature coefficient: Add 0.1 x specified accuracy for each degree C above 28 °C or below 18 °C
Electrical Specifications
Power Supply | |||
Voltage range | 100 V to 500 V using safety plug input when powering from the measurement circuit | ||
100 V to 240 V MA-C8 and using standard power cord (IEC 60320 C7) | |||
Power consumption | Maximum 50 VA (max. 15 VA when powered using MA-C8 adapter) | ||
Efficiency | ≥ 68.2% (in accordance with energy efficiency regulations) | ||
Maximum no-load consumption | < 0.3 W only when powered using IEC 60320 input | ||
Mains power frequency | 50/60 Hz ±15% | ||
Battery | Li-ion 3.7 V, 9.25 Wh, customer-replaceable | ||
On-battery runtime | Typically 4 hours | ||
Charging time | < 6 hours | ||
Data Acquisition | |||
Resolution | 16-bit synchronous sampling | ||
Sampling frequency | 10.24 kHz at 50/60 Hz, synchronized to mains frequency | ||
Input signal frequency | 50/60 Hz (42.5 to 69 Hz) | ||
Circuit types | 1-Φ, 1-Φ IT, split phase, 3-Φ delta, 3-Φ wye, 3-Φ wye IT, 3-Φ wye balanced, 3-Φ Aron/Blondel (2-element delta), 3-Φ delta open leg, currents only (load studies) | ||
Data storage | Internal flash memory (not user replaceable) | ||
Memory size | Typical 20 logging sessions of 4 weeks with 1-minute intervals and 500 events | ||
Basic Interval | |||
Measured parameters | Voltage, current, aux, frequency, THD V, THD A, power, power factor, fundamental power, DPF, energy | ||
Averaging interval | User selectable: 1 sec, 5 sec, 10 sec, 30 sec, 1 min, 5 min, 10 min, 15 min, 30 min | ||
Averaging time min/max values | Voltage, Current: Full cycle RMS updated every half cycle (URMS1/2 according to IEC61000-4-30 Aux, Power: 200ms) | ||
Demand Interval (Energy Meter Mode) | |||
Measured parameters | Energy (Wh, varh, VAh), PF, maximum demand, cost of energy | ||
Interval | User selectable: 5 min, 10 min, 15 min, 20 min, 30 min, off | ||
Power Quality Measurements | |||
Measured parameter | Voltage, frequency, unbalance, voltage harmonics, THD V, current, harmonics, THD A, TDD, voltage interharmonics, TID V, current interharmonics, TID A, Flicker, Mains Signaling, under/over deviation | ||
Averaging interval | 10 min for all parameters 2 hrs (long term Flicker PLT) 150/180 cycles (3 s) for harmonics (requires software license IEEE519/REPORT) |
||
Individual harmonics | 2nd to 50th harmonic Grouping according to IEC 61000-4-7 user configurable depending on application: Sub-grouped (harmonics + interharmonics), grouped or harmonic bins only |
||
Interharmonics | 1st to the 50th interharmonic | ||
Total harmonic distortion | Calculated on 50 voltage harmonics | ||
Events | Voltage: dips, swells, interruptions, current: inrush current 1748: mains signaling, transients (low frequency) |
||
Triggered recordings | RMS profile: Full cycle RMS updated every half cycle of voltage and current up to 11 s (URMS1/2 according to IEC 61000-4-30) | ||
Waveform of voltage and current up to 200 ms, 10/12 cycles | |||
Mains signaling: 10/12 cycle RMS recording of the configured frequencies up to 120s | |||
Inrush | RMS profile based on 1/2 cycle RMS steady state triggering | ||
Flicker | In accordance with IEC 61000-4-15 and IEEE 1453 | ||
Mains signaling | Two user defined frequencies up to 3 kHz | ||
PQ Health | Summarizes power quality measurements in one table. Detailed data available for each parameter | ||
EN 50160 | Compliance with standard | ||
Programmable PQ limits | Enables user defined limits for local standards compliance | ||
Standards Compliance | |||
Harmonics | IEC 61000-4-7: Class 1 | ||
IEEE 519 (short time and very short time harmonics) | |||
Power quality | IEC 61000-4-30 Class A, IEC 62586-1, IEC 62586-2 (PQI-A-PI device) | ||
Power | IEEE 1459 | ||
Power quality compliance | EN 50160 | ||
Safety | General: IEC 61010-1: Pollution Degree 2 | ||
Measurement: IEC 61010-2-033: CAT IV 600 V / CAT III 1000 V | |||
Power Supply: Overvoltage Category IV, Pollution Degree 2 | |||
Li-ion Battery: IEC 62133 | |||
Interfaces | |||
USB-A | File transfer via USB flash drive, firmware updates, max. supply current: 120 mA | ||
WiFi | File transfer and remote control via direct connection or WiFi infrastructure | ||
Bluetooth | Read auxiliary measurement data from Fluke Connect® 3000 series modules (requires supported USB to BLE or WiFi/BLE adapter, check for availability) | ||
USB-mini | Data download device to PC | ||
Voltage Inputs | |||
Number of inputs | 4 (3 phases referenced to neutral) | ||
Maximum input voltage | 1000 Vrms, CF 1.7 | ||
Input impedance | 10 MΩ | ||
Bandwidth | 42.5 Hz to 3.5 kHz | ||
Scaling | 1:1 and variable | ||
Measurement category | 1000 V CAT III/600 V CAT IV | ||
Current Inputs | |||
Number of inputs | 4 (3 phases and neutral), mode selected automatically for attached sensor | ||
Input voltage | Clamp input: 500 mVrms/50 mVrms; CF 2.8 | ||
Rogowski coil input: 150 mVrms/15 mVrms at 50 Hz, 180 mVrms/18 mVrms at 60 Hz; CF 4 all at nominal probe range | |||
Range | 1 A to 150 A/10 A to 1500 A with thin flexible current probe i17XX-flex1500 IP 24 | ||
3 A to 300 A/30 A to 3000 A with thin flexible current probe i17XX-flex3000 IP 24 | |||
6 A to 600 A/60 A to 6000 A with thin flexible current probe i17XX-flex6000 IP 36 | |||
40 mA to 4 A/0.4 A to 40 A with 40 A clamp i40s-EL | |||
Bandwidth | 42.5 Hz - 3.5 kHz | ||
Scaling | 1:1 and variable | ||
Auxiliary Inputs | |||
Number of inputs | 2 (Analog with auxiliary adapter, or up to 2 BLE devices simultaneously) | ||
Input range | 0 to ± 10 V dc, or 0 to ± 1000 V dc (with optional adapter), 1 reading/s | ||
Scale factor | Format: mx + b (gain and offset) user configurable | ||
Displayed units | User configurable (7 characters, for example, °C, psi, or m/s) | ||
Wireless Bluetooth connection (check for availability) | |||
Number of inputs | 2 | ||
Supported modules | Fluke Connect® 3000 series | ||
Acquisition | 1 reading/s | ||
Environmental Specifications | |||
Operating temperature | -25 °C to +50 °C (-13 °F to 122 °F)1 | ||
Storage temperature | Without battery: -25 °C to +60 °C (-13 °F to 140 °F), with battery: -20 °C to +50 °C (−4 °F to 122 °F) | ||
Operating humidity | IEC 60721-3-3: 3K6: | ||
-25 °C to +30 °C (-13 °F to +86 °F): ≤ 100 % | |||
40 °C (104 °F): 55 % | |||
50 °C (122 °F): 35 % | |||
Operating altitude | 2000 m (up to 4000 m derate to 1000 V CAT II/600 V CAT III/300 V CAT IV) | ||
Storage altitude | 12,000 m | ||
Enclosure | IEC 60529: IP50 | ||
IEC 60529: IP65 with IP65 rated voltage connector | |||
Vibration | IEC 60721-3-3 / 3M2 | ||
Electromagnetic compatibility (EMC) | EN 61326-1: Industrial CISPR 11: Group 1, Class A | ||
IEC 61000-6-5 Power station environment | |||
Korea (KCC): Class A Equipment (industrial broadcasting and communication equipment) | |||
USA (FCC): 47 CFR 15 subpart B. This product is considered an exempt device per clause 15.103 | |||
General Specifications | |||
Warranty | Two-years (battery not included) | ||
Accessories: one-year | |||
Calibration cycle: two-years | |||
Dimensions | 23.0 cm x 18.0 cm x 5.4 cm (9.1 in x 7.1 in x 2.1 in) | ||
Weight | Instrument: 1 kg (2.2 lb) | ||
Tamper protection | Accept securing cables (max. Φ 6mm) | ||
1Warm up the product to -10 °C (+14 °F) before you power the unit on | |||
i17XX-FLEX1.5KIP Flexible Current Probe Specifications | |||
Measuring range | 1 to 150 A ac/10 to 1500 A ac | ||
Probe cable length | 610 mm (24 in) | ||
Probe cable diameter | 7.5 mm (0.3 in) | ||
Weight | 170 g (0.38 lb) | ||
Minimum bending radius | 38 mm (1.5 in) | ||
Nondestructive current | 100 kA (50/60 Hz) | ||
Temperature coefficient over operating temperature range |
0.05 % of reading/°C (0.028 % of reading/°F) | ||
Working voltage | 1000 V CAT III, 600 V CAT IV | ||
Output cable length | 2.0 m (6.5 ft) | ||
Probe cable material | TPR | ||
Weight | 115 g | ||
Probe cable material | TPR | ||
Coupling material | POM + ABS/PC | ||
Output cable | TPR/PVC | ||
Operating temperature | -20 °C to +70 °C (-4 °F to 158 °F) temperature of conductor under test shall not exceed 80 °C (176 °F) | ||
Temperature, non-operating | -40 °C to +80 °C (-40 °F to 176 °F) | ||
Relative humidity, operating | 15% to 85% non-condensing | ||
IP rating | IEC 60529: IP65 | ||
Warranty | One-year |
-
