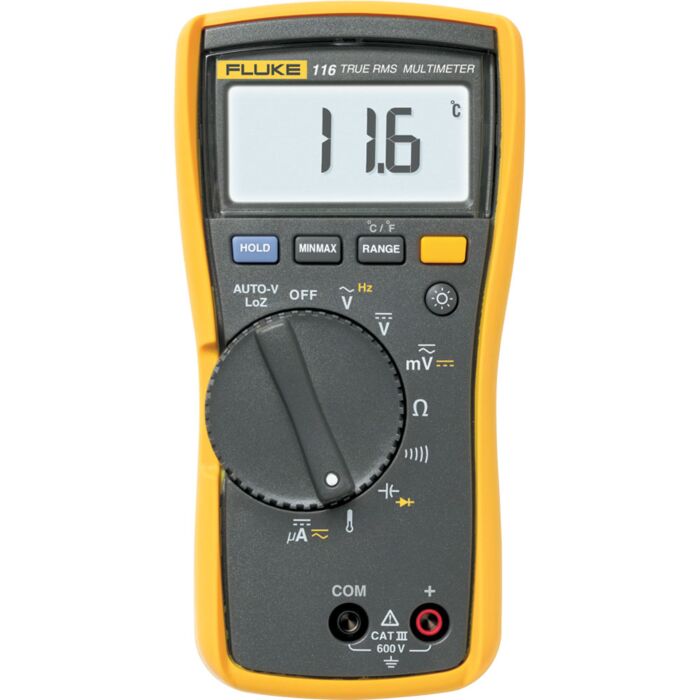

Fluke 116 HVAC Multimeter with Temperature & Microamps, 600V
Order #: 65161MM
Mfg #: 2538803
Overview
Everything You Need in an HVAC Meter
With the ability to take temperature and microamp measurements, the Fluke 116 Digital Multimeter has everything you need to help you quickly troubleshoot problems with HVAC equipment and flame sensors. The Fluke 116 measures resistance, continuity, frequency and capacitance. Fluke 116 multimeters are independently tested for safe use in CAT III 600 V Environments.
Product Highlights
- Built in thermometer and temperature probe included for HVAC applications
- Microamps to test flame sensors
- LoZ: low input impedance to eliminate "ghost voltage" to make more accurate measurements
- Large, white LED backlight to work in poorly lit areas
- Compact ergonomic design for one-handed operation
- Min/Max/Average to record signal fluctuations
- Compatible with optional magnetic hanger (ToolPak™)
- Resistance, continuity, frequency and capacitance
- CAT III 600 V safety rated
- TL75 Hard Point Test Lead Set
Each Unit Includes
- TL75 Test leads
- 80BK Integrated Temperature probe
- Holster
- Installed 9 V battery
- User manual
Webinars
- Fluke C115 Soft Carry Case with Shoulder StrapSoft Carry Case w/Shoulder Strap
Order #: C115
Mfg #: 2826063
Availability:In stockSpecial Price $62.07 Regular Price $74.79 - Fluke 80PK-8 Probe Pipe Clamp, Temperature ProbeProbe Pipe Clamp, Temperature Probe
Order #: 80PK-8
Mfg #: 200360
Availability: Call for availabilitySpecial Price $270.90 Regular Price $326.39 - Fluke TLK289 Industrial Master Test Lead SetIndustrial Master Test Lead Set
Order #: TLK289
Mfg #: 3045646
Availability:In stockSpecial Price $270.90 Regular Price $326.39 - Fluke PRV240 Battery-powered voltage source proving unitBattery-powered voltage source proving unit
Order #: PRV240
Mfg #: 4566209
Availability:In stockSpecial Price $228.19 Regular Price $271.99 - Fluke 80PK-10 Pipe Clamp Temperature ProbePipe Clamp Temperature Probe
Order #: 80PK-10
Mfg #: 3439199
Availability: Ships in 4-6 weeksSpecial Price $379.26 Regular Price $456.95 - Fluke 80AK Thermocouple Adapter Type KThermocouple Adapter Type K
Order #: 80AK
Mfg #: 2747812
Availability:In stockSpecial Price $55.30 Regular Price $66.63 - Fluke CXT170 Rugged Pelican Hard CaseRugged Pelican Hard Case
Order #: CXT170
Mfg #: 3352567
Availability:In stockSpecial Price $299.12 Regular Price $360.39 - Fluke TLK-225 SureGrip Master Accessory SetSureGrip Master Accessory Set
Order #: TLK225
Mfg #: 2097031
Availability:In stockSpecial Price $262.43 Regular Price $312.79 - Fluke TL175 TwistGuard Test LeadsTwistGuard Test Leads
Order #: TL175
Mfg #: 3521976
Availability:In stockSpecial Price $51.91 Regular Price $62.55 - Fluke TL220 Industrial Test Lead Set for All Fluke MetersIndustrial Test Lead Set for All Fluke Meters
Order #: TL20
Mfg #: 2003625
Availability:In stockSpecial Price $124.15 Regular Price $149.59 - Fluke TL224 SureGrip Silicon Test LeadsSureGrip Silicon Test Leads
Order #: TL24
Mfg #: 1610198
Availability:In stockSpecial Price $49.65 Regular Price $59.83 - Fluke TL75 Hard Point Test Lead SetHard Point Test Lead Set
Order #: TL75
Mfg #: 855705
Availability:In stockSpecial Price $41.75 Regular Price $50.31 - Fluke C25 Soft Carrying Case for Fluke MetersSoft Carrying Case for Fluke Meters
Order #: C25
Mfg #: 681114
Availability:In stockSpecial Price $62.07 Regular Price $74.79 - Fluke AC285 SureGrip Alligator ClipsSureGrip Alligator Clips
Order #: AC285
Mfg #: 1610159
Availability:In stockSpecial Price $50.78 Regular Price $61.19 - Fluke 80TK Thermocouple ModuleThermocouple Module
Order #: 80TK
Mfg #: 736736
Availability:In stockSpecial Price $237.03 Regular Price $285.59 - Fluke TL71 Premium Test Lead SetPremium Test Lead Set
Order #: TL71
Mfg #: 1274382
Availability:In stockSpecial Price $49.65 Regular Price $59.83 - Fluke 80PK-9 Type K Lance Tip Probe, T/C Assembly, Molded Plug, 1mType K Lance Tip Probe, T/C Assembly,Moldd.Plug,1m,Bulk
Order #: 80PK-9
Mfg #: 1288229
Availability:In stockSpecial Price $118.51 Regular Price $142.79 - Fluke Toolpak Meter Hanging KitMeter Hanging Kit
Order #: TPAK80-4
Mfg #: 1281997
Availability: Ships in 1-2 weeksSpecial Price $62.74 Regular Price $74.79 - Fluke C125 Case for Fluke 120 Series ScopeMetersCase for Fluke 120 Series ScopeMeters
Order #: C125
Mfg #: 646858
Availability:In stockSpecial Price $67.77 Regular Price $76.15 - Fluke AC87 Heavy Duty Bus Bar Clip SetHeavy Duty Bus Bar Clip Set
Order #: AC87
Mfg #: 1278079
Availability: Ships in 4-6 weeksSpecial Price $71.10 Regular Price $85.67
Specifications | ||
Maximum voltage between any terminal and earth ground | 600 V | |
Surge protection | 6 kV peak per IEC 61010–1 600 VCAT III, Pollution Degree 2 | |
Display | Digital: 6,000 counts, updates 4 per second | |
Bar graph | 33 segments, updates 32 per second | |
Operating temperature | -10°C to + 50°C | |
Storage temperature | -40°C to + 60°C | |
Battery type | 9 volt Alkaline, NEDA 1604A/ IEC 6LR61 | |
Battery life | 400 hours typical, without backlight | |
Accuracy Specifications | ||
DC millivolts | Range/resolution | 600.0 mV / 0.1 mV |
Accuracy | ±([% of reading] + [counts]): 0.5% + 2 | |
DC volts | Range/resolution | 6.000 V / 0.001 V |
60.00 V / 0.01 V | ||
600.00 V / 0.1 V | ||
Accuracy | ±([% of reading] + [counts]): 0.5% + 2 | |
Auto volts | Range/resolution | 600.0 V / 0.1 V |
Accuracy | 2.0% + 3 (DC, 45 Hz to 500 Hz) | |
4.0% + 3 (500 Hz to 1 kHz) | ||
AC millivolts¹ True RMS | Range/resolution | 600.0 mV / 0.1 mV |
Accuracy | 1.0% + 3 (DC, 45 Hz to 500 Hz) | |
2.0% + 3 (500 Hz to 1 kHz) | ||
AC volts¹ True RMS | Range/resolution | 6.000 V / 0.001 V |
60.00 V / 0.01 V | ||
600.0 V / 0.1 V | ||
Accuracy | 1.0% + 3 (DC, 45 Hz to 500 Hz) | |
2.0% + 3 (500 Hz to 1 kHz) | ||
Continuity | Range/resolution | 600 Ω / 1 Ω |
Accuracy | Beeper on < 20 Ω, off > 250 Ω detects opens or shorts of | |
500 μs or longer. | ||
Ohms | Range/resolution | 600.0 Ω / 0.1 Ω |
6.000 kΩ / 0.001 kΩ | ||
60.00 kΩ / 0.01 kΩ | ||
600.0 kΩ / 0.1 kΩ | ||
6.000 MΩ / 0.001 MΩ | ||
Accuracy | 0.9% + 1 | |
Range/Resolution | 40.00 MΩ / 0.01 MΩ | |
Accuracy | 5% + 2 | |
Diode Test | Range/resolution | 2.00 V / 0.001 V |
Accuracy | 0.9% + 2 | |
Capacitance | Range/resolution | 1000 nF / 1 nF |
10.00 μF / 0.01 μF | ||
100.0 μF / 0.1 μF | ||
9999 μF / 1 μF | ||
100 μF to 1000 μF | ||
Accuracy | 1.9% + 2 | |
Range/resolution | > 1000 μF | |
Accuracy | 5% + 20% | |
Lo-Z Capacitance | Range | 1 nF to 500 μF |
Accuracy | 10% + 2 typical | |
Temperature² | Range/resolution | -40°C to 400°C / 0.1°C |
(Type-K thermocouple) | Accuracy | 1% + 10² |
Range/resolution | -40°F to 752°F / 0.2°F | |
Accuracy | 1% + 18² | |
AC μA true-rms (45 Hz to 500 Hz) | Range/resolution | 600.0 μA / 0.1 μA |
Accuracy | 1.5% + 3 | |
DC μamps | Range/resolution | 600.0 μA / 0.1 μA |
Accuracy | 1.0% + 2 | |
Hz (V or A input)² | Range/resolution | 99.99 Hz / 0.01 Hz |
999.99 Hz / 0.1 Hz | ||
9.999 Hz / 0.001 Hz | ||
50.00 Hz / 0.01 Hz | ||
Accuracy | 0.1% + 2 | |
1. All AC voltage ranges except Auto-V/LoZ are specified from 1% to 100% of range. Auto-V/LoZ is specified from 0.0 V. | ||
2. Temperature uncertainty (accuracy) does not include the error of the thermocouple probe. | ||
3. Frequency is AC coupled, 5 Hz to 50 kHz for AC voltage. Frequency is DC coupled, 45 Hz to 5 kHz for AC current. | ||
4. Temperature Range/Resolution: -40°F to 752°F / 0.2°F. | ||
Mechanical and General Specifications | ||
Size | 167 x 84 x 46 mm (6.57 x 3.31 x 1.82 in) | |
Weight | 550 g | |
Warranty | 3 years |
