Fluke 3000FC FC Wireless Digital Multimeter
FC Wireless Digital Multimeter

Order #: 3000-FC

Mfg #: 4401595

Questions about availability or need help? Contact Us:

(800) 633-0561
Special Price $451.51 Regular Price $543.99

Fluke 3000FC FC Wireless Digital Multimeter

FC Wireless Digital Multimeter

Order #: 3000-FC

Mfg #: 4401595

Special Price $451.51 Regular Price $543.99
Availability:
In stock

Choose Your Options:

Add Calibration

You have chosen to add the following Calibration Services to Your Order

Make sure your instrument is calibrated and ready to use the minute you open the box by adding our expert calibration service. Why Calibrate? For a complete descriptions of Transcat Service Levels, click here.

Already have this this item and need calibration? Request a calibration quote

This product is available for shipping to the United States, Canada, and Puerto Rico only.

Overview

See it. Save it. Share it.

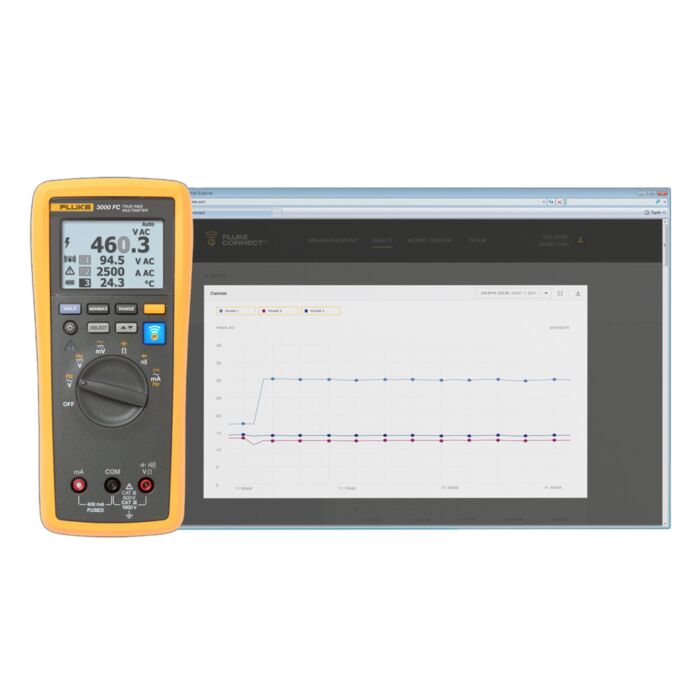

All the facts, right in the field. The Fluke 3000 FC True-RMS Wireless Multimeter with the Fluke Connect™ app and ShareLive™ video call.

With its precision, reliability and ease of use, the Fluke 3000 FC Wireless Multimeter is the ideal solution for professional technicians. Independently tested for safe use in CAT IV 600V/ CAT III 1000 V environments, the Fluke 3000 FC has all the features you need to troubleshoot and repair many problems in electrical and electronic systems.

The Fluke 3000 FC gives you true-RMS voltage and current measurements, 6000-count resolution, manual and automatic ranging and provide frequency, capacitance, resistance, continuity and diode measurements. In addition, the Fluke 3000 FC provides higher 0.09% basic accuracy, a digital display showing up to three secondary measurements from remote modules, and a bright white backlight.

Work safely near electrical panels while wearing less PPE

The Fluke 3000 FC True-RMS Wireless Multimeter and Fluke Connect wireless test tools put tools, not your body, near live electrical panels. It's simple. Just de-energize the cabinet, open the panel while wearing PPE and connect the remote modules, whether they are voltage modules, current clamps, flexible current loops or thermometers. Then read the results on the 3000 FC Wireless Multimeter from a safe distance. You can display the meter measurement, plus readings from up to 3 wireless modules, while reducing the risk of arc flash by separating yourself from hazardous measurement situations.

Better still, the Fluke 3000 FC Series Wireless Multimeter can send measurement data to your smartphone, so you can save and share measurements from the field with your team anytime, from anywhere.

Don"t get bogged down while chasing interrelated events

Timing is everything when trying to find the cause of a complex problem. Often you need to make a measurement in one place and see activity on a different part of the system at the same time. We"ve solved that problem with Fluke Connect - connect your remote modules in one location, then take your measurements up to 20 meters away with the Fluke 3000 FC multimeter. You"ll be able to see the interaction between your remote test points on one single screen, in real time. You can even download the data to a PC for further analysis.

Other capabilities of Fluke Connect and the FC 3000 Multimeter

  • Add your laptop and go from logging to analysis and diagnosis.
  • Record over time using the Fluke Connect wireless modules and monitor circuit load changes for an hour, a shift or a week.
  • Use the Fluke Connect wireless USB adapter to collect logged data from remote modules by walking past a working module and downloading logged data.
  • Perform for analysis with your PC and share the results using Fluke Cloud™ storage and ShareLive™ video call. View data or graphs to get input from team members.

Product Highlights

    • Communicate with your iOS (4s and later) and Android (4.3 and up) devices with the new Fluke Connect mobile application
    • Wireless technology allows connectivity between your phone, PC, and all Fluke Connect enabled test tools
    • Let your team see what you see in an instant with ShareLive video call
    • Save money and time by taking multiple measurements simultaneously
    • Isolate intermittent events or record signal fluctuations without even being there using the log function on the modules
    • View results on your computer with the PC Adapter
    • Work with fewer interruptions by recording multiple sessions before downloading.
    • Data is saved to a PC in .csv format (comma separated variable) file format for easy viewing at your convenience
    • Capture readings at different intervals, with user-set recording intervals from one second to one hour
    • Future proof your investment by adding functionality to the 3000 FC DMM when you need it

Webinars

Electrical Safety Measurement Webinar with Fluke

Win a Generac Generator when purchasing $750 or more from Transcat.Win a Generac Generator when purchasing $750 or more from Transcat.
  1. Fluke C35
    Fluke C35 Soft Carrying Case, Polyester,Black/Yellow
    Soft Carrying Case, Polyester,Black/Yellow

    Order #: C35

    Mfg #: 2826056

    Availability:
    In stock
    Special Price $49.65 Regular Price $59.83
  2. Fluke PC3000FC
    Fluke PC3000FC FC Wireless PC Adapter
    FC Wireless PC Adapter

    Order #: PC3000-FC

    Mfg #: 4401602

    Availability: Ships in 3-4 weeks
    Special Price $152.37 Regular Price $183.59
  3. Fluke TL175 TwistGuard Test Leads
    Fluke TL175 TwistGuard Test Leads
    TwistGuard Test Leads

    Order #: TL175

    Mfg #: 3521976

    Availability:
    In stock
    Special Price $51.91 Regular Price $62.55
  4. Fluke Toolpak Meter Hanging Kit
    Fluke Toolpak Meter Hanging Kit
    Meter Hanging Kit

    Order #: TPAK80-4

    Mfg #: 1281997

    Availability:
    In stock
    Special Price $62.74 Regular Price $74.79
AC Voltage
Range¹ / resolution   600.0 mV / 0.1 mV
6.000 V / 0.001 V
60.00 V / 0.01 V
600.0 V / 0.1 V
1000 V / 1 V
Accuracy² ³ ⁴ 45 Hz to 500 Hz 1.0% + 3
500 Hz to 1 kHz 2.0% + 3
1. AC voltage ranges are specified from 1% of range to 100% of range.
2. Crest factor of ≤ 3 at full scale up to 500 V, decreasing linearly to crest factor < 1.5 at 1000 V.
3. For non-sinusoidial waveforms, add ± (2% of reading + 2% full scale) typical, for crest factor up to 3.
4. Do not exceed 107 V-Hz.
DC Voltage, Continuity, Resistance, Diode Test and Capacitance
mV Range / resolution 600.0 mV / 0.1 mV
Accuracy 0.09% + 2
V Range / resolution 6.000 V / 0.001 V
60.00 V / 0.01 V
600.0 V / 0.1 V
1000 V / 1 V
Accuracy 0.09% + 2
0.15% + 2
Continuity Beeper Range / resolution 600 Ω / 1 Ω
Accuracy Meter beeps at < 25 Ω, beeper detects opens or shorts of 250 μs or longer.
Ω Range / resolution 600.0 Ω / 0.1 Ω
6.000 kΩ / 0.001 kΩ
60.00 kΩ / 0.01 kΩ
60.00 kΩ / 0.1 kΩ
600.0 kΩ / 0.001 MΩ
50.00 MΩ / 0.01 MΩ
Accuracy 0.5% + 2
0.5% + 1
1.5% + 3
Diode test Range / resolution 2.000 V / 0.001 V
Accuracy 1% + 2
µF Range / resolution 1000 nF / 1 nF
10.00 μF / 0.01 μF
100.0 μF / 0.1 μF
9999 μF1 / 1 μF
Accuracy 1.2% + 2
10% typical
1. In the 9999 μF range for measurements to 1000 μF, the measurement accuracy is 1.2% + 2.
AC and DC Current
mA AC  Range¹ / resolution 60.00 mA / 0.01 mA
(45 Hz to 1 kHz) 400.0 mA3 / 0.1 mA
  Accuracy 1.5% + 3
mA DC2 Range¹ / resolution 60.00 mA / 0.01 mA
400.0 mA3 / 0.1 mA
Accuracy 0.5% + 3
1. All AC current ranges are specified from 5% of range to 100% of range.
2. Input burden voltage (typical): 400 mA input 2 mV/mA.
3. 400.0 mA accuracy specified up to 600 mA overload.
Frequency
Range / resolution 99.99 Hz / 0.01 Hz
999.9 Hz / 0.1 Hz
9.999 kHz / 0.001 kHz
99.99 kHz / 0.01 kHz
Accuracy¹ 0.1% + 1
1. Frequency is specified up to 99.99 kHz in volts and up to 10 kHz in amps.
Input Characteristics
DC Voltage Overload protection 1100 V RMS
Input impedance (nominal) > 10 MΩ < 100 pF
Common mode rejection ratio  > 120 dB at DC, 50 Hz or 60 Hz
(1 kΩ unbalance)
Normal mode rejection > 60 dB at 50 Hz or 60 Hz
AC Voltage Overload protection 1100 V RMS
Input impedance (nominal) > 10 MΩ < 100 pF
Common mode rejection ratio  > 60 dB, DC to 60 Hz
(1 kΩ unbalance)
Normal mode rejection > 60 dB at 50 Hz or 60 Hz
AC/DC mV Overload protection 1100 V RMS
Input impedance (nominal) > 10 MΩ < 100 pF
Common mode rejection ratio  > 120 dB at DC, 50 Hz or 60 Hz
(1 kΩ unbalance)
Normal mode rejection > 60 dB at 50 Hz or 60 Hz
Open Circuit Test Voltage
Ohms / Capacitance Overload protection 1100 V RMS
Input impedance (nominal) < 2.7 V DC
Full scale voltage to 6 MΩ < 0.7 V DC
Full scale voltage 50 MΩ < 0.9 V DC
Typical short circuit current < 350 mA
Continuity Beeper / Diode Test Overload protection 1100 V RMS
Input impedance (nominal) < 2.7 V DC
Full scale voltage to 6 MΩ 2.000 V DC
Full scale voltage 50 MΩ
Typical short circuit current < 1.1 mA
mA Function
Overload protection Fused, 44/100 A, 1000 V FAST Fuse
Overload 600 mA overload for 2 minutes maximum, 10 minutes rest minimum
MIN/MAX Recording Accuracy
DC functions ± 12 counts for changes > 350 mS in duration.
AC functions ± 40 counts for changes > 900 mS in duration.
General Specifications
Maximum voltage between any terminal and earth ground 1000 V DC or AC RMS
Ω fuse protection from A inputs 0.44 A (44/100 A, 440 mA), 1000 V FAST Fuse, Fluke specified part only
Display (LCD) Update rate 4/sec
Volts, amps, ohms 6000 counts
Frequency 10,000 counts
Capacitance 1,000 counts
Battery type Three AA Alkaline batteries, NEDA 15A IEC LR6
Battery life 250 hours minimum
RF communications 2.4 GHZ ISM Band
RF communication range Open air, unobstructed Up to 20m
Obstructed, sheetrock wall Up to 6.5m
Obstructed, concrete wall, or steel electrical enclosure Up to 3.5m
Temperature Operating -10°C to 50°C
Storage -40°C to 60°C
Temperature coefficient 0.1 X (specified accuracy) / °C (< 18°C or > 28°C)
Relative humidity 0% to 90% (0°C to 35°C)
0% to 75% (35°C to 40°C)
0% to 45% (40°C to 50°C)
Altitude Operating 2,000 m
Storage 12,000 m
Electromagnetic compatibility EN 61326–1:2006, EN 61326–2–2:2006
EMI, RFI, EMC, RF ETSI EN 300 328 V1.7.1:2006, ETSI EN 300 489
  V1.8.1:2008
  FCC Part 15 Subpart C Sections 15.207, 15.209, 15.249
  FCCID : FCC: T68–FDMMBLE IC: 6627A–FDMMBLE
Safety compliance ANSI / ISA 61010–1 / (82.02.01): 3rd edition
CAN / CSA-C22.2 No 61010-1-12: 3rd edition
UL 61010–1: 3rd edition
IEC / EN 61010–1:2010
Certifications CSA, FCC, CE
Ingress Protection (IP) rating IP54
Pollution Degree 2
Size (H x W x L) 4.75 x 9.3 x 20.7 cm (1.87 x 3.68 x 8.14 in)
Weight 340 g (12 oz)
Warranty Three years
Not compatible with Fluke CNX test tools
