FLIR AX8 Value Package Continuous Monitoring Thermal Imager Kit
Continuous Monitoring Thermal Imager Kit
Order #: AX8-VALUE-PACKAGE
Mfg #: 71201-0101-KIT
$2,154.60
FLIR AX8 Value Package Continuous Monitoring Thermal Imager Kit
Continuous Monitoring Thermal Imager Kit
Order #: AX8-VALUE-PACKAGE
Mfg #: 71201-0101-KIT
$2,154.60
Availability: Ships in 3-4 weeks
Produce Highlights
- Automatic Analysis and Alarms
- With its streaming video output, the AX8 not only gives you live video of every installation, but it also provides automated alarming when pre-set temperature thresholds are exceeded as well as temperature trend analysis.
- Industrial Protocol
- Since FLIR A310 is Ethernet/IP and Modbus TCP compliant analysis and alarm results can easily be shared to a PLC. Digital inputs/outputs are available for alarms and control of external equipment. An image masking function allows you to select only the relevant part of the image for your analysis.
- Compact & Easy to Install
- Combining thermal and visual cameras in a small, affordable package, the AX8 measures only 54 x 25 x 95 mm, making it easy to install in space-constrained areas for uninterrupted condition monitoring of critical electrical and mechanical equipment.
- Multiple Video Options
- With AX8, you can view its thermal imagery, visible light imagery, or the two combined into FLIR's proprietary, patent pending MSX multispectral dynamic imaging. MSX provides image detail from the visible camera embossed on the thermal image, giving you, sharper edge detail, the ability to read labels and better contextual awareness.

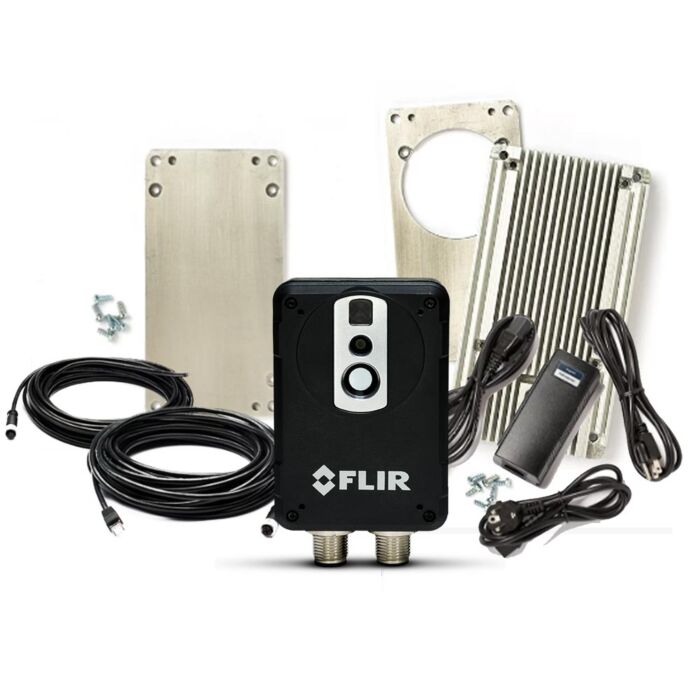

Each Unit Includes
- 71201-0101 - FLIR Ax8 Sensor
- T128390ACC - Ethernet Cable M12 to RJ45
- T128391ACC - Cable, M12 to pigtail
- T199019 - PoE Injector and Cable Kit
- T199163 - Front Mounting Kit
- T199019 - Rear Mounting Plate
- Infrared camera with lens
- Printed documentation
- User documentation CD-ROM
Please Note: Thermal Imaging Cameras are classified by the U.S. Department of Commerce as "dual use" instruments. Transcat is authorized to sell these instruments only in the United States and Canada. Diversion contrary to U.S. law is prohibited. To ensure that Thermal Imagers sold by Transcat do not go outside the US or Canada, we require a Dual Use Instrument End-User Certification Form to be filled out at time of purchase.
| Imaging & Optical Data | |
|---|---|
| IR Resolution | 80 × 60 pixels |
| Thermal Sensitivity/NETD | < 0.10°C @ +30°C (+86°F) / 100 mK |
| Field of View (FOV) | 48° × 37° |
| Focus | Fixed |
| Detector Data | |
| Detector Type | Focal Plane Array (FPA), uncooled microbolometer |
| Spectral Range | 7.5–13 µm |
| Visual Camera | |
| Built-in Digital Camera | 640 × 480 |
| Digital Camera, FOV | Adapts to the IR lens |
| Sensitivity | Minimum 10 Lux without illuminator |
| Measurement | |
| Object Temperature Range | –10 to 150°C (14 to 302°F) |
| Accuracy | ±2°C (±3.6°F) or ±2% of reading (10 to 100°C @ 10 to 35 amb) |
| Measurement Analysis | |
| Spotmeter | 6 |
| Area | 6 boxes with max./min./average |
| Automatic Hot/Cold Detection | Max/Min temp. value and position shown within box |
| Measurement Presets | Yes |
| Atmospheric Transmission Correction | Automatic, based on inputs for distance, atmospheric temperature and relative humidity |
| Optics Transmission Correction | Automatic, based on signals from internal sensors |
| Emissivity Correction | Variable from 0.01 to 1.0 |
| Reflected Apparent Temperature Correction | Automatic, based on input of reflected temperature |
| External Optics/Windows Correction | Automatic, based on input of optics/window transmission and temperature |
| Measurement Corrections | Global object parameters |
| Alarm | |
| Alarm Functions | Automatic alarms on any selected measurement function. A maximum of 5 alarms can be set |
| Alarm Output | Digital Out, store image, file sending (ftp), email (SMTP), notification |
| Set-up | |
| Color Palettes | Color palettes (BW, BW inv, Iron, Rain) |
| Set-up Commands | Date/time, Temperature °C/°F |
| Web Interface | Yes |
| Storage of Images | |
| Storage Media | Built-in memory for image storage |
| Image Storage Mode | IR, visual, MSX |
| File Formats | JPEG + FFF |
| Ethernet | |
| Ethernet | Control, result and image |
| Type | 100 Mbps |
| Standard | IEEE 802.3 |
| Connector type | M12 8-pin X-coded |
| Video Streaming | Yes |
| Power | Power over Ethernet, PoE IEEE 802.3af class 0. |
| Ethernet, protocols | Ethernet/IP, Modbus TCP, TCP, UDP, SNTP, RTSP, RTP, HTTP, ICMP, IGMP, sftp, SMTP, SMB (CIFS), DHCP, MDNS (Bonjour) |
| Image Streaming | |
| Image Streaming Formats | Motion JPEG, MPEG, H.264 |
| Image Streaming Resolution | 640 × 480 |
| Image Modes | Thermal, Visual, MSX (IR-image with enhanced detail presentation) |
| Automatic Image Adjustment | Continuous |
| Power System | |
| External Power Operation | 12/24VDC, 2 W continuously/ 3.1 W absolute max |
| External Power, Connector | M12 8-pin A-coded (Shared with digital I/O) |
| Voltage Allowed Range | 10.8–30VDC |
| Environmental Data | |
| Operating Temperature | 0 to 50°C (32 to 122°F) |
| Storage Temperature | -40 to 70°C (-40 to 158°F) IEC 68-2-1 and IEC 68-2-2 |
| Humidity (Operating and Storage) | IEC 60068-2-30/24 h 95% relative humidity 25 to 40°C (77 to 104°F)/ 2 cycles |
| EMC | EN 61000-6-2:2001 (Immunity) EN 61000-6-3:2001 (Emission) FCC 47 CFR Part 15 Class B (Emission) |
| Encapsulation | IP67 (IEC 60529) |
| Bump | 25 g (IEC 60068-2-29) |
| Vibration | 2 g (IEC 60068-2-6) |
| Physical Data | |
| Camera Size (L × W × H) | 54 × 25 × 79 mm (2.1 x 1 x 3.1 in.) w/o connectors 54 × 25 × 95 mm (2.1 x 1 x 3.7 in.) w/ connectors |
| Shipping Information | |
