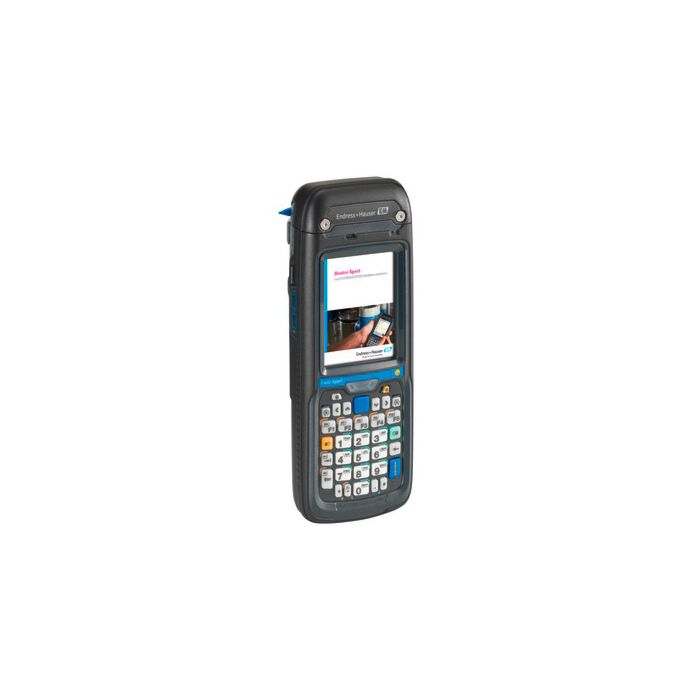

The Endress+Hauser Field Xpert SFX370 HART and Fieldbus Communicator
Order #: Endress+Hauser Field Xpert SFX370 HART and Fieldbus Communicator
Field Xpert is an industrial PDA with integrated touchscreen for commissioning and maintaining field devices in explosion hazardous and safe areas*. It allows efficient configuration of FOUNDATION fieldbus, HART 5/6/7 and WirelessHART devices via Bluetooth and/or Wifi interfaces. From an application oriented view, Field Xpert is the mobile platform for Endress+Hauser Plant Asset Management applications. *Field Xpert SFX350 (save areas) and Field Xpert SFX370 (explosion-hazardous areas).
Product Highlights
- Simple device access, optimized device configuration, adaptable configuration templates and clear configuration reports save time during commissioning
- Explicit device documentation saves time during device exchange, transparent maintenance, diagnosis and trouble-shooting information increases the safety and availability of the plant
- High resolution full-VGA touchscreen (640x480 Pixel) makes operation simple
- High ingress protection and explosion protection allows Field Xpert to be used in all industries
- Seamless integration of calibration data into calibration management solutions saves time and increases the quality of device calibrations
- Mobile phone, camera (send as-is pictures immediately by email), 1D laser scanner (barcode), 2D imager (e.g. DataMatrix-Code, QR-Code) and RFID as standard or option increases labor productivity
- Open, vendor-independent operating system allows additional Asset Management applications to be run
Field of Application
Field Xpert is the mobile platform for Endress+Hauser Plant Asset Management applications. RFID head modules allow Field Xpert functionality to be easily extended – one basis for efficient round tour management and asset inspection.
Maintenance activities are well supported by access to advanced field device diagnostics and meaningful user interaction with diagnostic categories and clear remedies.
Remote connectivity to maintenance experts via WLAN, WWAN and phone.
| Fieldbus Components | |
|---|---|
| Measuring Principle | Device configurator |
| Function | Ruggedized mobile computer (PDA) for commissioning and maintenance of field devices. Efficient device configuration and device diagnostics for HART and FOUNDATION fieldbus devices in Ex- and Non Ex-areas. |
| CPU | OMAP Multi Core Processor 1GHz |
| Memory | 512 MB RAM, 1 GB Flash Memory, 8 GB Micro-SD Card (up to 32 GB possible) |
| Power supply | Lithium-ion battery, IEEE 1725 (removable, rechargeable), 3,7 V,4000 mAh |
| Dimensions (W x H x D) | Standard: 225 mm x 85 mm x 58 mm (8,8" x 3,3" x 2,3") With optional head module: 249 mm x 85 mm x 58 mm (9,8" x 3,3" x 2,3") |
| Screen size | High resolution 3.5 inches touchscreen display, Gorilla glass protected, ambient light sensor, LED backlight, automatic screen rotation (accelerometer). |
| Resolution | VGA (640 x 480 pixels), 65.536 colors |
| Communication interface | • USB • Wireless LAN • Bluetooth • Infrared |
| Operation | Operating system: Microsoft Windows Embedded Handheld 6.5.3, German or English (depending on the order) |
| Configuration | Configuration software: • Device Xpert HART • Device Xpert FOUNDATION fieldbus |
| Optional | • Wireless WAN • GPS |
| Certificates and Approvals | Drop specification: MIL-STD 810G Electromagnetic Compatibility: Interference conformance to • EN 55022: 2006 + A1: 2007 • CISPR 22: 2006-03 (Class B) Immunity conformance to • EN 55024: 1998 + A1: 2001 + A2: 2003 • CISPR 24: 1998 + A1: 2001 + A2: 2003 Ingress protection: IP65, NEMA Type 4 Explosion protection: Intrinsically safe II 2G Ex ia IIC T4 Gb IP64 II 2D Ex ia IIIC T135°C Db IP6X CE Mark Hazardous area approval: • ATEX (Zone 1) IIC T4 • ATEX (Zone 21) IIIC IP 64 • IECEx (Zone 1) IIC T4 • IECEx (Zone 21) IIIC IP 64 • NEC Class I, Division 1, A–D T4 • NEC Class II, Division 1, E–G T4 • NEC Class III, Division 1 Telecommunication approval: FCC, CE Electrical safety: UL (DEMKO), cULus listed |
