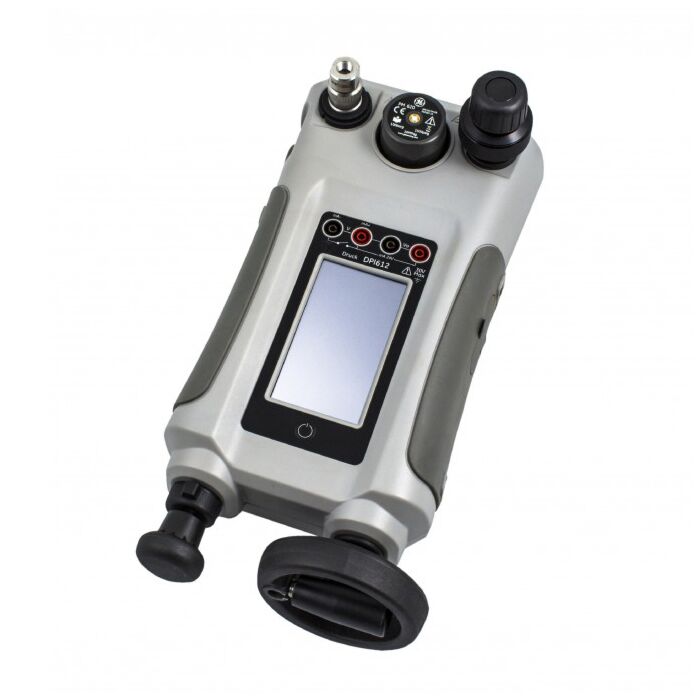

Druck DPI612 Pneumatic pFlex Pressure Calibrator, 0 to 1500 psi gauge

Pneumatic pFlex Pressure Calibrator, 0 to 1500 psi gauge

Order #: DPI612-PFP-100G

Mfg #: DPI 612-PFP-100G

Questions about availability or need help? Contact Us:

(800) 633-0561 sales@transcat.com

Special Price $11,617.76 Regular Price $12,628.00

Qty

Druck DPI612 Pneumatic pFlex Pressure Calibrator, 0 to 1500 psi gauge

Pneumatic pFlex Pressure Calibrator, 0 to 1500 psi gauge

Order #: DPI612-PFP-100G

Mfg #: DPI 612-PFP-100G

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Special Price $11,617.76 Regular Price $12,628.00

This model excels in a wide range of applications from a few mbar/psi through to 100 bar/1500 psi. It retains the low to medium pressure capability of the pFlex, but incorporates an advanced generation system extending its range five times. The pressure intensifier makes generating pressures from a few mbar/psi through to 40 bar/600 psi much quicker and easier and on the occasions when high pressure is required from a clean gas source, the pFlexPro is a safe and easy-to-transport alternative to bottled gas.

Availability: Ships in 3-4 weeks

Choose Your Options:

New Purchase Calibration

None

Calibration without Data + $254.44

Calibration with Data + $349.44

Accredited Calibration with Data and Uncertainties + $444.44

Add Calibration

Qty

Product Overview

Product Highlights

Pressure Range: 0 to 1,500 gauge
Maximum working pressure: 100 bar / 1500 psi pneumatic
Maximum vacuum: -95% of atmospheric pressure
Pressure media: Non-corrosive gases
Pressure connection: Quick-to-fit connection system. G1/8 female and 1/8 NPT female adaptors are provided
Size and weight: 350 mm x 170 mm x 160 mm ( 13.7 in x 6.7 in x 6.3 in) excluding accessories 4.1 kg (9 lb) including battery and pressure module

Each Unit Includes

PM 620 pressure module, 0 to 1500 psig
Rechargeable battery
Hose
Carry case
Dirt and moisture trap
Pressure relief valve
includes battery charger ( IO620-PSU)
carrying strap (IO612-STRAP)
test leads (IO61X-LEADS)
user guide
calibration certificate
