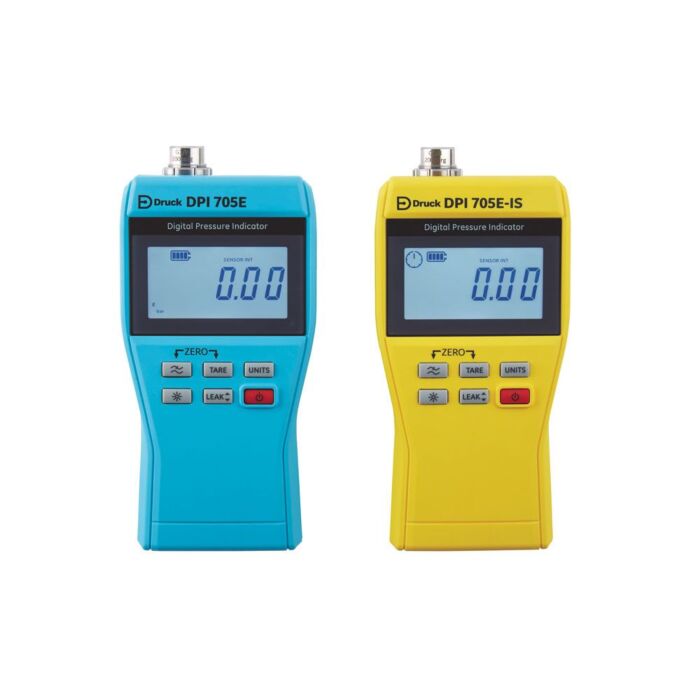

Druck DPI 705E Series Handheld Pressure Indicators

Product Highlights

Druck DPI 705E Pressure Indicator with Internal Sensor

• Ranges 0 to 25 mbar through to 700 bar (0 to 10 inH2O through to 10,000 psi) with internal sensor
• Optional external sensor 0 to 25 mbar through to 1400 bar (0 to 10 inH2O through to 20,000 psi)
• 48 total pressure ranges
• Gauge, Absolute, and Differential choices
• 19 programmable pressure units such as psi, inH2O, bar, inHg
• Optional negative calibration for vacuum
• Impact resistant, Rugged, lightweight handheld design
• Leak test, tare, min/max, alarm, and filter
• Optional remote RTD temperature sensors

DPI 705E Series Druck Handheld Pressure Indicators

The Druck DPI 705E Series of handheld pressure and optional temperature indicators combine tough and rugged design with accurate and reliable measurements. Compact and robust, the DPI 705E Series is designed for single handed operation and provides many essential features required for routine maintenance and system troubleshooting.

DPI 705E Improves Test Efficiency

• Power on and use. No warm up time required.
• 19 pressure measurement units (See below)
• 1, 3 or 5 minute leak test
• Impact resistant, sealed to IP54
• Large digit high-contrast LCD with backlight
• Optional carrying case with belt loop
• Optional magnetic/loop hanging strap
• Long battery life
• Integral desk stand and hanger

Special Features Pressure Units

• mbar, bar, Pa, hPa, Pa, MPa, psi , lb/ft2, kgf/cm2, kgf/m2, mmHg(0°C), mHg(0°C),  inHg 0, mmH2O, cmH2O, mH2O, inH2O (4°C, 20°C), ftH2O (4°C, 20°C)

Calibration Certificates

• Supplied as standard with bar, psi and kPa
• Optional UKAS approved calibrations available

Zero

Zero pressure correction (gauge/differential sensors)

Tare

0 to 100% FS temporary zero offset capability by subtracting the current reading from subsequent measurements.

Filter

Enables a filtered pressure reading by showing a rolling average of the last 10 measurements. Providing a more stable reading of a noisy measurement.

Alarm

User adjustable; high and low pressure alarms with visual (Bell Icon, Pressure Reading and Backlight flash) and audible warning for 60 seconds.

Calibration

Used in conjunction with the optional pneumatic or hydraulic hand pumps, the DPI 705E Series provides a simple, low-cost calibration solution.
