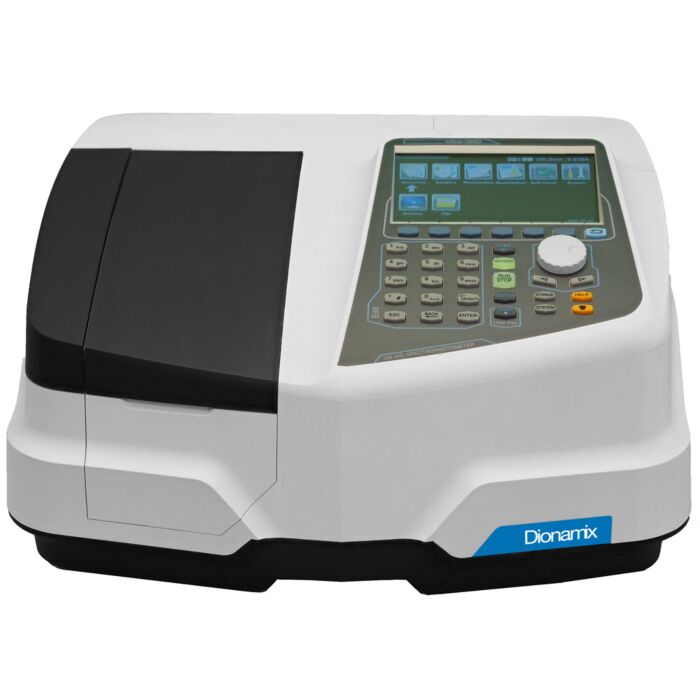

Dionamix UV-3660
Spectrophotometer, Double beam light path, 190 - 1100 nm

Order #: UV-3660

Mfg #: 3021003660

Questions about availability or need help? Contact Us:

(800) 633-0561
$12,950.00

Dionamix UV-3660

Spectrophotometer, Double beam light path, 190 - 1100 nm

Order #: UV-3660

Mfg #: 3021003660

$12,950.00
Availability: Ships in 3-4 weeks
This product is available for shipping to the United States, Canada, and Puerto Rico only.
This product is available for shipping to the United States, Canada, and Puerto Rico only.
This product is available for shipping to the United States, Canada, and Puerto Rico only.

Product Highlights

The Dionamix UV-3660 Spectrophotometer employs a Double Beam UV-Vis light path design with wavelength ranges of 0.5/1/2/4 nm. The Ultra-3000 series includes Spectrum, Kinetics, Photometric and Quantitation measurement modes with easy setup of measurement parameters and processing the results, simplifying bio-analytical test methods. The Double Beam light path makes it mor accurate and efficient to compare test sample to a standard in a single test run.

The UltraUV Workstation PC Software is easy to use yet powerful enough to meet the needs of sophisticated research analysis methods. The user interface breaks the measurement process into three easy to follow steps, Analysis Method, Measurement Operation and Results Processing and Reporting. The UltraUV workstation software is GLP/GMP compliant. It ensures data authenticity with built-in user account access controls, audit trail and use of encrypted data.

The UV-3660 Double beam design, wide wavelength range with high sensitivity and acuracy provide the felxibility and performance to meet the demands in research or industrial quality control labs.

Key Features

  • Double beam ultra low stray light path design
  • High resolution with versatile spectral bandwidth selection
  • Versatile Absorbance, Transmittance and Energy measurements with Spectrum, Kinetics, Photometric and Quantitation measurement modes
  • 7" color display with water resistant keyboard
  • USB storage and printing and PC vontrol with UltraUV workstation software
  • UltraUV workstation software GMP/GLP compliant used for analysis, data archive and reporting

Key Performance Specifications

  • Double Beam Ultra-low stray light ≤0.03%
  • Wavelength range 190nm ~ 1100nm with accuracy of ±0.3nm
  • 0.5nm optical resolution with 4 options of spectral bandwidth 0.5/1/2/4 nm
  • Photometric Range 3.5 Abs
  • Transmittance accuracy ±0.3%T and Baseline flatness ±0.0008Abs
Win a Generac Generator when purchasing $750 or more from Transcat.Win a Generac Generator when purchasing $750 or more from Transcat.
  1. Dionamix 2010001784 Optical Glass Cuvettes 100mm, 2 pcs
    Dionamix 2010001784
    Optical Glass Cuvettes 100mm, 2 pcs

    Order #: 2010001784

    Mfg #: 2010001784

    Availability:
    In stock
    $128.80
  2. Dionamix 2010001780 Optical Glass Cuvettes 70mm, 2 pcs
    Dionamix 2010001780
    Optical Glass Cuvettes 70mm, 2 pcs

    Order #: 2010001780

    Mfg #: 2010001780

    Availability: Ships in 3-4 weeks
    $128.80
  3. Dionamix 2010001783 Optical Glass Cuvettes 50mm, 2 pcs
    Dionamix 2010001783
    Optical Glass Cuvettes 50mm, 2 pcs

    Order #: 2010001783

    Mfg #: 2010001783

    Availability: Ships in 3-4 weeks
    $56.00
  4. Dionamix 2010001782 Optical Glass Cuvettes 40mm, 2 pcs
    Dionamix 2010001782
    Optical Glass Cuvettes 40mm, 2 pcs

    Order #: 2010001782

    Mfg #: 2010001782

    Availability: Ships in 3-4 weeks
    $56.00
  5. Dionamix 2010001781 Optical Glass Cuvettes 30mm, 2 pcs
    Dionamix 2010001781
    Optical Glass Cuvettes 30mm, 2 pcs

    Order #: 2010001781

    Mfg #: 2010001781

    Availability: Ships in 3-4 weeks
    $37.80
  6. Dionamix 2010001779 Optical Glass Cuvettes 20mm, 2 pcs
    Dionamix 2010001779
    Optical Glass Cuvettes 20mm, 2 pcs

    Order #: 2010001779

    Mfg #: 2010001779

    Availability: Ships in 3-4 weeks
    $30.80
  7. Dionamix 2010000984 Optical Glass Cuvettes 10mm, 2 pcs
    Dionamix 2010000984
    Optical Glass Cuvettes 10mm, 2 pcs

    Order #: 2010000984

    Mfg #: 2010000984

    Availability:
    In stock
    $27.93
  8. Dionamix 2010001786 Optical Glass Cuvettes 5mm, 2 pcs
    Dionamix 2010001786
    Optical Glass Cuvettes 5mm, 2 pcs

    Order #: 2010001786

    Mfg #: 2010001786

    Availability: Ships in 3-4 weeks
    $27.93
  9. Dionamix 1020002757 Quartz Black wall w/cover micro cells,10mm optical path, 2 pcs
    Dionamix 1020002757
    Quartz Black wall w/cover micro cells,10mm optical path, 2 pcs

    Order #: 1020002757

    Mfg #: 1020002757

    Availability: Ships in 3-4 weeks
    $259.00
  10. Dionamix 1020002758 Quartz Black wall w/cover micro cells,10mm optical path, 2 pcs
    Dionamix 1020002758
    Quartz Black wall w/cover micro cells,10mm optical path, 2 pcs

    Order #: 1020002758

    Mfg #: 1020002758

    Availability: Ships in 3-4 weeks
    $371.00
  11. Dionamix 2010001778 Quartz Glass Cuvettes 100mm, 2 pcs
    Dionamix 2010001778
    Quartz Glass Cuvettes 100mm, 2 pcs

    Order #: 2010001778

    Mfg #: 2010001778

    Availability: Ships in 3-4 weeks
    $567.00
  12. Dionamix 2010001777 Quartz Glass Cuvettes 70mm, 2 pcs
    Dionamix 2010001777
    Quartz Glass Cuvettes 70mm, 2 pcs

    Order #: 2010001777

    Mfg #: 2010001777

    Availability: Ships in 3-4 weeks
    $539.00
  13. Dionamix 2010001776 Quartz Glass Cuvettes 50mm, 2 pcs
    Dionamix 2010001776
    Quartz Glass Cuvettes 50mm, 2 pcs

    Order #: 2010001776

    Mfg #: 2010001776

    Availability: Ships in 3-4 weeks
    $348.60
  14. Dionamix 2010001775 Quartz Glass Cuvettes 40mm, 2 pcs
    Dionamix 2010001775
    Quartz Glass Cuvettes 40mm, 2 pcs

    Order #: 2010001775

    Mfg #: 2010001775

    Availability: Ships in 3-4 weeks
    $294.00
  15. Dionamix 2010001774 Quartz Glass Cuvettes 30mm, 2 pcs
    Dionamix 2010001774
    Quartz Glass Cuvettes 30mm, 2 pcs

    Order #: 2010001774

    Mfg #: 2010001774

    Availability: Ships in 3-4 weeks
    $175.00
  16. Dionamix 2010001773 Quartz Glass Cuvettes 20mm, 2 pcs
    Dionamix 2010001773
    Quartz Glass Cuvettes 20mm, 2 pcs

    Order #: 2010001773

    Mfg #: 2010001773

    Availability: Ships in 3-4 weeks
    $175.00
  17. Dionamix 2010001015 Quartz Glass Cuvettes 10mm, 2 pcs
    Dionamix 2010001015
    Quartz Glass Cuvettes 10mm, 2 pcs

    Order #: 2010001015

    Mfg #: 2010001015

    Availability:
    In stock
    $96.60
  18. Dionamix 2010001785 Quartz Glass Cuvettes 5mm, 2 pcs
    Dionamix 2010001785
    Quartz Glass Cuvettes 5mm, 2 pcs

    Order #: 2010001785

    Mfg #: 2010001785

    Availability: Ships in 3-4 weeks
    $96.60
  19. Dionamix 1020003791 Quartz Glass Cuvettes 3mL x 10mm, 2 pcs
    Dionamix 1020003791
    Quartz Glass Cuvettes 3mL x 10mm, 2 pcs

    Order #: 1020003791

    Mfg #: 1020003791

    Availability:
    In stock
    $96.60
  20. Dionamix 1020003792 Quartz Glass Cuvettes 0.1ml x 10mm, 2 pcs
    Dionamix 1020003792
    Quartz Glass Cuvettes 0.1ml x 10mm, 2 pcs

    Order #: 1020003792

    Mfg #: 1020003792

    Availability: Ships in 3-4 weeks
    $371.00
Ultra-3660 Ultra-3560
Light Path Double Split
Wavelength Scanning Yes Yes
Stray Light <0.03 %T <0.03 %T
Spectral Bandwidth 0.5nm/1nm/2nm/4nm (4 scales) 0.5nm/1nm/2nm/4nm (4 scales)
Wavelength Range 190nm ~ 1100nm 190nm ~ 1100nm
Wavelength Accuracy ±0.3nm ±0.3nm
Wavelength Repeatability 0.1nm 0.2nm
Photometric Range 3.5 Abs 3.5 Abs
Transmittance Accuracy ±0.3%T ±0.3%T
Transmittance Repeatability ±0. 1%T ±0. 1 %T
Baseline Flatness ±0.0008 Abs ±0.0008 Abs
Baseline Drift 0.0005 Abs/h 0.001 Abs/h
Photometric Noise ±0.00005 Abs ±0.0001 Abs
General Specifications Ultra-3000 Series
Weight 25kg
Dimensions (LxWxH) 550mm x 550mm x 220mm
Power Voltage 100V to 240VAC rms
Power Frequency 50-60Hz
Power 120W max
Operation Temperature 15°C ~ 35°C (temperature fluctuation less than 2 °C/hour)
Operating Humidity 20% RH ~ 80% RH
