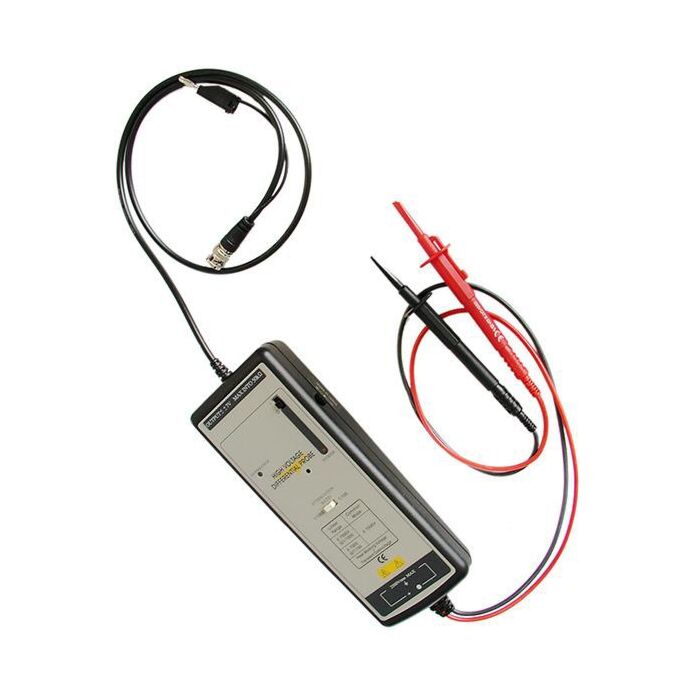

Test Products International ADF25C
Differential Oscilloscope Probe

Order #: ADF25C

Mfg #: ADF25C

Questions about availability or need help? Contact Us:

(800) 633-0561
Special Price $1,144.80 Regular Price $1,192.50

Test Products International ADF25C

Differential Oscilloscope Probe

Order #: ADF25C

Mfg #: ADF25C

Loading...
Print Save Item Compare
Special Price $1,144.80 Regular Price $1,192.50
Register to view exclusive member pricing
Availability: Ships in 3-4 weeks
Loading...

Choose Your Options:

Product Highlights

  • Bandwidth DC -70 MHz (-3dB)
  • Accuracy ± 2%
  • Risetime 14nS
  • CMRR (Typical) @ 50Hz -80dB
  • CMRR (Typical) @ 20kHz -60dB
  • CMRR (Typical) @ 200kHz -50dB
  • Input Impedance 10M/10pf each side to ground 20M/5pF between inputs
  • Input Voltage ±700V DC Inc.Pk AC @ 100:1 or 400V RMS
  • Maximum Differential ± 7,000VDC Inc. Pk AC 1,000:1 or 5,000V RMS
  • Output Voltage ± 7V minimum 50KO load
  • Offset (typical) <± 5mV -10° C to + 40° C
  • Common Mode ± 7,000V DC Inc. Pk AC or 2,500V RMS
  • Noise (typical) 0.9mV RMS
  • Output Source Impedance 50ohms
  • Operating Temperature -10° C to + 40° C (14°F to 104°F)
  • Power Requirements 4 AA cell or 6V main adapters: DC/600mA or DC/800mA
  • Input Leads 60 cm double insulated Rubber terminated in sprung hooks
  • IEC1010 CAT II
