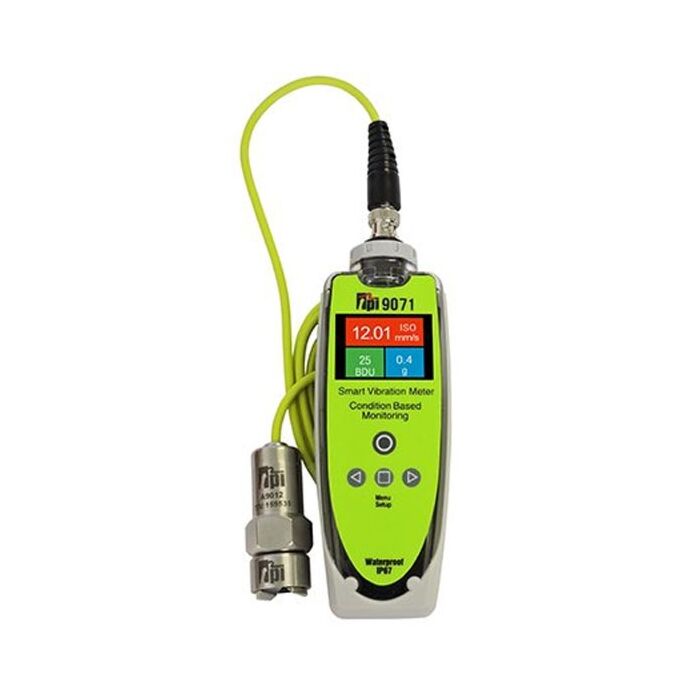

Test Products International 9071

Vibration Meter w/Accelerometer

Order #: 9071

Mfg #: 9071

$1,184.57

Availability: Ships in 3-4 weeks

Full Color OLED Display
Standard Cable mounted accelerometer with magnet
ISO Built-in Alarms
Easily identify bearing problems with BDU Reading
Easily identify problems with built in band filters
1X (unbalance)
2X (misalignment)
3X (looseness)
800 line FFT (spectrum)
Ruggedized IP67 case
3-year Limited Warranty
Size H 7.95″ W 2.36″ 200 mm x 60mm x 26mm
Weight 9.8oz (280g)(not including magnet)
Environmental * Water: IP67 Waterproof * Operating: 32°F to 122°F (0°C to 50°C) * Storage: -4°F to 158°F (-20°C to 70°C)
Power Supply 2xAA batteries
Battery Life Approximately 50 hours of normal use
Frequency Ranges 2/10Hz – 1kHz ISO 2Hz – 10kHz Total g 1kHz – 10kHz Bearing Analysis
Frequency Resolution 100 / 800 lines
Displayed Amplitude Units Acceleration in g Velocity in inches per second or mm per second Bearing Damage in BDU
Displayed Frequency Units Hz, CPM or RPM
Input Range +/- 50 g (with supplied accelerometer)
Dynamic Range 72 dB (0.05g resolution)
Auto set up of VA bands Yes
Measurement Storage 10 blocks / 20 readings per block
Accelerometer Connection BNC connector cable with removable magnet (1mV/g – 10,000mV/g)
Reading Storage 10 blocks/ 20 readings per block
