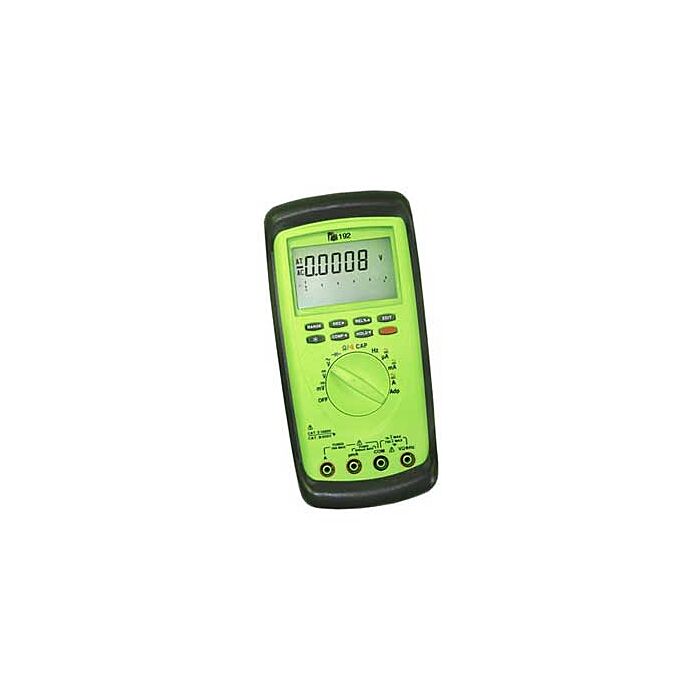

Test Products International 192

Product Highlights

• Data logging
• 50,000 count display
• 0.05% DCV basic accuracy
• True RMS
• Inductance
• Frequency
• Capacitance
• 0 to 750 ACV; max resolution 100uV
• 0 to 1,000 DCV: max resolution 0.001mV
• 0 to 50MΩ; max resolution 0.01Ω
• Audible continuity
• AC/DC amps up to10 amps; resolution 0.01 uA
• Analog bar graph
• Min/Max
• Data hold
• Power off
• Separate fuse and battery compartment
• DC Volts Maximum Input: 1000V Maximum Resolution: 0.001mV Accuracy: +/-0.05%
• AC Volts Maximum Input: 1000V Maximum Resolution: 100μV Accuracy: +/-0.4%
• DC Amps Maximum Input: 10A Maximum Resolution: 0.01μA Accuracy: +/-0.15%
• AC Amps Maximum Input: 10A Maximum Resolution: 0.01μA Accuracy: +/-0.75%
• Resistance (Ohms) Maximum Input: 50MΩ Maximum Resolution: 1mΩ Accuracy: +/-0.05%
• Frequency Maximum Input: 5MHz Maximum Resolution: 0.001Hz Accuracy: +/-0.05%
• Capacitance Maximum Input: 20mF Maximum Resolution: 0.01nF Accuracy: +/-2%
• Inductance Maximum Input: 300mH Maximum Resolution: 0.01mH Accuracy: +/-5%
• Temperature (K-Type Thermocouple) Maximum Input: -54°F to 2462°F (-50°C to 1350°C) Maximum Resolution: 0.1°F / °C Accuracy: +/-2%
• Continuity Audible at less than 10Ω
• Diode 3V at 1mA maximum output
• Duty Cycle Maximum Input: 99.9% Maximum Resolution: 0.1%
• True RMS Responding Yes
• Conductance Yes
• Pulse Width Yes
• Data Hold Yes (Two hold system)
• Min/Max Record Yes
• Time Stamp Logging Yes
• Relative Mode Yes
• Compare Mode Yes
• RS-232 Output Yes, Optically Isolated
• Process Loop Output No
• Sleep Mode / Auto Off Yes
• Protective Boot Yes (standard)
• Display Type 50,000 count backlit LCD with dual sub displays and analog bargraph
• Range Selection Auto / Manual
• Operating Temperature 32°F to 113°F (0°C to 40°C)
• Storage Temperature -4°F to 140°F (-20°C to 60°C)
• Humidity 80% non-condensing
• Size 8.3” x 3.7” x 1.9” (210mm x 95mm x 47mm) without boot 8.7” x 4.3” x 2.6 (220mm x 110mm x 65mm) with boot
• Weight 1.3lbs (570g) without boot 1.9lbs (850g) with boot
• Battery Type 9V Alkaline (NEDA 1604)
• Battery Life 50hrs Typical
• Overvoltage Category CAT III 600V
• Agency Approval cULus 61010-1, IEC 61010-1
• Warranty Limited Lifetime
