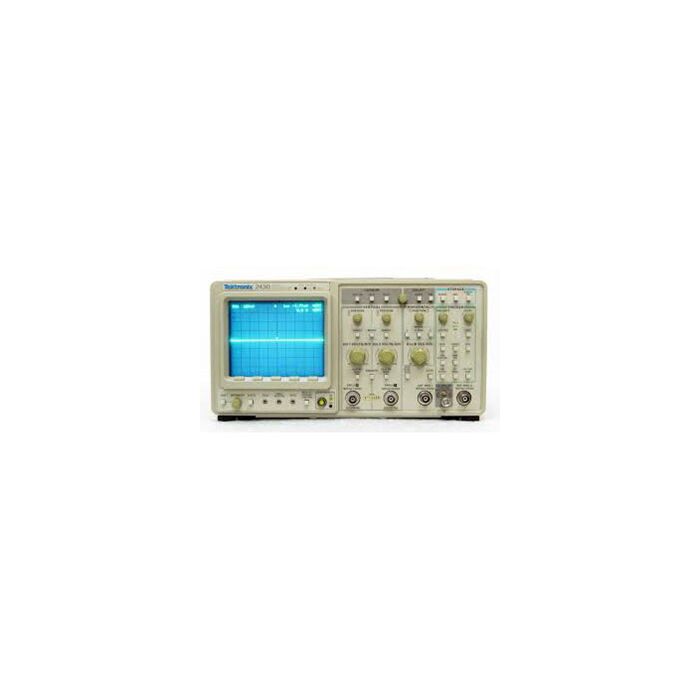

Used Tektronix 2430A Digital Oscilloscope, 150MHz, 2 Channel, 100MS/s, GPIB

Tektronix 2430A Highlights

The Tektronix 2430A oscilloscope is a graph-displaying device – it draws a graph of an electrical signal. In most applications, the graph shows how signals change over time: the vertical (Y) axis represents voltage and the horizontal (X) axis represents time. The intensity or brightness of the display is sometimes called the Z axis.

The Tektronix 2430A oscilloscope's simple graph can tell you many things about a signal, such as: the time and voltage values of a signal, the frequency of an oscillating signal, the "moving parts" of a circuit represented by the signal, the frequency with which a particular portion of the signal is occurring relative to, other portions, whether or not a malfunctioning component is distorting the signal, how much of a signal is direct current (DC) or alternating current (AC) and how much of the signal is noise and whether the noise is changing with time.

• Bandwidth: 150MHz
• No. of channels: 2ch
• Max. single ch. sampling rate: 100MSa/s
