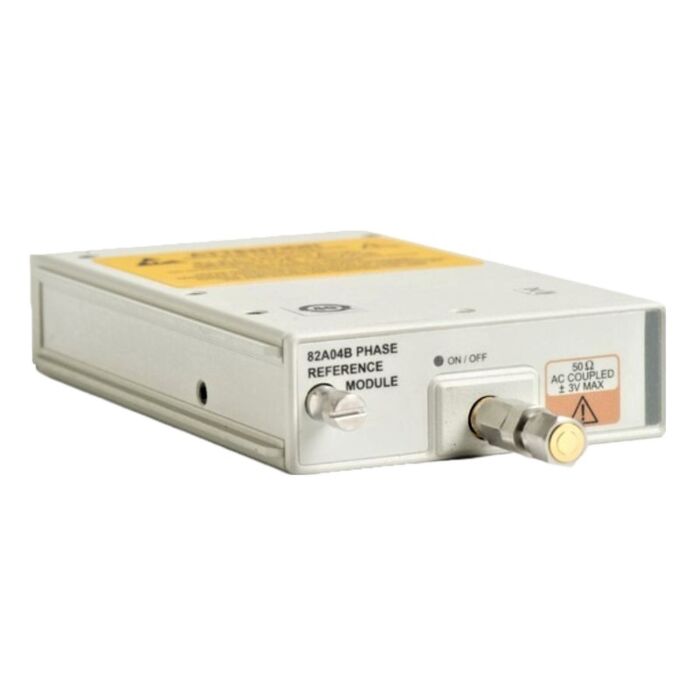

Tektronix 82A04B for Rent, Phase Reference Module

Product Highlights

The 82A04B Phase Reference Module extends the capability of the DSA8300 Digital Serial Analyzer sampling oscilloscope 1 by providing extremely low jitter/drift sample position information to the mainframe. This sample position information is based on the phase of a clock the user provides to the 82A04B input. The benefits of the Tektronix 82A04B using the sample position information based on a clock signal are two-fold - an extremely low jitter

Features and Specifications of the Tektronix 82A04B includes:

• Extremely low jitter <100
• Wide and continuous frequency range 2 GHz - 60 GHz
• Key features Flexible operation: Triggered Untriggered (Free-running) Acquisition Without Trigger Signal
• Support for enhanced acquisition modes (FrameScan ) Small module implementation allows: Acquisition on six other channels Placement close to the DUT with module extender cable
• Fast acquisition rate
