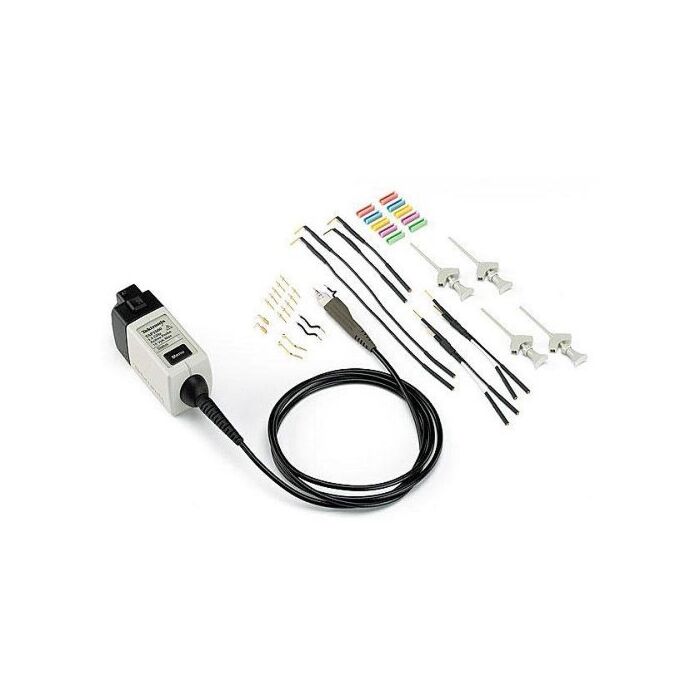

Tektronix TAP4000 Single-ended Active Probe, 4.0 GHz with TekVPI interface
Single-ended Active Probe 4.0 GHz w/ TekVPI interface
Order #: TAP4000
Mfg #: TAP4000
$12,810.00
Tektronix TAP4000 Single-ended Active Probe, 4.0 GHz with TekVPI interface
Single-ended Active Probe 4.0 GHz w/ TekVPI interface
Order #: TAP4000
Mfg #: TAP4000
Product Highlights
The TAP2500, TAP3500 and TAP4000 Single-ended Active FET probes provide excellent high-speed electrical and mechanical performance required for today's digital system designs.
Outstanding electrical performance
- High probe bandwidth
- Fast probe rise time
- Excellent signal fidelity
- ≤0.8 pF input capacitance
- 40 kΩ input resistance
- -4 V to +4 V input dynamic range
- -10 V to +10 V DC input offset range
- ±30 V (DC + peak AC) Maximum input voltage (nondestructive)
Versatile mechanical performance
- Small compact probe head for probing small geometry circuit elements
- DUT attachment accessories enable connection to SMDs as small as 0.5 mm pitch
- Robust design for reliability
Easy to use
- Connects directly to oscilloscopes with the TekVPI™ probe interface
- Provides automatic units scaling and readout on the oscilloscope display
- Easy access to oscilloscope probe menu display for probe status/diagnostic information and to control probe DC offset
- Remote GPIB/USB probe control through the oscilloscope
Applications
- Verification, debug, and characterization of high-speed designs
- Signal integrity, jitter, and timing analysis
- Manufacturing engineering and test
- Signals with voltage swings up to 8 V p-p
