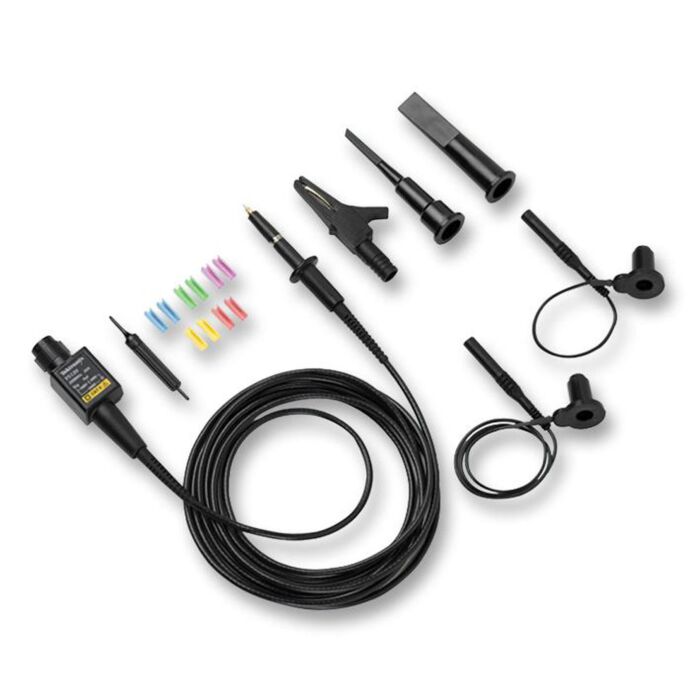

Tektronix P5122 High Voltage Probe: 200 MHz, 100X, 1kVRMS CAT II, BNC
High Voltage Probe: 200 MHz, 100X, 1kVRMS CAT II, BNC
Order #: P5122
Mfg #: P5122
$745.50
Tektronix P5122 High Voltage Probe: 200 MHz, 100X, 1kVRMS CAT II, BNC
High Voltage Probe: 200 MHz, 100X, 1kVRMS CAT II, BNC
Order #: P5122
Mfg #: P5122
$745.50
Availability: Ships in 3-4 weeks
Product Highlights
The P5122, coupled with the TPS2000 and THS3000 Series digital storage oscilloscopes, deliver both the isolation for the measurement from earth ground and full isolation between the channels. The P5122 probe should not be used on the TPS2000 Series oscilloscopes for AC-coupled measurements on signals with greater than 300 V DC offset.
- For TPS2000 and THS3000 Series Oscilloscopes
- DC to 200 MHz
- 1000 VRMS CAT II when DC-coupled*1
- Floatable up to 600 VRMS CAT II
- 100X
- IEC61010-031
