Static Solutions RT-2000

Product Highlights

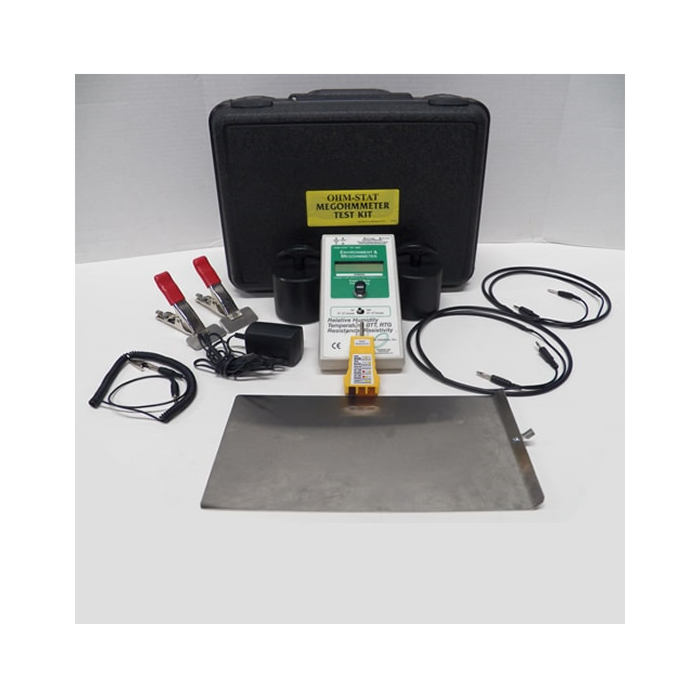

The Static Solutions Ohm-Stat® RT-2000 is a complete 20/20 ESD Audit Kit that includes the RT-1000 Digital Megohmeter and the FM-1125 Digital Static Locator.

The RT-1000 is designed to test all conductive, antistatic and static dissipative surfaces for electrical resistivity/resistance according to EOS/ESD, CECC, ANSI, ASTM and UL test procedures. This dependable, high quality unit also measures relative humidity and temperature, both of which affect electrical properties. Includes meter, foam lined carrying case, two 2.5" 5 lb probes, AC adaptor, coil cords, 9V battery, grounding hardware and certificate of calibration.

Includes probes to measure chairs, smocks and earth ground (a $300.00 Value)

Measurement Ranges:
• Resistivity/Resistance: 10³-10¹² ohms
• Relative Humidity: 10% - 90 % RH
• Temperature: 32° F to 100° F or 0° C to 37° C
• Test Voltage Range: 10v/100v
• Accuracy +/- 5%

The FM-1125 ESD Field Meter provides fast and easy precision measurements. The unit is grounded through its conductive case, the need to wear a grounded wrist strap is eliminated. Measurements are dependent on distance to the meter using a unique spacer.
