Order #: 40010
Mfg #: 40010
Simpson Electric 40010
Order #: 40010
Mfg #: 40010
![Loading...](https://www.transcat.ca/static/version1724161005/frontend/Transcat/canada-en/en_US/images/loader-1.gif)
Product Highlights

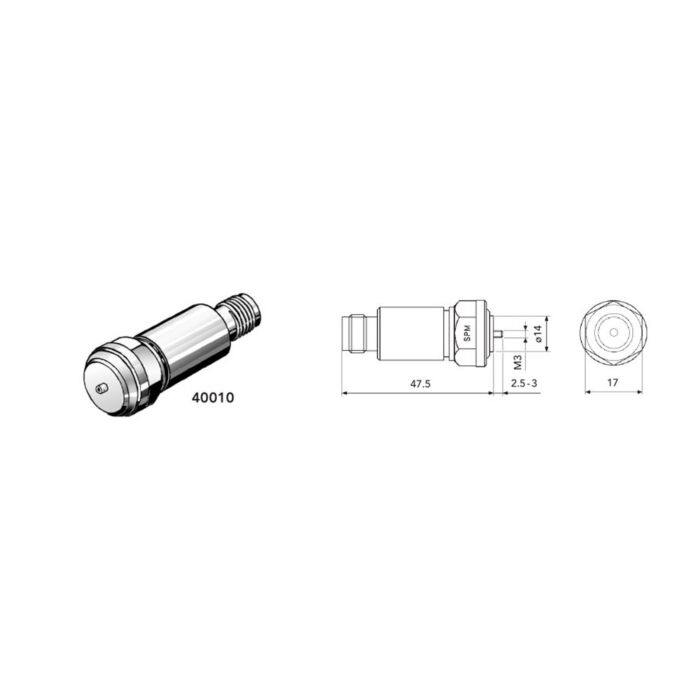

Glue-on transducers 40010 can replace standard transducers on thinwalled bearing housings and on machines where the drilling of standard mounting holes would affect equipment warranties. They have the same measuring characteristics as standard transducers, but a flat, circular base which is glued to the measuring point, and an M3 screw for unloading and fixing.
Mounting
The transducer is mounted against a smooth, flat surface on the machine. Use a 2.7 mm drill for the mounting hole and make it 4.5 mm deep. Always plane the surface with a counterbore, min. diameter 15 mm.
The recommended adhesives are 3M DP810, Loctite 638 or 480. Please read the instructions for use and follow them carefully. Screw the transducer by hand into the mounting hole. The screw is self-threading. In narrow spaces a 17 mm socket (SPM 81086) may be used. The torque should not be more than 1 Nm. Wait until the adhesive has hardened before connecting the cable.
Technical Data | |
---|---|
Measuring range: | Max. 100 dBsv |
Housing, base: | Stainless acid proof steel, Sandvik Grade: 1802, EN: 1.4523 |
Design: | Sealed |
Connector tightness: | IP65 with TNC connector. IP67 with conn. SPM13008 |
Temperature Range: | -30°C to + 150°C |
External Overpressure: | Max. 1 MPa (10 bar) |
Recommended Adhesive: | 3M DP810, Loctite 638 or 480 |
Connector: | TNC |
Weight: | 50 g |
-
