Siglent SVA1032X
Order #: SVA1032X
Mfg #: SVA1032X
Product Highlights

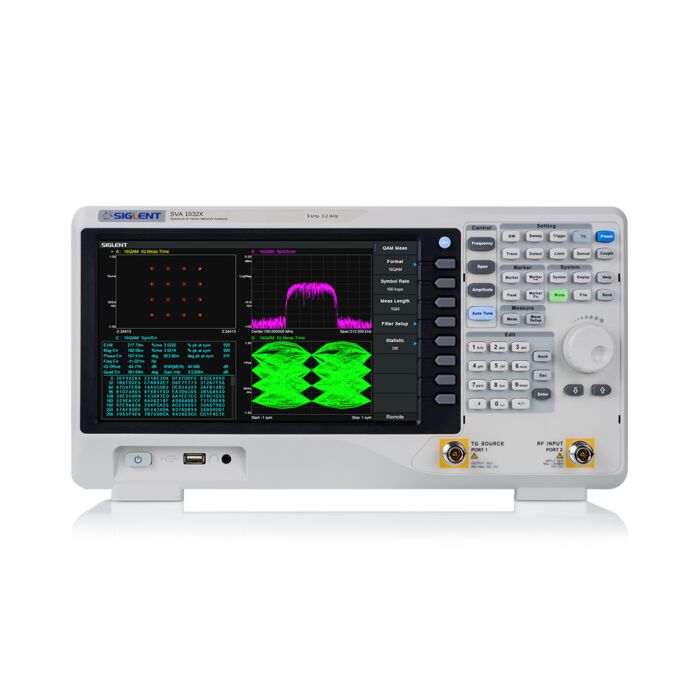

Siglent SVA1032X 9 kHz - 3.2 GHz with VNA and tracking generator included is a powerful and flexible tool for RF signal and network analysis. With a frequency range of 3.2 GHz, the analyzer delivers reliable automatic measurements and multiple modes of operation.
The base model are a spectrum analyzer and a vector network analyzer, optional functions include a distance-to-fault locator, a vector signal analyzer. Applications include broadcast monitoring/evaluation, site surveying, S-parameter measurement, cable and antenna testing, analog/digital modulation analysis, EMI pre-compliance test, research and development, education, production, and maintenance.
*New SVA1000X instruments feature approximately 100 hours of free trials of these options. The trial timer is running when the instrument is powered on. After the trial has expired, the function will be disabled/greyed out.
- Tracking Generator Standard
- Distance To Fault (Opt.)
- Vector Network Analyzer function (included after 9/23/2019)
- EMI Filter and Quasi-Peak Detector Kit (Opt.)
- Advanced Measurement Kit (Opt.)
- 10.1 lnch Multi-Touch Screen , Mouse and Keyboard supported
- Web Browser Remote Control on PC and Mobile Terminals and File Operation
| Model | SVA1015X | SVA1032X | SVA1075X |
|---|---|---|---|
| Spectrum Analyzer Frequency Range | 9 kHz~1.5 GHz | 9 kHz~3.2 GHz | 9 kHz~7.5 GHz |
| Vector Network Analyzer Frequency Range | 10 MHz~1.5 GHz | 100 kHz~3.2 GHz | 100 kHz~7.5 GHz |
| Resolution Bandwidth | 1 Hz~1 MHz | 1 Hz~1 MHz | 1 Hz~3 MHz |
| Displayed Average Noise Level | -156 dBm/Hz | -161 dBm/Hz | -165 dBm/Hz |
| SSB Phase Noise | <-99 dBc/Hz | <-98 dBc/Hz | <-98 dBc/Hz |
| Total Amplitude Accuracy | < 1.2 dB | < 0.7 dB | < 0.7 dB |
| Tracking Generator | 5 MHz~1.5 GHz | 100 kHz~3.2 GHz | 100 kHz~7.5 GHz |
| VNA measurement | Vector S11,Vector S21 | Vector S11,Vector S21 | Vector S11,Vector S21 |
| Distance to Fault | VNA Timing Domain Analysis Locator | VNA Timing Domain Analysis Locator | VNA Timing Domain Analysis Locator |
| Touch Screen | Multi Touch, Mouse and Keyboard supported | Multi Touch, Mouse and Keyboard supported | Multi Touch, Mouse and Keyboard supported |
| Advanced Measurement | CHP, ACPR, OBW, CNR, Harmonic, TOI, Monitor | CHP, ACPR, OBW, CNR, Harmonic, TOI, Monitor | CHP, ACPR, OBW, CNR, Harmonic, TOI, Monitor |
| Reflection Measurement | VSWR measurement using Reflection Bridge | VSWR measurement using Reflection Bridge | VSWR measurement using Reflection Bridge |
| EMI Test | EMI Filter and Quasi-Peak Detector, Log Scale and Limit Line | EMI Filter and Quasi-Peak Detector, Log Scale and Limit Line | EMI Filter and Quasi-Peak Detector, Log Scale and Limit Line |
| Modulation Analysis | AM, FM; ASK, FSK, MSK, PSK, QAM | AM, FM; ASK, FSK, MSK, PSK, QAM | AM, FM; ASK, FSK, MSK, PSK, QAM |
| Communication Interface | LAN, USB Device, USB Host (USB-GPIB) | LAN, USB Device, USB Host (USB-GPIB) | LAN, USB Device, USB Host (USB-GPIB) |
| Remote Control Capability | SCPI/Labview/IVI based on USB-TMC/VXI-11/Socket/Telnet | SCPI/Labview/IVI based on USB-TMC/VXI-11/Socket/Telnet | SCPI/Labview/IVI based on USB-TMC/VXI-11/Socket/Telnet |
| Remote Controller | SCPI/Labview/IVI based on USB-TMC/VXI-11/Socket/Telnet | SCPI/Labview/IVI based on USB-TMC/VXI-11/Socket/Telnet | SCPI/Labview/IVI based on USB-TMC/VXI-11/Socket/Telnet |
