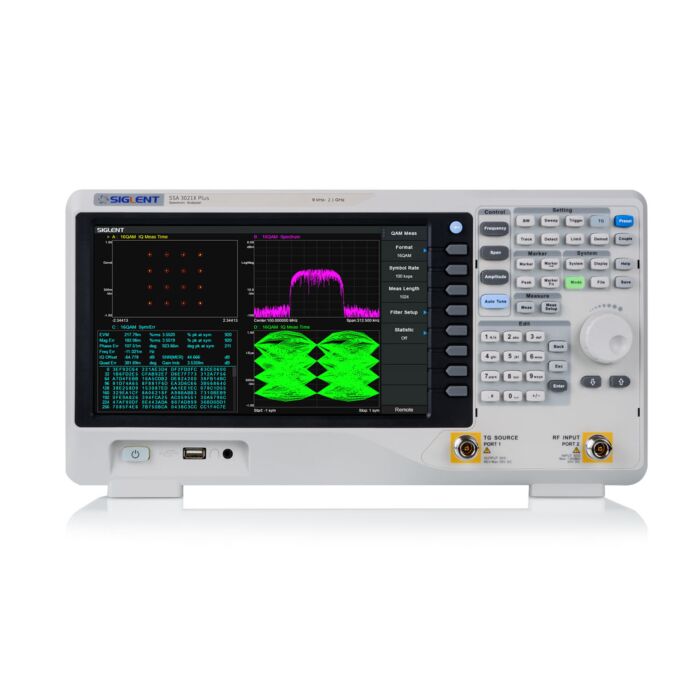

Siglent SSA3021X PLUS
Order #: SSA3021X PLUS
Mfg #: SSA3021X PLUS
Product Highlights
The SIGLENT SSA3021X Plus spectrum analyzer is a powerful and flexible tool for RF signal and network analysis. With a frequency range of 2.1 GHz, the analyzer delivers reliable automatic measurements and multiple modes of operation.
The basic function of the Siglent SSA3021X PLUS Spectrum analyzer and options include RF power measurement, vector signal modulation analysis, reflection measurement, and EMI testing. Applications include broadcast monitoring/evaluation, site surveying, S-parameter measurement, analog/digital modulation analysis, EMI pre-compliance test, research and development, education, production, and maintenance.
*New SSA3000X Plus instruments feature approximately 100 hours of free trials of these options. The trial timer is running when the instrument is powered on. After the trial has expired, the function will be disabled/greyed out.
- Spectrum Analyzer Frequency Range from 9 kHz up to 2.1 GHz / 3.2 GHz
- -161 dBm/Hz Displayed Average Noise Level (Typ.)
- -98 dBc/Hz.@10 kHz Offset Phase Noise (1 GHz, Typ.)
- Level Measurement Uncertainty < 0.7 dB (Typ.)
- 1 Hz Minimum Resolution Bandwidth (RBW)
- Preamplifier Standard
- Tracking Generator (included at no charge)
- Vector Signal Modulation Analysis Mode (Opt.)
- Reflection Measurement Kit (Opt.)
- EMI Filter and Quasi-Peak Detector Kit(Opt.)
- Advanced Measurement Kit (Opt.)
- 10.1 lnch Multi-Touch Screen , Mouse and Keyboard supported
- Web Browser Remote Control on PC and Mobile Terminals and File Operation
| Model | SSA3021X PLUS | SSA3032X PLUS | SSA3075X PLUS |
|---|---|---|---|
| Spectrum Analyzer Frequency Range | 9 kHz~1.5 GHz | 9 kHz~3.2 GHz | 9 kHz~7.5 GHz |
| Resolution Bandwidth | 1 Hz~1 MHz | 1 Hz~1 MHz | 1 Hz~3 MHz |
| Displayed Average Noise Level | -161 dBm/Hz | -161 dBm/Hz | -165 dBm/Hz |
| SSB Phase Noise | <-98 dBc/Hz | <-98 dBc/Hz | <-98 dBc/Hz |
| Total Amplitude Accuracy | < 0.7 dB | < 0.7 dB | < 0.7 dB |
| Tracking Generator | 100 kHz ~ 2.1 GHz | 100 kHz~3.2 GHz | 100 kHz~7.5 GHz |
| Touch Screen | Multi Touch, Mouse and Keyboard supported | Multi Touch, Mouse and Keyboard supported | Multi Touch, Mouse and Keyboard supported |
| Advanced Measurement | CHP, ACPR, OBW, CNR, Harmonic, TOI, Monitor | CHP, ACPR, OBW, CNR, Harmonic, TOI, Monitor | CHP, ACPR, OBW, CNR, Harmonic, TOI, Monitor |
| Reflection Measurement | VSWR measurement using Reflection Bridge | VSWR measurement using Reflection Bridge | VSWR measurement using Reflection Bridge |
| EMI Test | EMI Filter and Quasi-Peak Detector, Log Scale and Limit Line | EMI Filter and Quasi-Peak Detector, Log Scale and Limit Line | EMI Filter and Quasi-Peak Detector, Log Scale and Limit Line |
| Modulation Analysis | AM, FM; ASK, FSK, MSK, PSK, QAM | AM, FM; ASK, FSK, MSK, PSK, QAM | AM, FM; ASK, FSK, MSK, PSK, QAM |
| Communication Interface | LAN, USB Device, USB Host (USB-GPIB) | LAN, USB Device, USB Host (USB-GPIB) | LAN, USB Device, USB Host (USB-GPIB) |
| Remote Control Capability | SCPI/Labview/IVI based on USB-TMC/VXI-11/Socket/Telnet | SCPI/Labview/IVI based on USB-TMC/VXI-11/Socket/Telnet | SCPI/Labview/IVI based on USB-TMC/VXI-11/Socket/Telnet |
| Remote Controller | NI-MAX, Web Browser, Easy Spectrum software, File Explorer | NI-MAX, Web Browser, Easy Spectrum software, File Explorer | NI-MAX, Web Browser, Easy Spectrum software, File Explorer |
