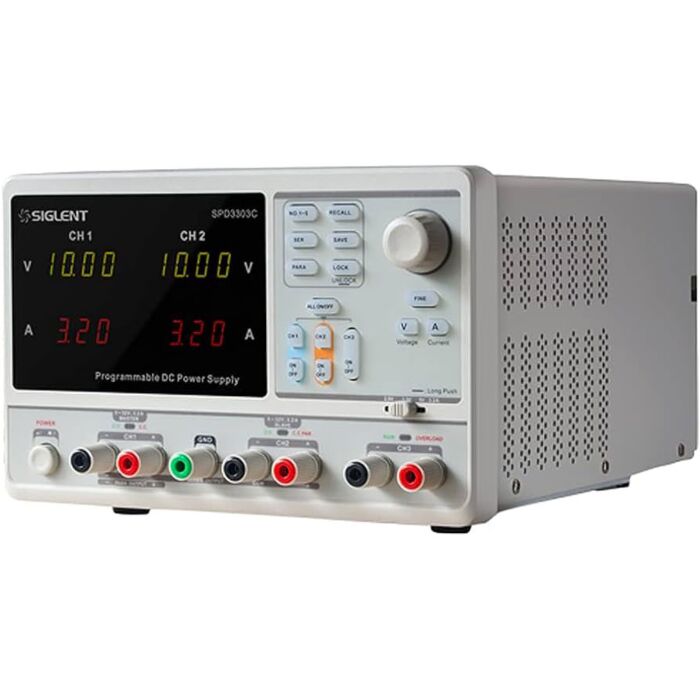

Siglent SPD3303C
Linear Triple DC Power Supply 30V/3A x 2,2.5V/3.3V/5V/3A x1

Order #: SPD3303C

Mfg #: SPD3303C

Questions about availability or need help? Contact Us:

(800) 633-0561
$418.60

Siglent SPD3303C

Linear Triple DC Power Supply 30V/3A x 2,2.5V/3.3V/5V/3A x1

Order #: SPD3303C

Mfg #: SPD3303C

$418.60
Availability:
In stock

Choose Your Options:

Add Calibration

You have chosen to add the following Calibration Services to Your Order

Make sure your instrument is calibrated and ready to use the minute you open the box by adding our expert calibration service. Why Calibrate? For a complete descriptions of Transcat Service Levels, click here.

Already have this this item and need calibration? Request a calibration quote

Product Highlights

  • The SPD3303C is a LED display screen programmable linear DC power supply that is both, lightweight, and is multi-functional. It has three independent outputs: two sets of adjustable voltage and a fixed set of selectable voltage s,2.5V, 3.3V, and 5V. In addition, it has output short-circuit and overload protection. Total power is 195W. It possesses an independent, series / parallel output mode. The SPD3300C is a high performance-to-price price product that can be used in various types of production and research environments.
  • 3 independent high precision output?30V/3A*2,2.5V/3.3V/5V/3A*1,total 195W power
  • display, min resolution: 10mV, 10mA 4 digits voltage and 3 digits current
  • Three output modes: independent, series and parallel
  • 100V/120V/220V/230V compatible design, to meet the need of different power grids
  • Smart temperature controlled fan, effectively reduce the noise
  • Save/Recall 5 group system specifications, support data storage expansion
  • Connected to PC via USB Device, support SCPI command, to meet the control and communication needs
  • CH1: output voltage 0~30V output current 0~3A
  • CH2: output voltage 0~30V output current 0~3A
  • CH3: output voltage 2.5/3.3/5.0V output current 0~3A
  • LED display 4 bits voltage display,3 bits current display
  • 10mV,10mA
  • voltage ±(0.5% of reading+2digits)
  • current ±(0.5% of reading+2digits)
  • voltage±(0.5% of reading+2digits)
  • current±(0.5% of reading+2digits)
