Order #: SDS7304A H12
Mfg #: SDS7304A H12

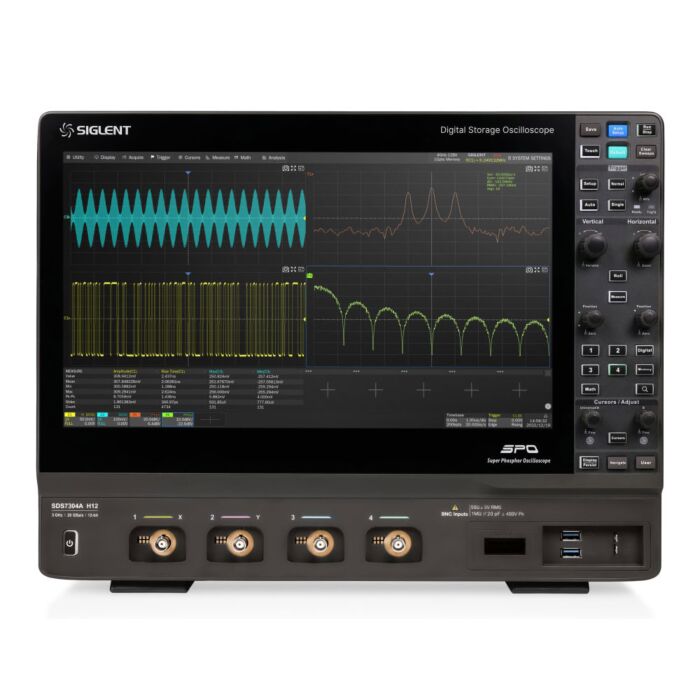

Siglent SDS7304A H12 Digital Oscilloscope, 3 GHz, 16 Channels
Order #: SDS7304A H12
Mfg #: SDS7304A H12
Product Highlights
The Siglent SDS7000A features a 12-bit ADC with a sample rate of up to 20 GSa/s and a standard memory depth of 500 Mpts/ch.
The SDS7000A employs Siglent's SPO technology with a maximum waveform capture rate of up to 1,000,000 wfm/s, a 256-level intensity grading display function, and a color temperature display mode. It also features an innovative digital trigger system with high sensitivity and low jitter, supporting multiple powerful triggering modes. Tools such as History waveform recording, Search and Navigate functions, Signal Scan, and more enable extended waveform records to be captured, stored, and analyzed.
The large 15.6" HD capacitive touch screen supports multi-touch gestures, with the addition of a user-friendly UI design, which can greatly improve operational efficiency. It also supports mouse control and remote web control over LAN.
Features
- 4 analog channels / 3 GHz bandwidth
- 16 digital channels (requires optional SPL2016 logic probe and SDS7000A-16LA software)
- Memory depth: 500 Mpts/ch (1 Gpts/ch via option SDS7000A-1GPTS)
- Real-time sampling rate: 20 GSa/s
- Waveform capture rate: up to 1,000,000 wfm/s
- 15.6" HD capacitive touch screen (1920 x 1080) with multi-touch gesture support
- Built-in 50 MHz arbitrary waveform generator (via option SDS7000A-FG)
- Automatic measurements on 50+ parameters
- I2C, SPI, UART, CAN, and LIN included standard
- 12-bit ADC
- Siglent SDS7000A-FGWaveform Generator, For SDS7000A Oscilloscopes
Order #: SDS7000A-FG
Mfg #: SDS7000A-FG
Availability: Call for Availability$1,036.00 - Siglent SDS7000A-16LADigital Channel, For SDS7000A Oscilloscopes
Order #: SDS7000A-16LA
Mfg #: SDS7000A-16LA
Availability: Call for Availability$1,428.00 - Siglent SDS7000A-PAPower Analysis, For SDS7000A Oscilloscopes
Order #: SDS7000A-PA
Mfg #: SDS7000A-PA
Availability: Call for availability$2,296.00 - Siglent SDS7000A-EJEye Diagram/Jitter Analysis, For SDS7000A Oscilloscopes
Order #: SDS7000A-EJ
Mfg #: SDS7000A-EJ
Availability: Call for Availability$2,786.00 - Siglent SDS7000A-I2STrigger/Decode, For SDS7000A Oscilloscopes
Order #: SDS7000A-I2S
Mfg #: SDS7000A-I2S
Availability: Call for Availability$770.00 - Siglent SDS7000A-1553BTrigger/Decode, For SDS7000A Oscilloscopes
Order #: SDS7000A-1553B
Mfg #: SDS7000A-1553B
Availability: Call for Availability$770.00 - Siglent SDS7000A-FlexRayTrigger/Decode, For SDS7000A Oscilloscopes
Order #: SDS7000A-FlexRay
Mfg #: SDS7000A-FlexRay
Availability: Call for Availability$770.00 - Siglent SDS7000A-CANFDTrigger/Decode, For SDS7000A Oscilloscopes
Order #: SDS7000A-CANFD
Mfg #: SDS7000A-CANFD
Availability: Call for Availability$770.00 - Siglent SDS7000A-SENTTrigger/Decode, For SDS7000A Oscilloscopes
Order #: SDS7000A-SENT
Mfg #: SDS7000A-SENT
Availability: Call for Availability$770.00 - Siglent SDS7000A-ARINCTrigger/Decode, For SDS7000A Oscilloscopes
Order #: SDS7000A-ARINC
Mfg #: SDS7000A-ARINC
Availability: Call for Availability$770.00 - Siglent SDS7000A-ManchManchester Decode, For SDS7000A Oscilloscopes
Order #: SDS7000A-Manch
Mfg #: SDS7000A-Manch
Availability: Call for Availability$770.00 - Siglent SDS7000A-USB2USB 2.0 Decode, For For SDS7000A Oscilloscopes
Order #: SDS7000A-USB2
Mfg #: SDS7000A-USB2
Availability: Call for availability$770.00 - Siglent SDS7000A-CT-USB2Compliance Testing, For SDS7000A Oscilloscopes
Order #: SDS7000A-CT-USB2
Mfg #: SDS7000A-CT-USB2
Availability: Call for availability$728.00 - Siglent SDS7000A-CT-100BASE-TCompliance Testing, For SDS7000A Oscilloscopes
Order #: SDS7000A-CT-100BASE-T
Mfg #: SDS7000A-CT-100BASE-T
Availability: Call for availability$3,038.00 - Siglent SDS7000A-CT-1000BASE-TCompliance Testing, For SDS7000A Oscilloscopes
Order #: SDS7000A-CT-1000BASE-T
Mfg #: SDS7000A-CT-1000BASE-T
Availability: Call for availability$5,110.00 - Siglent SDS7000A-CT-100BASE-T1Compliance Testing, For SDS7000A Oscilloscopes
Order #: SDS7000A-CT-100BASE-T1
Mfg #: SDS7000A-CT-100BASE-T1
Availability: Call for availability$3,290.00 - Siglent SDS7000A-CT-1000BASE-T1Compliance Testing, For SDS7000A Oscilloscopes
Order #: SDS7000A-CT-1000BASE-T1
Mfg #: SDS7000A-CT-1000BASE-T1
Availability: Call for availability$5,446.00 - Siglent SDS7000A-1GPTSMemory Depth Upgrade to 1 Gpts, For SDS7000A Oscilloscopes
Order #: SDS7000A-1GPTS
Mfg #: SDS7000A-1GPTS
Availability: Call for availability$4,452.00
