Siglent SDS7000A-CT-100BASE-T1

Product Highlights

• 100Base-T1 compliance testing option
• Compatible with SDS7000A oscilloscopes
• FX-AMETH test fixture sold separately

Features

1000Base-TX Compliance Testing Option for SDS7000A Oscilloscopes

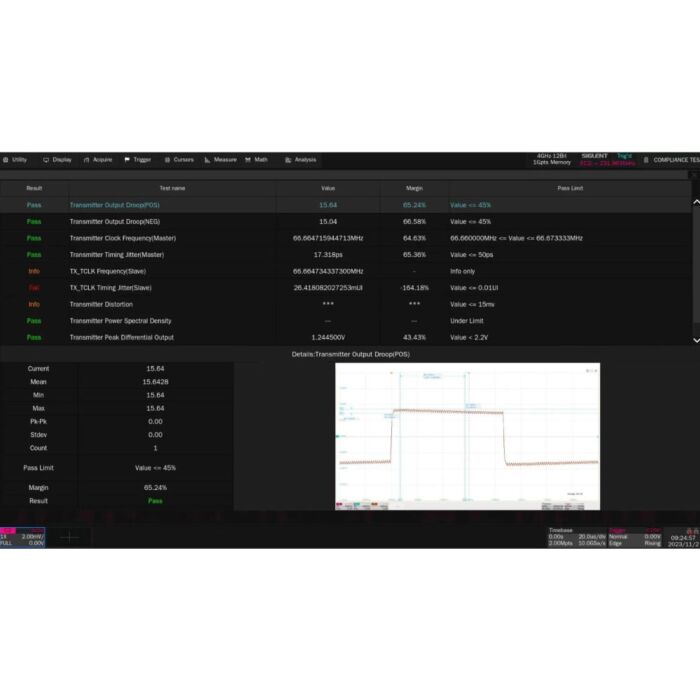

The Siglent SDS7000A-CT-100BASE-T1 is the 100Base-T1 compliance testing option for SDS7000A oscilloscopes. It tests the following items: Transmitter Output Droop (Transmitter Output Droop(POS)/Transmitter Output Droop(NEG)), Master Transmitter Clock Frequency And Timing Jitter (Master Transmitter Clock Frequency/Master Transmitter Timing Jitter), TX_TCLK Frequency And Timing Jitter (TX_TCLK Frequency/TX_TCLK Timing Jitter), Transmitter Distortion, MDI Return Loss, MDI Mode Conversion Loss, Transmitter Power Spectral Density And Peak Differential Output (Transmitter Power Spectral Density/Transmitter Peak Differential Output), MDI Common Mode Emission

Several versions available

Siglent offers several compliance testing software options for use with its SDS7000A oscilloscope series. The chart below outlines each protocol and the corresponding part numbers for software and test fixtures.

When the user sets up the environment according to the prompts, by using the related test fixture, the oscilloscope and related instruments can be automatically set up and related measurement, calculation, decoding, and other functions will be used for testing, helping the user to complete each test project quickly and efficiently, and reports are generated automatically.
