Siglent SDS6058L
Low Profile Digital Oscilloscope, 500 MHz; 8 ch

Order #: SDS6058L

Mfg #: SDS6058L

Questions about availability or need help? Contact Us:

(800) 633-0561
$26,432.00

Siglent SDS6058L

Low Profile Digital Oscilloscope, 500 MHz; 8 ch

Order #: SDS6058L

Mfg #: SDS6058L

$26,432.00
Availability: Ships in 3-4 weeks

Choose Your Options:

Add Calibration

You have chosen to add the following Calibration Services to Your Order

Make sure your instrument is calibrated and ready to use the minute you open the box by adding our expert calibration service. Why Calibrate? For a complete descriptions of Transcat Service Levels, click here.

Already have this this item and need calibration? Request a calibration quote

Product Highlights

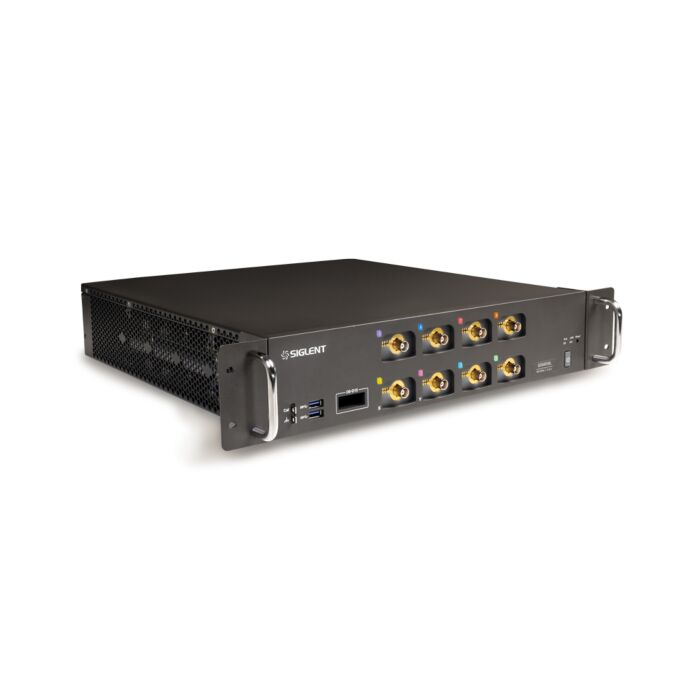

SIGLENT's NEW SDS6058L 8 channel 500MHz Low Profile Digital Storage Oscilloscope provides up to 8 analog channels + 16 digital channels in a space-saving chassis size. It has a maximum sample rate of 5 GSa/s (10 GSa/s ESR) for each channel, and a maximum record length of 500 Mpts/ch.

The SDS6000L series employs Siglent's SPO technology with a maximum waveform capture rate of up to 170,000 wfm/ s (normal mode, up to 750,000 wfm/s in Sequence mode), 256-level intensity grading display function plus a color temperature display mode. It also employs an innovative digital trigger system with high sensitivity and low jitter. The trigger system supports multiple powerful triggering modes including serial bus triggering. Tools such as History waveform recording, Search and Navigate functions, Mask Test, Power Analysis and Eye/ Jitter Analysis allow for extended waveform records to be captured, stored and analyzed. An impressive array of measurement and math capabilities, options for a 25 MHz arbitrary waveform generator, and serial decoding are also features of the SDS6000L. Combined with a 64-channel synchronization distributor (SYN64), multiple SDS6000L modules can be organized as a high-speed acquisition system with up to 512 channels. A complete SCPI command set over the standard 1000M LAN connection provides very fast data acquisition to speed automated test applications.

  • 8 analog channels + 1 external trigger. Designed for expansion. Combine multiple units for a high-speed acquisition system with up to 512 channels.
  • Up to 500MHz bandwidth with 5 GSa/s (10 GSa/s ESR) sample rate at each channe.
  • Low background noise, supports 0.5 mV/div to 10 V/div vertical scales.
  • SPO technology
    - Waveform capture rates up to 170,000 wfm/s (normal mode), and 750,000 wfm/s (sequence mode)
    - Supports 256-level intensity grading and color temperature display modes
    - 500 Mpts Record length in total for all 4 channels
    - Digital trigger system
  • Intelligent trigger: Edge, Slope, Pulse, Window, Runt, Interval, Dropout, Pattern, Qualified, Nth edge, Setup / hold, Delay and Video (HDTV supported). Zone Trigger simplifies advanced triggering.
  • Serial bus triggering and decoder, supports protocols I2C, SPI, UART, CAN, LIN, CAN FD, FlexRay, I2S, MIL-STD-1553B, SENT and Manchester
  • Segmented acquisition (Sequence) mode, dividing the maximum record length into multiple segments (up to 80,000), according to trigger conditions set by the user, with a very small dead time between segments to capture the qualifying event.
  • History waveform record (History) function, the maximum recorded waveform length is 80,000 frames.
  • Automatic measurements on 50+ parameters, supports statistics with histogram, track, trend, Gating measurement, and measurements on Math, History, Memory and Ref.
  • 4 Math traces (8 Mpts FFT, addition, subtraction, multiplication, division, integration, differential, square root, etc.), supports formula editor.
  • Abundant data analysis functions such as Search, Navigate, Digital Voltmeter, Counter, Waveform Histogram, Power Analysis and Eye/Jitter Analysis.
  • 16 digital channels (optional).
  • 25 MHz function / arbitrary waveform generator, built-in multiple predefined waveforms.
  • Interfaces include: 4x USB Hosts, USB Device (USBTMC), 1000M LAN VXI-11/ Telnet/ Socket), micro SD card, Pass/Fail, Trigger Out, HDMI, 10MHz In, 10MHz Out.
  • Built-in web server supports remote control over the LAN port using a web browser. Supports SCPI remote control commands. Supports external mouse and keyboard.
Win a Generac Generator when purchasing $750 or more from Transcat.Win a Generac Generator when purchasing $750 or more from Transcat.
  1. Siglent SYN64 64 synchronous module
    Siglent SYN64
    64 synchronous module

    Order #: SYN64

    Mfg #: SYN64

    Availability: Ships in 3-4 weeks
    $13,972.00

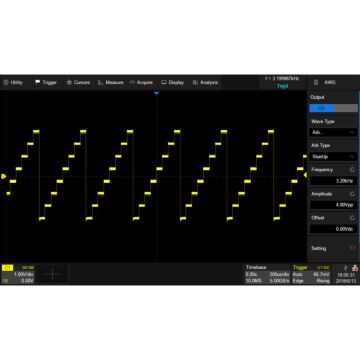

  2. Siglent SDS6000L-FG 25 MHz Function/Arbitrary Waveform Generator
    Siglent SDS6000L-FG
    25 MHz Function/Arbitrary Waveform Generator

    Order #: SDS6000L-FG

    Mfg #: SDS6000L-FG

    Availability: Ships in 3-4 weeks
    $733.60
  3. Siglent SDS6000L-16LA MSO function software, 16-channel, 500 MSa/s, 14 Mpts
    Siglent SDS6000L-16LA
    MSO function software, 16-channel, 500 MSa/s, 14 Mpts

    Order #: SDS6000L-16LA

    Mfg #: SDS6000L-16LA

    Availability: Ships in 3-4 weeks
    $740.60

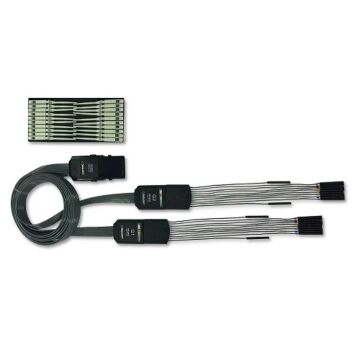

  4. Siglent SPL2016
    Siglent SPL2016
    Logic Probe,16-channel,500MSa/s

    Order #: SPL2016

    Mfg #: SPL2016

    Availability: Ships in 3-4 weeks
    $665.00

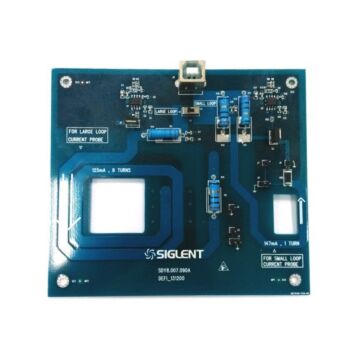

  5. Siglent DF2001A Deskew fixture for voltage and current probes
    Siglent DF2001A
    Deskew Fixture for Voltage and Current Probes

    Order #: DF2001A

    Mfg #: DF2001A

    Availability: Ships in 3-4 weeks
    $371.00

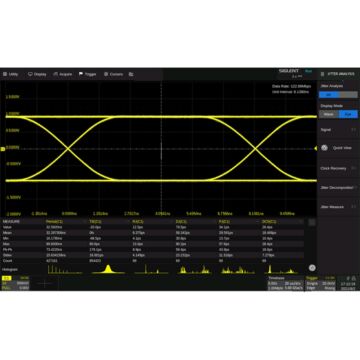

  6. Siglent SDS6000L-EJ Eye Diagram/Jitter Analysis (software)
    Siglent SDS6000L-EJ
    Eye Diagram/Jitter Analysis (software)

    Order #: SDS6000L-EJ

    Mfg #: SDS6000L-EJ

    Availability: Ships in 3-4 weeks
    $1,398.60

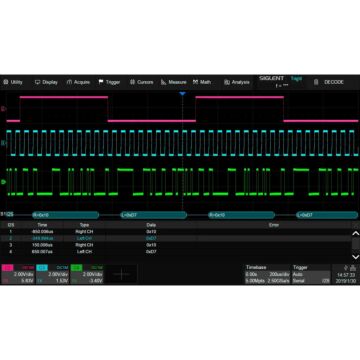

  7. Siglent SDS6000L-I2S I2S trigger & decode (software)
    Siglent SDS6000L-I2S
    I2S trigger & decode (software)

    Order #: SDS6000L-I2S

    Mfg #: SDS6000L-I2S

    Availability: Ships in 3-4 weeks
    $698.60

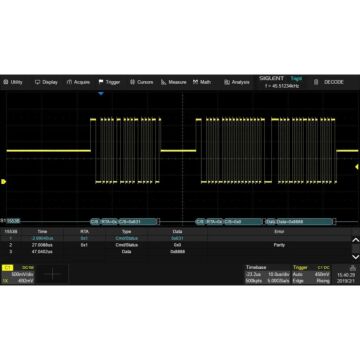

  8. Siglent SDS6000L-1553B MIL-STD-1553B trigger & decode (software)
    Siglent SDS6000L-1553B
    MIL-STD-1553B trigger & decode (software)

    Order #: SDS6000L-1553B

    Mfg #: SDS6000L-1553B

    Availability: Ships in 3-4 weeks
    $698.60
  9. Siglent SDS6000L-FLEXRAY FlexRay trigger & decode (software)
    Siglent SDS6000L-FLEXRAY
    FlexRay trigger & decode (software)

    Order #: SDS6000L-FLEXRAY

    Mfg #: SDS6000L-FLEXRAY

    Availability: Ships in 3-4 weeks
    $698.60

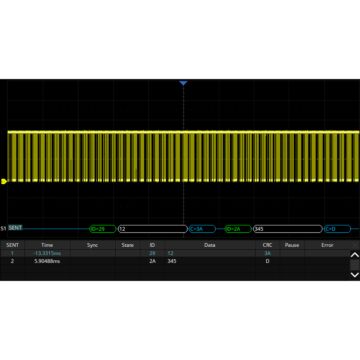

  10. Siglent SDS6000L-SENT SENT trigger & decode (software)
