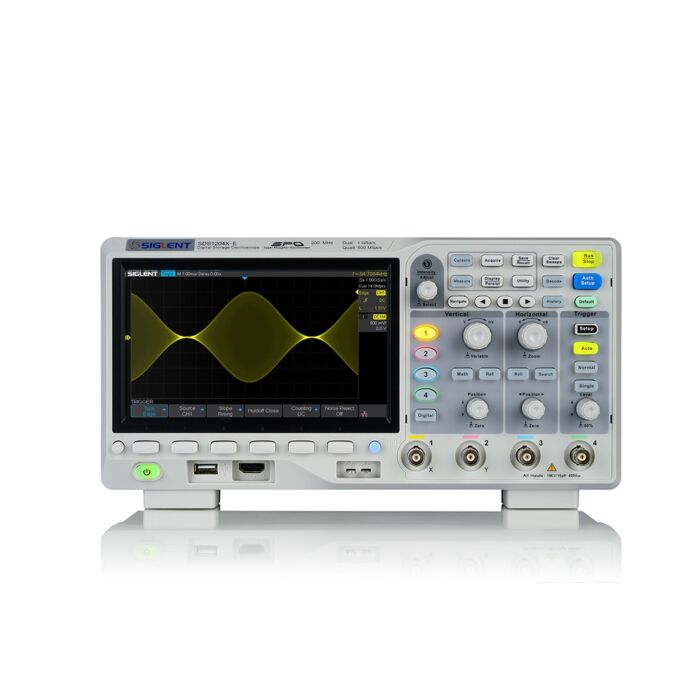

Siglent SDS1104X-E

Product Highlights

The SDS1000X-E series employs a new generation of SPO (Super -Phosphor Oscilloscope) technology that provides excellent signal fidelity and performance. The system noise is also lower than similar products in the industry. It comes with a minimum vertical input range of 500 uV/div, an innovative digital trigger system with high sensitivity and low jitter, and a waveform capture rate of 400,000 frames/sec (sequence mode). The SDS1000X-E also employs a 256-level intensity grading display function and a color temperature display mode not found in other models in this class. SIGLENT's latest oscilloscope offering supports multiple powerful triggering modes including serial bus triggering. Serial bus decoding for IIC, SPI, UART, CAN, LIN bus types is included. The X-E models also include History waveform recording, and sequential triggering that enable extended waveform recording and analysis. Another powerful addition is the new 1 million point FFT math function that gives the SDS1000X-E very high frequency resolution when observing signal spectra. The new digital design also includes a hardware co-processor that delivers measurements quickly and accurately without slowing acquisition and front-panel response. The features and performance of SIGLENT's new SDS1000X-E cannot be matched anywhere else in this price class.

• 100 MHz
• 4 channels
• Probe (Std): 4 pcs passive probe PP510
• Display: 7 inch TFT-LCD (800x480)
• Waveform capture rate up to 100,000 wfm/s (normal mode) and 400,000 wfm/s (sequence mode)
• Supports 256-level intensity grading and color display modes Record length up to 14 Mpts
• Digital trigger system
• Intelligent trigger: Edge, Slope, Pulse Width, Window, Runt, Interval, Time out (Dropout), Pattern
• Serial bus triggering and decoding (Standard), supports protocols IIC, SPI, UART, RS232, CAN, LIN
• Video trigger, supports HDTV
• Low background noise with voltage scales from 500 μV/div to 10 V/div
• 10 types of one-button shortcuts, supports Auto Setup, Default, Cursors, Measure, Roll, History, Display/Persist, Clear Sweep, Zoom and Print
• Segmented acquisition (Sequence) mode, divides the maximum record length into multiple segments (up to 80,000), according to trigger conditions set by the user, with a very small dead time segment to capture the qualifying event
• History waveform record (History) function, maximum recorded waveform length is 80,000 frames
• Automatic measurement function for 38 parameters as well as Measurement Statistics, Zoom, Gating, Math, History and Reference functions
• 1 Mpts FFT
• Math and measurement functions use all sampled data points (up to 14 Mpts)
• Math functions (FFT, addition, subtraction, multiplication,division, integration, differential, square root)
• Preset key can be customized for user settings or factory "defaults"
• Security Erase mode
• High Speed hardware based Pass/ Fail function
