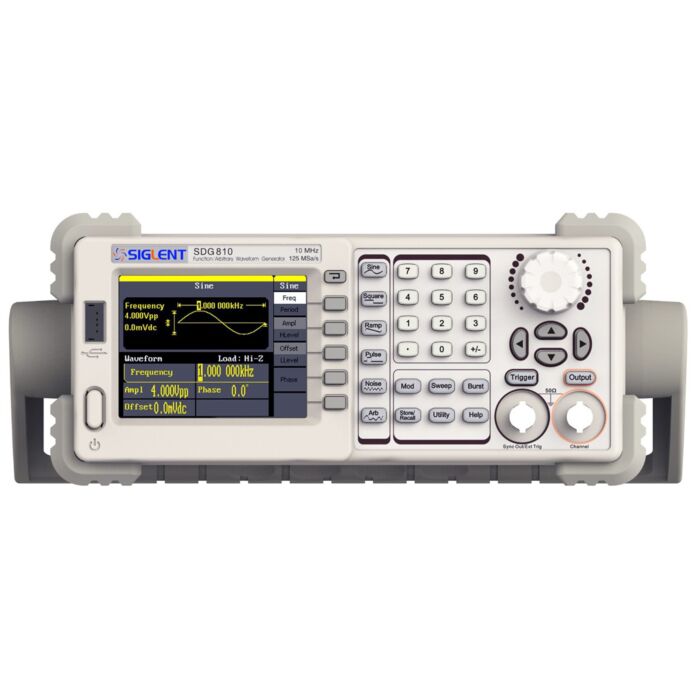

Siglent SDG810

Product Highlights

• The SDG800 series function/arbitrary waveform generator family output frequencies up to 5MHz (pulse), 10MHz (square), 30MHz (sine) and have a sampling rate of 125MSa/s. They use the SIGLENT EasyPulse technology which produces low jitter, fast rising/falling edges without being affected by frequency, even at low duty cycle settings, allowing the user a wide range of pulse widths and transition times. This results in a much more versatile generator than other similar DDS designs.
• Advanced DDS technology,125MSa/s sampling rate, 14bit vertical resolution
• Single channel output, 5 kinds of standard waveforms, built-in 46 kinds of arbitrary waveforms (including DC)
• Complete modulation functions: AM, DSB-AM,FM, PM, FSK, ASK, PWM, linear/logarithmic sweep and burst
• Innovative EasyPulse technology, can output pulse of low jitter, quick rising/falling edge
• Standard interfaces: USB Device, USB Host, support U-Disk storage and software update
• Provide 10 nonvolatile storage spaces for user's arbitrary waveforms
• Be capable of seamlessly connected to SIGLENT Digital Storage Oscilloscope
• Configurable with powerful arbitrary waveform editing software EasyWave
• 10MHz
• 125M Sa/s
• 14bit
• 16Kpts
• 10ch
