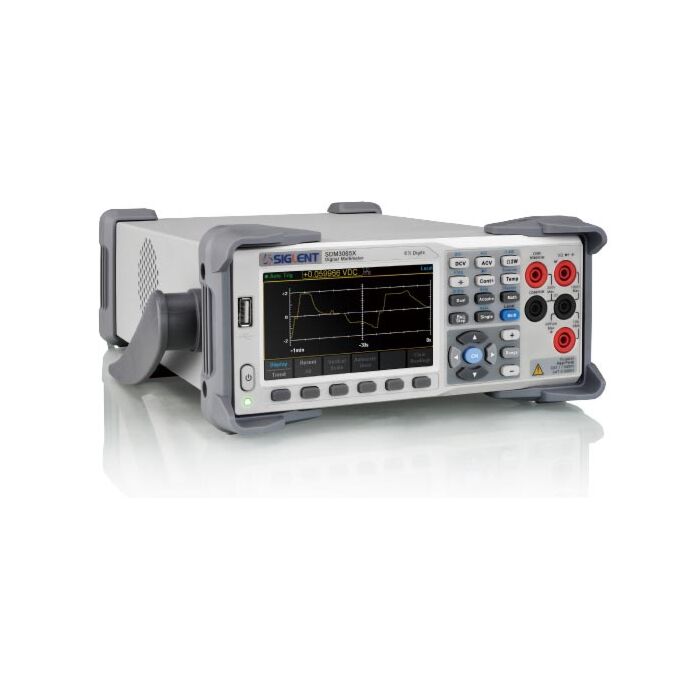

Siglent SDM3065X
6.5 digit Digital Multimeter w/dual display

Order #: SDM3065X

Mfg #: SDM3065X

Questions about availability or need help? Contact Us:

(800) 633-0561
$1,043.00

Siglent SDM3065X

6.5 digit Digital Multimeter w/dual display

Order #: SDM3065X

Mfg #: SDM3065X

$1,043.00
Availability: Ships in 3-4 weeks

Product Highlights

  • 4.3” TFT-LCD, 480*272
  • Real 6½ digits readings resolution (2,200,000 counts)
  • 1Gb Nand flash size, Mass storage configuration files and data files
  • True-RMS AC Voltage and AC Current measuring
  • Support double display, Chinese and English Menu
  • File management (support for U-disc and local storage)
  • Built-in cold terminal compensation for thermocouple
  • With easy, convenient and flexible any sensor measurement control software: EasyDMM
  • Standard interface: USB Device, USB Host, LAN (Optional Accessories: GPIB and Scanner Card)
  • Built-in help system makes information acquisition more easier
  • Support remote control via commands and compatible with commands of main stream multimeters
  • Main Function:
    • DC Voltage: 200 mV ~ 1000 V
    • DC Current: 200 μA ~ 10 A
    • AC Voltage: True-RMS, 200 mV ~ 750 V
    • AC Current: True-RMS, 200 μA ~ 10 A
    • 2/4-Wire Resistance: 200Ω ~ 100 MΩ
    • Capacitance: 2 nF ~ 100 mF
    • Continuity Test: Range is fixed at 2 kΩ
    • Diode Test: Adjustable range is 0 ~ 4V.
    • Frequency Measurement: 3 Hz ~ 1 MHz
    • Period Measurement: 1 μs ~ 333.33 ms
    • Temperature: Support for TC and RTD sensor
  • Math Function:
    • Max, Min, Average, Standard Deviation,dBm/dB, Relative Measurement ,Pass/Fail Histogram, Trend Chart, Bar Meter, etc.
  • Application fields:
    • Research Laboratory
    • Development Laboratory
    • Detection and Maintenance
    • Calibration Laboratory
    • Automatic Production Test

Each Unit Includes

  • A Power Cord that fits the standard of destination country
  • Two Test Leads, Two Alligator Clips
  • A USB Cable
  • A Quick Start
  • A guaranty Card
  • A CD (including EasyDmm computer software system)
