RIGOL PVP2150

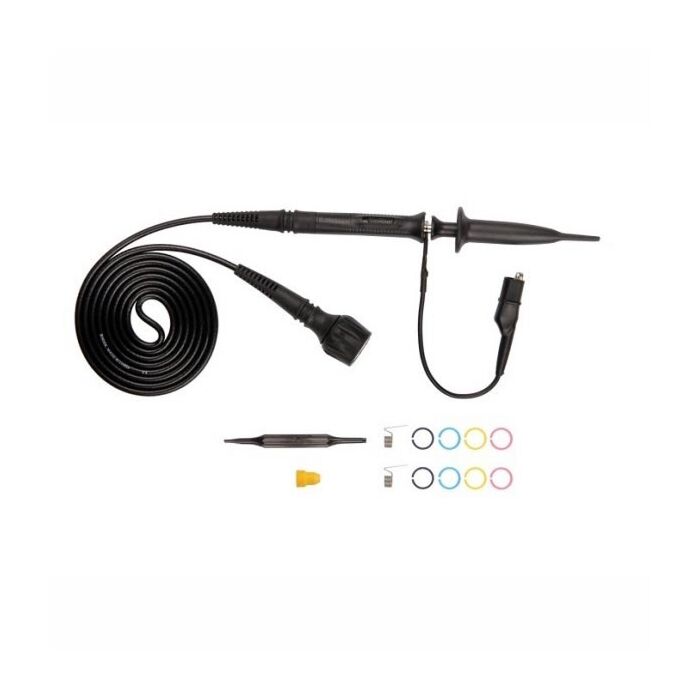

RIGOL PVP2150

150 MHz Passive Probe w/1x:10x selector,Bandwidth 35MHz in 1x

Order #: PVP2150

Mfg #: PVP2150

Questions about availability or need help? Contact Us:

(800) 633-0561 sales@transcat.com

$60.00

Qty

RIGOL PVP2150

150 MHz Passive Probe w/1x:10x selector,Bandwidth 35MHz in 1x

Order #: PVP2150

Mfg #: PVP2150

Skip to the end of the images gallery

Skip to the beginning of the images gallery

$60.00

Register to view exclusive member pricing

Availability: Ships in 3-4 weeks

Product Overview

Product Highlights

PVP2150: 1X/35MHz, 10X/150MHz, one/two Probes Kit
10X or 1X Switchable
10 pF to 25 pF Compensation Range
1X: 1MΩ ±1% input resistance 50 pF ±20 pF input capacitance 150 VRMS CAT II max. rated input voltage
10X: 10MΩ ±1% input resistance 10pF ±5pF input capacitance 300 VRMS CAT II max. rated input voltage
New Design in appearance brings you perfect user experience

Rigol PVP2150 Specifications
Electrical Specifications
Bandwidth	1X: DC to 35 MHz 10X: DC to 150 MHz
Input Resistance	1X: 1 MΩ ± 1% @ DC 10X: 10 MΩ ± 1% @ DC
Rise Time	1X: 10 ns 10X: 2.3 ns
Input Capacitance	1X: 50 pF ± 20 pF 10X: 10 pF ± 5 pF
Attenuation Ratio	10:1 or 1:1 Switchable
Max. Rated Input Voltage	1X: 150 V RMSCAT II 10X: 300 V RMSCAT II
Compensation Range	10 pF to 25 pF
Mechanical Characteristics
Weight (probe only)	About 40 g
Cable Length	120 ± 2 cm
Probe Tip Diameter	4.6 mm
Environmental Specifications
Temperature	Operating: 0°C to +50°C Nonoperating: -20°C to +70°C
Altitude	Operating: 2,000 m Nonoperating: 15,000 m
Max. Relative Humidity	80% relative humidity for temperature up to +31°C, decreasing linearly to 40% relative humidity at +50°C
Pollution Degree	Pollution Degree 2
