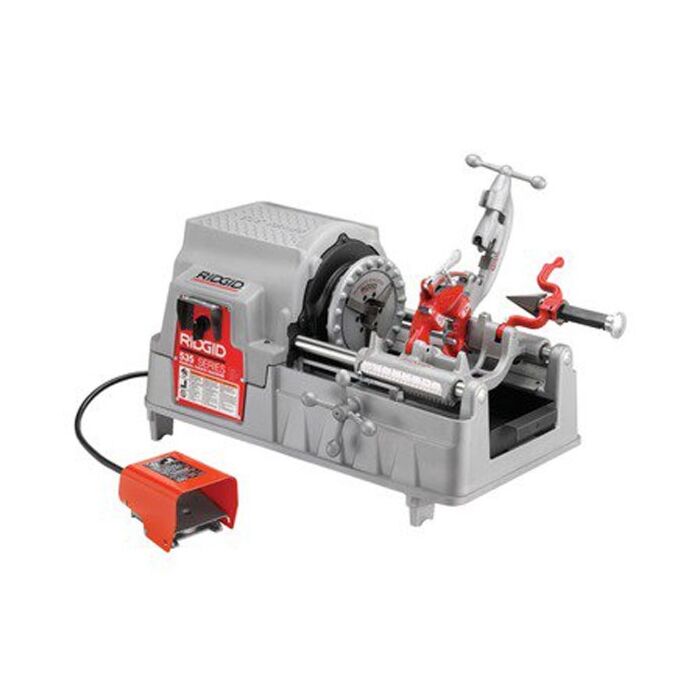

Ridgid Tools 96507
535M Pipe Threader,230V 36 RPM, "-2"NPT
Order #: 96507
Mfg #: 96507
$13,053.11
Ridgid Tools 96507
535M Pipe Threader,230V 36 RPM, "-2"NPT
Order #: 96507
Mfg #: 96507
$13,053.11
The Model 535 maintains the ruggedness of the industry workhorse while adding the features that makes the threading operation more productive. A large chip tray and oil reservoir makes the 535 ideal for longer uninterrupted threading.
Availability: Ships in 3-4 weeks
Product Highlights
- Large 1.75 gallon (6.6 L) oil tray.
- Large chip tray.
- Generous top cover for keeping tools and fittings handy.
- High clearance carriage makes threading easier.
- Speed chuck with rocker-action jaws centers and grips work piece instantly.
- Can be used with geared Models 141 and 161 threaders.
- Uses Model 811A quick-opening die heads.
- Length gauge for quick, accurate cut-off.
- Pipe Capacity 1/8"-2" (3mm-50mm) 2 1/2"-4" (62mm-100mm), 4"-6" (100mm-150mm) with 141 and 161 geared threaders.
- Bolt Capacity 1/4"-2" (6mm-50mm).
- Switches Forward/off/reverse and integral foot switch.
- Chuck Speed Chuck™ with three replaceable rocker-action jaw inserts.
- Rear Centering Device Cam-action, turns with chuck.
- Reamer 5-flute cone, RH, 1/8"-2" (3mm-50mm).
- Oil Pump Self-priming gerotor oil pump.
- Reamers RH/LH combination reamer available.
- 1/2" - 2" NPT Hammer Chuck Machine
- 36 RPM
- 230 Voltage
- Frequency 50 - 60
- Phase 1
- Universal
- 7.5 Amp Draw
- 1/2 HP
- 260 lb.
