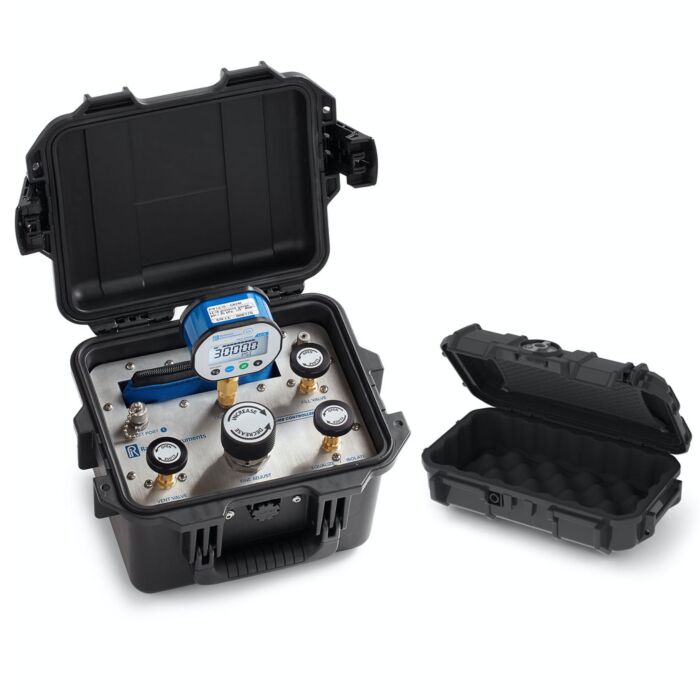

Ralston Instruments QTVC-EN-KIT3-GR ControlPak Pressure Controller, 3000 psi LC10 pressure gauge
ControlPak Pressure Controller, 3000 psi LC10 press gauge
Order #: QTVC-EN-KIT3-GR
Mfg #: QTVC-EN-KIT3-GR
$4,254.95
Ralston Instruments QTVC-EN-KIT3-GR ControlPak Pressure Controller, 3000 psi LC10 pressure gauge
ControlPak Pressure Controller, 3000 psi LC10 press gauge
Order #: QTVC-EN-KIT3-GR
Mfg #: QTVC-EN-KIT3-GR
Product Highlights
Perform both ultra-precise low pressure differential or high pressure static pressure calibrations with nitrogen using the same device with an external pressure calibrator
- Pressure Controller: ControlPak Manual Pressure Controller
- Pressure Reference: LC10 pressure gauge, 3000 psi / 200 bar / 20 MPa, 1/4" Male NPT bottom connection
- Reference Connection: 1/4" female NPT x female Quick-test, no check-valve, brass
- Hose: Quick-test 6900 psi hose, brass hose ends, 6 ft (1.83 m) long
- Hose: Quick-test 6900 psi hose, brass hose ends, 3 ft (92 cm) long
- Process Connection: 1/4" male NPT x male Quick-test, no check-valve, brass
- Process Connection: 1/4" male NPT x male Quick-test, no check-valve, brass
- Bag: Zippered bag to hold hose and adapters, nylon
- Gauge Carrying Case: LC10 or LC20 Pressure Gauge Case
| Media Compatibility | Air, Inert Gas |
|---|---|
| Inlet Port | Male Quick-test |
| Outlet Port | Male Quick-test |
| Max Pressure | 3000 PSI / 200 bar / 20 MPa |
| Max Vacuum | 10 InHg / 33.9 kPa |
| Materials | ABS Plastic, Anodized Aluminum, Brass, Plated Steel, Stainless Steel |
| Seal Materials | Buna-N, Delrin, Teflon |
| Min Operating Temperature | 0 °F / -18 °C |
| Max Operating Temperature | 130 °F / 54 °C |
| Hose 1 | Quick-test Hose, Brass ends, 6ft / 1.9m long |
| Hose 2 | Quick-test Hose, Brass ends, 3ft / 0.9m long |
| Pressure Reference | None |
| Process Connection | None |
| Reference Connection | None |
| Country of origin | USA |
