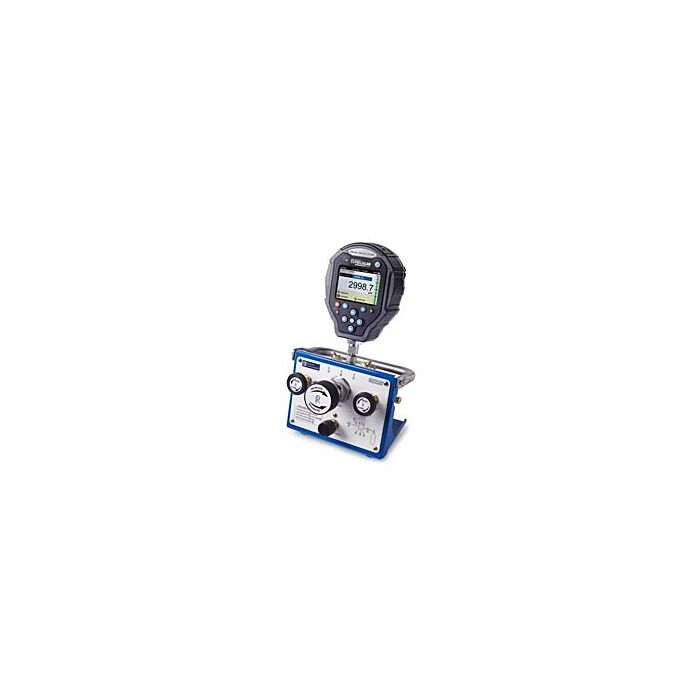

Ralston Instruments QTVC-3KPSIG-FL QTVC, 3KPSIG FieldLab Pressure Calibration Kit

Product Highlights

Connect to and calibrate both very low or high pressure instrumentation using included volume controller and pressure gauge.

• 3KPSIG
• Proprietary pressure balanced fine adjustment piston allows for extremely precise, finger-tip control of pressure at 0.03 psi (2 mbar) or 3000 psi (210 bar) or any range in between
• Fine adjust piston, fill, balance and vent valves are in one light weight, compact unit
• Includes handle, Quick-test System™ outlet connections, hoses and adapters
• Low volume Quick-test hose, gauge adapter and process connection can be attached to QTVC without thread sealant or a wrench
• Soft-seated valves make filling and venting the system very precise
• Included stand for laboratory or table top use (QTVC-LKIT)
• Optional padded strap for field use (NPAK-STRP)
• Made in U.S.A.

Each Unit Includes

• Controller - QTVC Assembly (QTVC)
• Hose 1 - Quick-test 6900 psi hose, S.S. hose ends, 6 ft (1.83 m) long (QSQS-HOS-6ft)
• Hose 2 - Quick-test 6900 psi hose, brass hose ends, 3 ft (92 cm) long (QTQT-HOS-3ft)
• Process Connection 1 - 1/4" male NPT x male Quick-test, no check-valve, brass (QTHA-2MB0)
• Process Connection 2 - 1/4" male NPT x male Quick-test, no check-valve, brass (QTHA-2MB0)
• Gauge - Pressure FieldLab, 3000 psi / 200 bar / 20 MPa, Female Quick-test bottom connection (FLP1-GR-QF)
