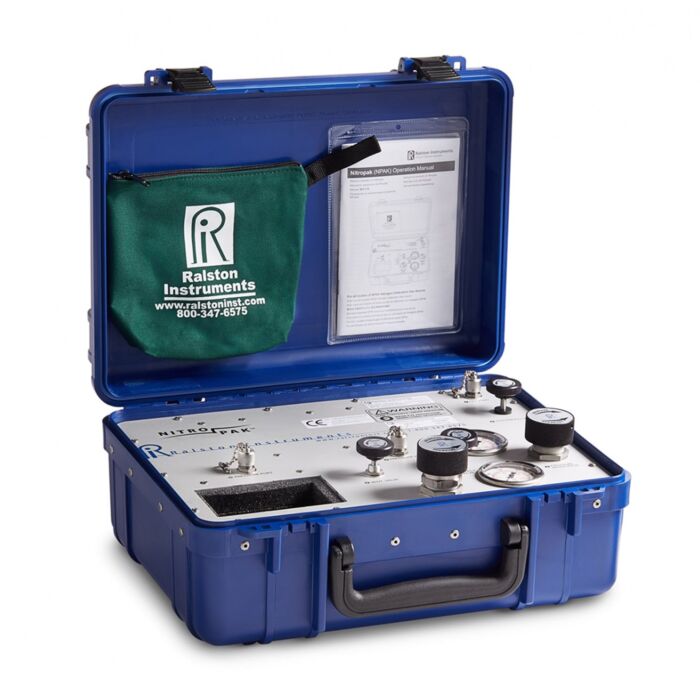

Ralston Instruments NPAK-2FBA-6-3 for Rent, Nitropak Nitrogen Pressure Source, 3K PSI, 1/4"NPT
Order #: NPAK-2FBA-6-3-RENT1
Mfg #: $43002FBA-6-3-RENT1
Product Highlights
This portable nitrogen pressure calibration kit provides a high pressure nitrogen source for calibrating differential and static pressure instrumentation using an external pressure calibrator. It includes an on-board storage cylinder, nitrogen pressure regulator and a precision volume controller for extremely fast and accurate pressure control. NitroPak users can easily reach each test point without pumping or leaky connections, up to 3,000 PSI/ 210 bar.
Compressed Gas on Hand
Fill it at the shop and have enough compressed gas for a day or more. It is easy to fill with the included hoses. Simply pressurize it until it is full, disconnect the hose, and your nitrogen pressure testing equipment is ready to go.
Organized and Easily Portable
Reminiscent of Wally Box pressure calibrators, the NitroPak includes storage for hoses, adapters and a pressure gauge. There is a bag to hold hoses and adapters and a pocket to hold a pressure gauge as well.
Excellent for Hazardous Locations
Because it has no electronics in it there are no issues with using it in North American Class 1, Division 1 or 2 locations, ATEX or IECEX Zone 0, 1 or 2 locations. It’s an ideal compressed gas solution in any environment.
Easy to Carry in Remote Locations
Great for remote locations. With a carbon fiber cylinder and ABS plastic case with ergonomic handle, the NitroPak is the nitrogen pressure test kit you can take with you wherever you need to go, from towers to areas far off road.
Allows you to Conduct both Differential and Static Calibrations in the Field
Use the fine adjust piston alone to create pressure up to 400 inH20 (400 mbar). Use the compressed gas from the internal cylinder to go to pressures from 400 inH20 to 3000 psi (200 bar).
The Ralston NitroPak takes the hard work out of field-based calibrations and provides an all-in-one, easy to use, pressure control solution.
- Pressure Source: Nitropak Portable Nitrogen Source
- Reference Connection: 1/4" female NPT x female Quick-test, no check-valve, brass
- Process Connection: 1/4" male NPT x male Quick-test, no check-valve, brass
- Hose 1: Quick-test 6900 psi hose, brass hose ends, 6 ft (1.83 m) long
- Hose 2: Quick-test 6900 psi hose, brass hose ends, 3 ft (92 cm) long
- Pressure Source: NPAK
- Max Pressure: 3000 PSI / 200 bar / 20 MPa
- Max Vacuum: 10 InHg / 33.9 kPa
- Min Operating Temperature: 0 °F / -18 °C
- Max Operating Temperature: 140 °F / 60 °C
- Pressure Media: Nitrogen, inert gas
- Fine Adjustment Resolution: .0005 PSI / 0.00 mbar / 0.00 kPa
- Fill Vent Valves: soft seated construction
- Mechanical Rotation: 42 turns (pressure balanced)
- Cylinder Capacity (compressed gas): 15.20 Cu Ft
- Overpressure Relief: 3300 PSI / 230 bar / 23 MPa
- Internal Connections: 1/8 in tubing (316 stainless steel)
- Harmonized Code: 9032.81.0060
- Country of origin: USA
- Materials: Anodized Aluminum, Brass, Powder Coated Steel, Stainless Steel, Zippered Nylon with Velcro, Delrin
- Inlet Port: Male Quick-test with cap and chain
- Media Compatibility: Air, Inert Gas, Natural Gas
- Outlet Port: Male Quick-test with cap and chain
- Seal Materials: Buna-N, Delrin, Teflon
- Cylinder Capacity (water): 122 Cu In
Each Unit Includes
- 1/4" female NPT x female Quick-test, no check-valve, brass Reference Connection QTHA-2FBA
- 1/4" male NPT x male Quick-test, no check-valve, brass(Qty 2) Process Connection QTHA-2MB0
- Quick-test 6900 psi hose, brass hose ends, 6 ft (1.83 m) long Hose 1 QTQT-HOS-6ft
- Quick-test 6900 psi hose, brass hose ends, 3 ft (92 cm) long Hose 2 QTQT-HOS-3ft
