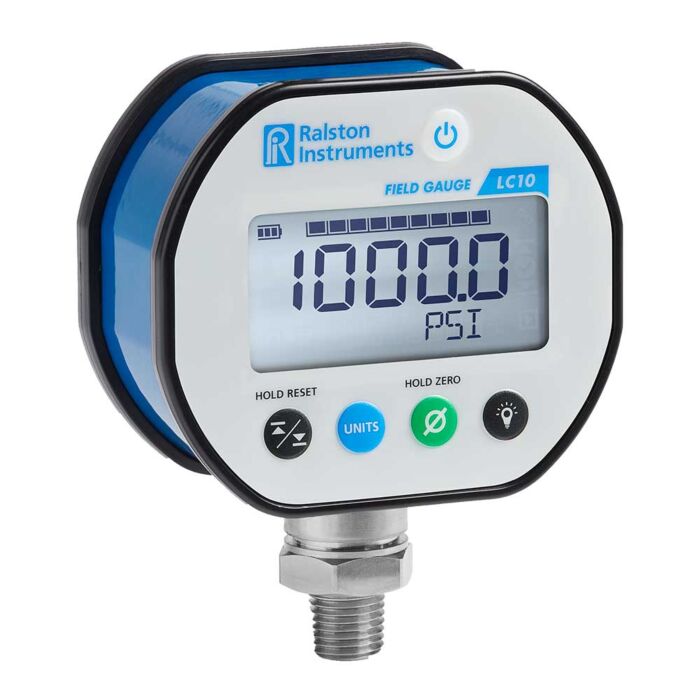

Ralston Instruments LC10 Digital Pressure Field Gauge

Product Highlights

The Digital Difference

An affordable pressure gauge with high-end features, the new Field Gauge LC10 line of digital pressure gauges was designed with the user in mind. They are compact, tough, and reliable with customization options to help you simplify your work and get the job done quickly and accurately.

Digital Pressure Gauge Applications

• Pressure calibration testing of process gauges
• Hydrostatic pressure leak testing
• Pressure monitoring and data logging

Digital Pressure Gauge Features

• Increased visibility - large, easy-to-read display with intuitive controls and bright backlight
• Exceptional durability - withstands abuse and cracking and is waterproof to 1 meter (IP67)
• Added customization - easily switch from among 15 standard engineering units with the option to add your own and remove unneeded units
• Quick, reliable Zero function using a single button
• Convenient High / Low function that allows the user to see the highest and lowest pressure reached
• USB connection to connect to calibration management software for live viewing of pressure, customization of engineering units, and calibration
• +/-0.25% full scale accuracy (ASME Grade 3A / ISO Class 0.25)
• Available in 11 pressure ranges from 5 psi / 35 kPa to 10,000 psi / 70 Mpa, a compound vacuum/pressure gauge from negative to positive 15 psi, and a digital vacuum gauge measuring up to 30 inHg / 760 mbar
• Made in the USA
