Norbar Torque Tools 180243.B06

Norbar Torque Tools 180243.B06

Order # 180243.B06 | Mfg # 180243.B06

Save 5%

$8,940.16

$8,493.14

Ships in 3-4 weeks

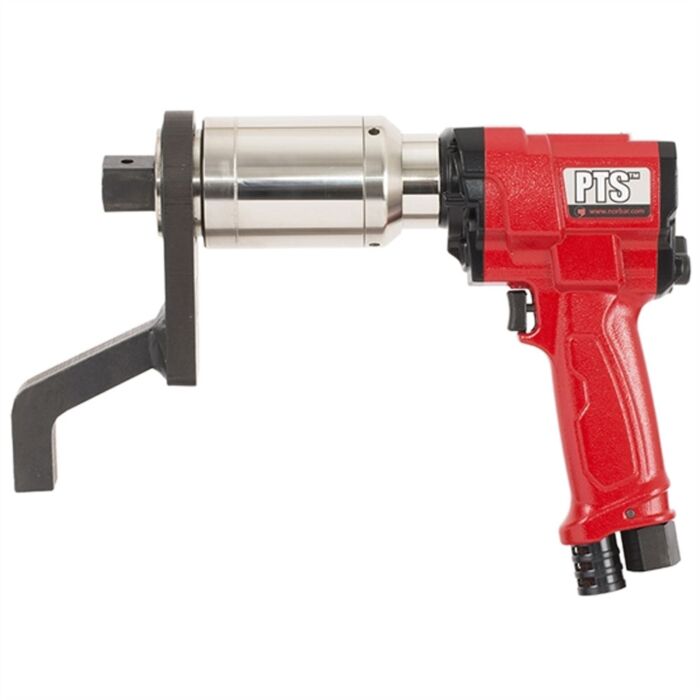

The PTS is the result of an extensive design project to produce an efficient air motor, purpose built for this application in an accurate torque tool. The new air motor is then married to Norbar's respected gearbox range, sharing common torque reaction accessories with PTM and EvoTorque® tools.

Tariff fees or manufacture imposed surcharges may be applicable.

Overview

Product Highlights

Accuracy: ±3%
Operates between: 200.0 - 1000.0 N·m 147.0 - 738.0 lbf·ft
Designed to offer excellent power-to-weight ratio
Up to 2.5kg weight saving compared with PT equivalents
Easily accessible switch for forward and reverse operation
±5% repeatability of reading from 20% to 100% of range
Air coupling designed for safety and rapid operation
Directional exhaust barrel directs exhaust away from operator
Replaceable square drive
Fast operation for rapid bolt rundown. Up to 60% faster than PT-72 model
Non impacting - low vibration levels for comfortable and safe use
Steel reactions supplied as standard. Bespoke reactions available
Very quiet operation - reducing the need for protection with sound pressure levels from 77dB(A) to 79dB(A)
Square Size: 3/4"
Max Air Pressure: 6.5 bar
Tool Weight: 6.24 kg
Reaction Plate Weight: 1.4 kg
Free Speed: 20.4 rpm
