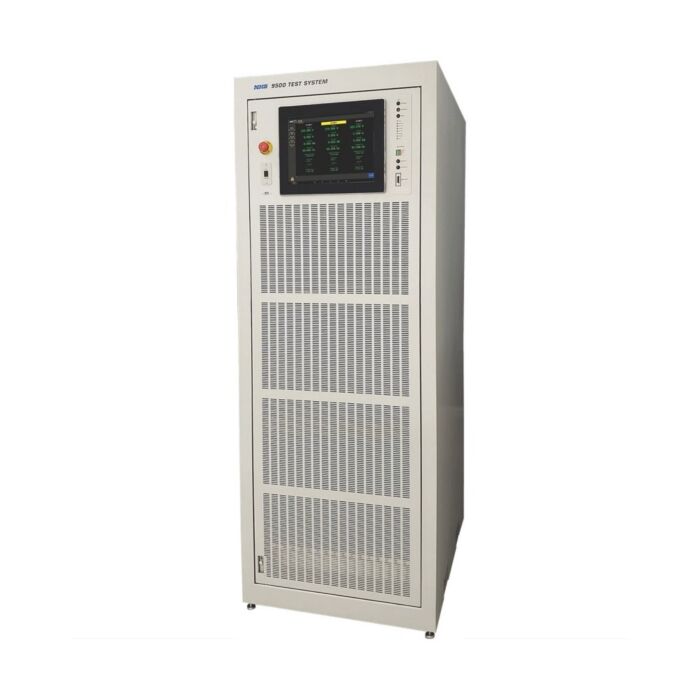

NH Research 9510-100 for Rent, AC Grid Simulator, 4-Quadrant, 100 kW
Order #: 9510-100-RENT2
Mfg #: 9510-100
Product Highlights
The NI Regenerative Grid Simulator System offers ultimate flexibility for testing high-power grid-tied applications, with programmable frequency, power scalability up to 1.2 MW, and versatile AC/DC output options. It returns greater than 85 percent of power to the facility.
Features
- 100 kW power modules, scalable to 1.2 MW
- Configured as regenerative AC/DC grid simulator or four-quadrant AC load
- Wide true power operating envelope (voltage and current)
- Galvanic isolation: output, channel to channel UUT
- Programmable three-phase, split-phase, or single-phase
- Highest power density with small footprint
- Regenerative AC/DC grid simulator and power amplifier optimized for PHIL application
- 350 Volts
- For IEEE 1547, IEC 62116, IEC 61000-4-11 & more!
- 50kW, 75kW, 100kW power modules
- Modular & scalable AC power from 100kW to 1.2MW
- AC Load option: Modules can be configured as Regenerative AC/DC Grid Simulator or 4-Q AC Load
- Multiple phase and DC capability covers all utility source and load requirements
- Programmable three-phase, split-phase, or single phase
- Powerful waveform synthesizer combined with high-resolution digitizer covers extensive test and evaluation requirements.
- Ideal for Regulation Testing Standards: UL 1741SA, IEEE 1547, IEC 62116, IEC 61000-4-11(pre-compliance), 4-13, 4-14, 4-28, etc.
The NH Research 9510 is a regenerative grid simulator that delivers modular & scalable power from 50kW up to 1.2MW. NHR 9510 grid simulators lead the industry in grid-tied test applications like solar PV, V2G, and energy storage systems, and feature a built-in power amplifier mode for Power Hardware in the Loop (PHIL). A regenerative AC/DC grid simulation system that can also be reconfigured as a 4-Q AC load, the NH Research 9510 features 50kW, 75kW, and 100kW power modules and is optimized for PHIL applications. The NH Research 9510 grid simulator offers programmable single, split, and three-phase operation; this, combined with its DC test capabilities, covers all utility source and load requirements. NHR 9510 simulators are ideal for fulfilling IEEE 1547, IEC 62116, IEC 61000-4-11(pre-compliance), 4-13, 4-14, 4-28, UL 1741SA, and more regulation test standards.
| Model Number | 9510-50 | 9510-75 | 9510-100 | 9510-200 | 9510-300 | 9510-400 | 9510-500 | 9510-1000 | 9510-1200 |
|---|---|---|---|---|---|---|---|---|---|
| Description | 50kW | 75kW | 100kW | (Only 100kW cabinet can support parallel expansion up to 1.2MW3) | |||||
| AC Output Ratings | |||||||||
| Operating Modes | 4-Quadrant with Programmable Voltage (CV), Power Amplifier (PHIL), Optional AC Load | ||||||||
| Output Configurations | Independent set per channel 3x 1Φ (AC or DC), 2Φ + 1Φ (AC or DC), or 3Φ AC outputs | ||||||||
| Power, Max (1Φ or 3Φ) | 50kW/ 118kVA |
75kW/ 177kVA |
100kW/ 236kVA |
200kW/ 472kVA |
300kW/ 708kVA |
400kW/ 945kVA |
500kW/ 1181kVA |
1000kW/ 2362kVA |
1200kW/ 2835kVA |
| Current Ranges (RMS per Φ) | 25, 112.5 A | 650, 168 A | 50, 225 A | 100, 450 A | 150, 675 A | 200, 900 A | 250, 1125 A | 500, 2250 A | 600, 2700 A |
| Current Ranges (RMS 1Φ Mode) | 75, 337.5A | 150, 506A | 150, 675A | 300, 1350A | 450, 2025A | 7600, 2700A | 750, 3375A | 1500, 6750A | 1800, 8100A |
| Frequency | 30 – 120Hz (10 mHz resolution) | ||||||||
| Voltage Ranges | 10 - 175, 10 - 350VRMS L-N (Split Phase 10-125, 20-250V Max) | ||||||||
| Voltage Accuracy | ± 0.1% F.S. | ||||||||
| Programming Resolution | 0.01V | ||||||||
| Load Regulation | ± 0.02% | ||||||||
| Distortion (THD)1 | 0.45% (Typical) 0.65% (Max) <70Hz no load to full load ; 0.6% (Typical) 0.85% (Max) >70Hz no load to full load | ||||||||
| Slew Rate | 1V/μS (10% to 90% measured at 90 degree turn-on into resistive load) | ||||||||
| Waveforms | Sine, n-Step Sine, Triangle, Clipped-Sine, Arbitrary (user defined) | ||||||||
| Phase Angle Control | 0 to 359 degrees/1 degree resolution | ||||||||
| DC Output Ratings | |||||||||
| Operating Modes | DC Constant Voltage (CV), Constant Current (CC), Constant Power (CP), Power Amplifier (PHIL), Optional DC Load | ||||||||
| Power Max (1ch or 3ch) | 50 kW | 75 kW | 100 kW | 200 kW | 300 kW | 400 kW | 500 kW | 1000 kW | 1200 kW |
| Current Ranges (Per Ch.) | 25, 100A | 50, 150A | 50, 200A | 100, 400A | 150, 600A | 200, 800A | 250, 1000A | 500, 2000A | 600, 2400A |
| Current Ranges (1 Ch.) | 75, 300A | 150, 450A | 150, 600A | 300, 1200A | 450, 2400A | 600, 2400A | 750, 3000A | 1500, 6000A | 1800, 7200A |
| Voltage Ranges |
10 - 200, 10 - 400 VDC |
||||||||
| Ripple | <400mV RMS (into resistive load) | ||||||||
| Power Amplifier Mode | |||||||||
| Control Method2 | Analog Input ±10V PK-PK amplified to ±247.5V PK-PK (low range) and ±495V PK-PK (high range) | ||||||||
| Latency (input-output) | 50 uS typical | ||||||||
| AC & DC Measurements | |||||||||
| Peak Voltage | 406V / 724V RMS | ||||||||
| Accuracy | 0.1% Reading + 0.1% F.S. (AC RMS or DC) | ||||||||
| Resolution | 0.005% F.S. | ||||||||
| Peak Current (per Ch.) | 167, 500A per channel | ||||||||
| Accuracy | 0.1% Reading + 0.1% F.S. (AC RMS or DC) | ||||||||
| Resolution | 0.005% F.S. | ||||||||
| Peak Power | 575V / 1050V Peak | ||||||||
| Accuracy (kW or kVA) | 0.1% Reading + 0.1% F.S. (AC RMS or DC) | ||||||||
| Resolution | 0.005% F.S. | ||||||||
| Add'l Measurements | Energy (Ah, kWh, kVAh), AC Crest Factor, AC Power Factor, True Power (P), Reactive Power (Q), Waveform Capture | ||||||||
| Physical | |||||||||
| Connectors | 2 x ½”inch stud terminals per channel (Total of six) + Ground | ||||||||
| Cabinet Dimensions (HxWxD) | 78” x 28” x 39″ / 1980mm x 712mm x 990mm | ||||||||
| Cabinet Weight | 1000lbs/454kg for 50kW cabinet; 1200lbs/545kg (for 75kW and 100kW cabinet) | ||||||||
| Operating Temperature | 5 - 35°C (up to 95% RH non-condensing) | ||||||||
| 1 Refer to the gain / frequency graph , 2 THD is tested based on output 480VL-L (277 VL-N) with resistive load, 3 Only 100kW cabinet can support parallel expansion; 50kW for standalone operation only. | |||||||||
| * The above specifications show typical configurations & subject to change. See data sheet for full product specifications. Contact NH Research, Inc. for further information. | |||||||||
