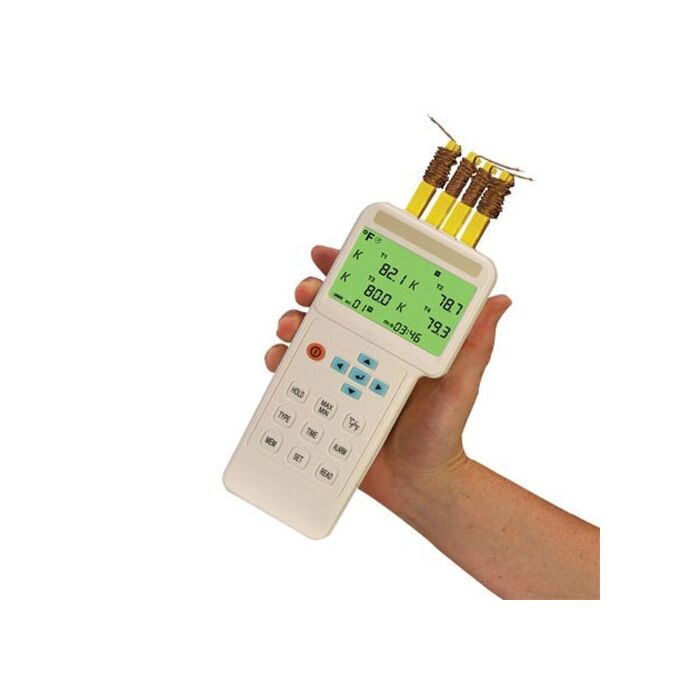

Newport Electronics HH1384

4-Channel Datalogger

Order #: HH1384

Mfg #: HH1384

$671.45

Availability: Ships in 3-4 weeks

Isolated Input Protection of 350 Vp-p Between any Two Inputs
Highly Accurate Thermometer with Thermocouple K, J, E, T, R, S, N, L, U, B, C Types
USB Interface with Windows® Software
4 Input Function T1/T2/T3/ T4 Temperature Display
Programmable Hi–Lo Alarm for 4 Inputs
Display MAX, MIN and MAX–MIN Values of 4 Inputs
Independent Input Set-Up (Type of Thermocouple, Hi–Lo Alarm Values)
Memory and Read Function (99 Sets) 512 KB Auto Data Logging Capacity
Power Supply: 6 "AA" batteries (included) or DC 9V AC adaptor
Battery Life: Approx. 55 hours (alkaline battery)
Auto Power Off: 5, 15 or 30 minutes (if no key is pressed)
Low Battery Indicator: The indicator is displayed when the battery voltage drops below the operating voltage
Measurement Rate: One time per 2 seconds
Weight: 405 g (14.3 oz) (batteries included)
Dimension: 185 L × 73 W × 53 mm D (7.3 × 2.9 × 2.1")
Operating Temperature: 0 to 50ºC (32 to 122ºF)
Humidity: Below 80% RH
Storage Temperature: -10 to 60ºC(14 to 140ºF)
Humidity: Below 70% RH
Temperature Coefficient: 0.01% of reading ±0.1°C per °C (0.2°F per °F) outside the specified 18 to 28°C (64 to 82ºF)
Windows Compatibility: Up to Windows 8
