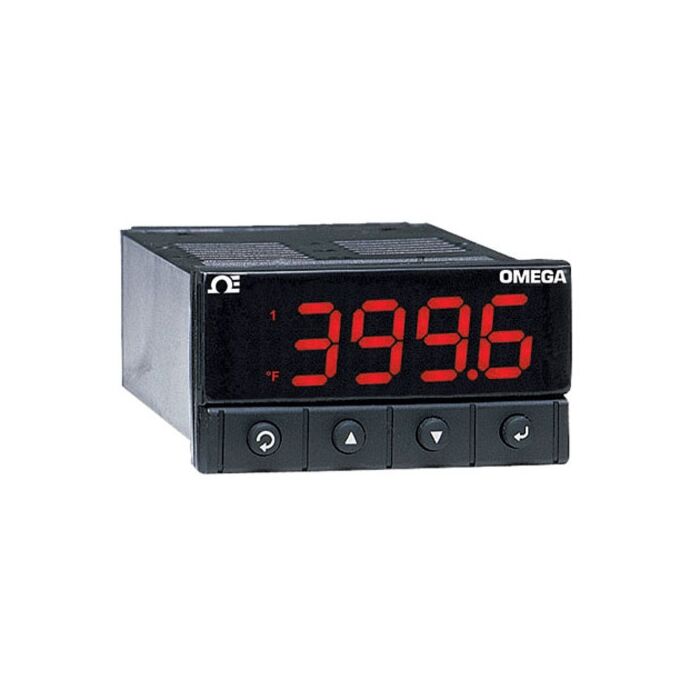

Omega Engineering CNI3252-C24-DC
I/32 Temp/Proc.Controller
Order #: CNI3252-C24-DC
Mfg #: CNI3252-C24-DC
Omega Engineering CNI3252-C24-DC
I/32 Temp/Proc.Controller
Order #: CNI3252-C24-DC
Mfg #: CNI3252-C24-DC
The OMEGA® CNi32 is the iSeries controller in the extremely compact and increasingly popular 1/32 DIN size (22.5 x 45 mm cutout). The CNi32 is the most sophisticated and accurate instrument available in the small 1/32 DIN package, yet is still easy to configure.
Availability: Ships in 3-4 weeks
Product Highlights
- 1/32 DIN Temp/Process Controller Input Type
- One Analog Output and one Solid State Relay Control Outputs
- Isolated RS232 and RS485 300 to 19.2 k baud Serial Communications
- Low Voltage Power (12 to 36 Vdc 24 Vac) Power Supply
- High Accuracy: ±0.03% Reading, 0.5°C (±0.9°F)
- Totally Programmable Color Displays
- User-Friendly, Simple to Configure
- Free Software
- Full Autotune PID Control
- Universal Inputs: Thermocouple RTD, Process Voltage/ Current, Strain
- RS232 and RS485 Serial Communications (Optional)
- Built-in Excitation
- Temperature Stability ±0.04°C/°C RTD and ±0.05°C/°C TC @ 25°C (77°F)
- NEMA 4 (IP65) Front Bezel
- 2 Control or Alarm Outputs Optional: DC Pulse, Solid State Relays, Mechanical Relays, Analog Voltage and Current
- Front Removable and Plug Connectors
- UL and cUL Certified
- FM Approval for Temperature Unit
