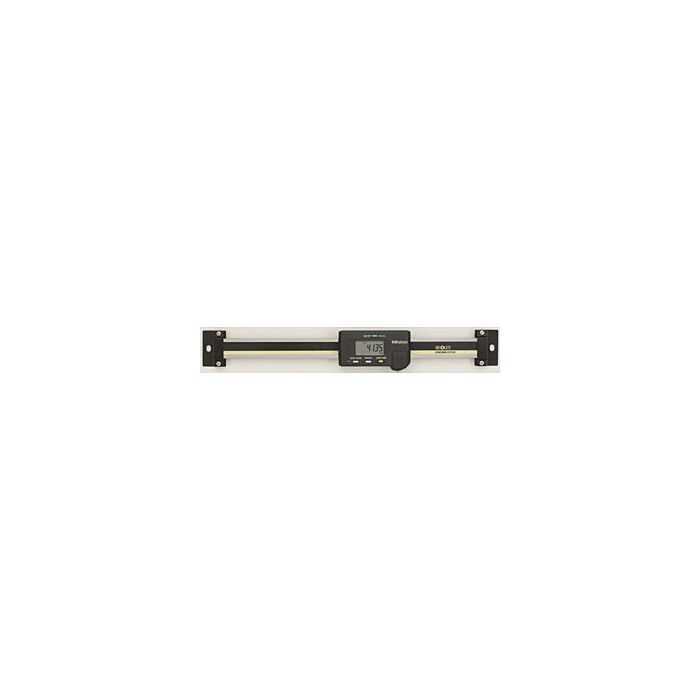

Mitutoyo 572-310-10

4" Digimatic Scale

Order #: 572-310-10

Mfg #: 572-310-10

Special Price $396.34 Regular Price $417.20

Availability: Ships in 3-4 weeks

New Purchase Calibration

None

Calibration without Data + $90.20

Calibration with Data + $116.19

Accredited Calibration with Data and Uncertainties + $155.94

Add Calibration

Qty

This product is available for shipping to the United States, Canada, and Puerto Rico only.

Range - 0-4in 0-100mm
Type - Vertical
Accuracy - .001in
Resolution - .0005in 0.01mm
The ORIGIN key allows setting of an absolute zero point to be used as reference in subsequent measurements Once set, the ABS Digimatic Scale Unit is ready to show its true position whenever turned on rather than 0.00” as with standard models
The ZERO/ABS key allows the display to be zero-set at any slider position along the beam for incremental comparison measurements - This key will also allow return to the absolute coordinate with a display of the true position from the origin point
No rack, no pinion, no glass scale. Digimatic Scale Unit is safely embedded in the hardened stainless steel blade
Horizontal or vertical face according to the scale mounting direction
Special type that is provided with diameter displaying function is available for lathes
All units come with two mounting brackets, each located at either end of the scale
With SPC data output
Resolution: 0.01mm or .0005"/0.01mm
Display: LCD
Length standard: ABSOLUTE electrostatic capacitance type linear encoder
Max. response speed: Unlimited
Battery: SR44 (1 pc.), 938882
Battery life: Approx. 3.5 years under normal use
