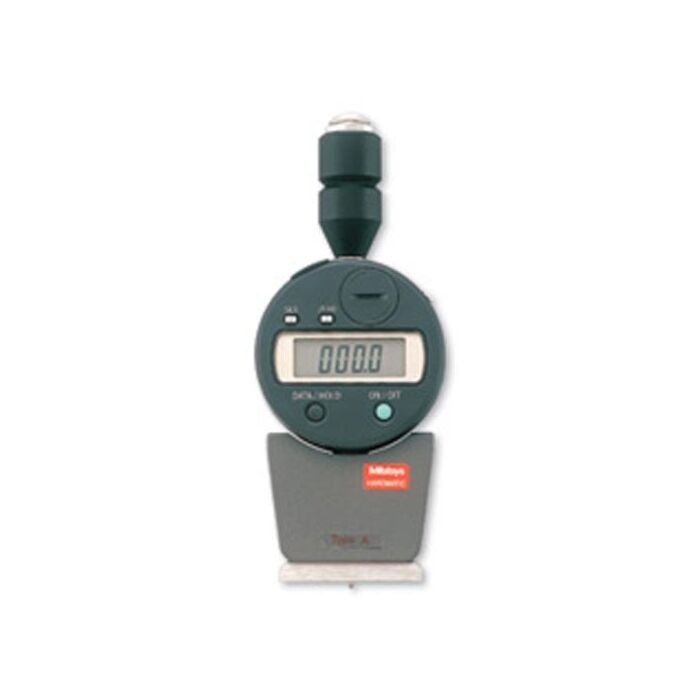

Mitutoyo 811-336-11

Digital Durometer

Order #: 811-336-11

Mfg #: 811-336-11

Special Price $1,975.68 Regular Price $2,058.00

Availability: Ships in 3-4 weeks

New Purchase Calibration

None

Calibration without Data + $336.34

Calibration with Data + $464.76

Accredited Calibration with Data and Uncertainties + $640.57

Add Calibration

Qty

Designed in accordance with the ASTM D 2240, ISO868, ISO 7619, DIN 53 505, JIS K 6253, and JIS K 7215 specifications.
Units are available in both Shore A and Shore D scales, and will test a wide variety of applications.
The Digital Durometer is provided with data hold function, permitting the operator to make an error-free reading on the LCD screen.
The Dial Durometer is provided with a peak retaining hand for error-free reading
Scale Shore A
Indenter Blunt taper (Tip diameter: 0.79mm)
Tip Angle 35°±0.25°
Digital: Data hold, Zero -setting, SPC output, Power ON/OFF (Power supply: SR44 x 1pc.) Analog Durometer: Peak retaining hand
Type Compact
2.4x1.2x 5.9in 60x28.5x151mm
Mass 290g
