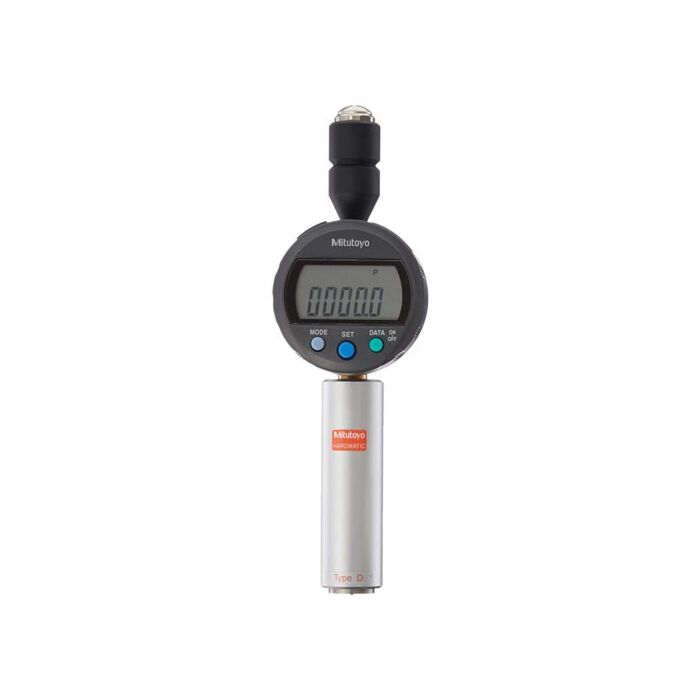

Mitutoyo 811-334-10

HH-334 Digital Durometer,Shore D

Order #: 811-334-10

Mfg #: 811-334-10

Special Price $1,975.68 Regular Price $2,058.00

Availability: Ships in 3-4 weeks

New Purchase Calibration

None

Calibration without Data + $339.39

Calibration with Data + $449.47

Accredited Calibration with Data and Uncertainties + $536.61

Add Calibration

Qty

Designed in accordance with the ASTM D 2240, ISO868, ISO 7619, DIN 53 505, JIS K 6253, and JIS K 7215 specifications.
Units are available in both Shore A and Shore D scales, and will test a wide variety of applications.
The Digital Durometer is provided with data hold function, permitting the operator to make an error-free reading on the LCD screen.
The Dial Durometer is provided with a peak retaining hand for error-free reading
Scale Shore D
Indenter Sharp point (Tip curvature: 0.1±0.01mm)
Tip Angle 30°±0.05°
Digital: Data hold, Zero -setting, SPC output, Power ON/OFF (Power supply: SR44 x 1pc.) Analog Durometer: Peak retaining hand
Long-leg
2.3x1.2x 7.6in 60x28.5x193mm
Mass 310g
