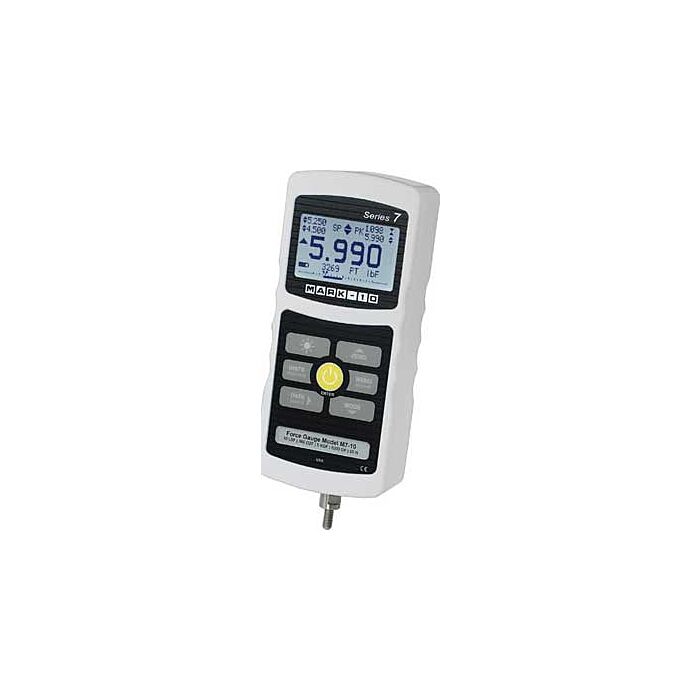

Mark-10 M7-100 Digital Force Gauge

Digital Force Gauge

Order #: M7-100

Mfg #: M7-100

Special Price $2,527.00 Regular Price $2,660.00

Availability:

In stock

New Purchase Calibration

None

Calibration without Data + $356.21

Calibration with Data + $489.22

Accredited Calibration with Data and Uncertainties + $622.22

Add Calibration

Qty

This item is available as RENTAL at

Call for price

Shop now

100 lb / 1600 oz / 50 kg / 50000 g / 500 N
Ultra High Speed 14,000 Hz Sampling Rate
Continuous Data Capture of up to 5,000 Data Points,
at up to 14,000 Hz, Downloadable to a PC
Individual Data Point Memory for up to 5,000 Data Points, Downloadable to a PC
USB, RS-232, Mitutoyo, and Analog Outputs
Programmable Footswitch Command String
1st / 2nd Peak Detection
Sample Break Detection with Auto Functions, Including Stopping Movement Of a Mark- 10 Test Stand
Automatic Output / Data Storage/ Zeroing Upon Various Event Completions
5 Units of Measurement, Plus Coefficient of Friction, and User-Defined Unit with Configurable Name
Programmable Set Points, with Indicators and Outputs
Averaging Mode - Calculates Average Readings Over Time
External Trigger Mode - for Switch Contact Testing or Remotely Stopping Display Update
Password Protection, Configurable for Individual Keys And Calibration
3-Year Warranty
Made In USA
