Order #: SGD-70-A
Mfg #: SGD 70-A

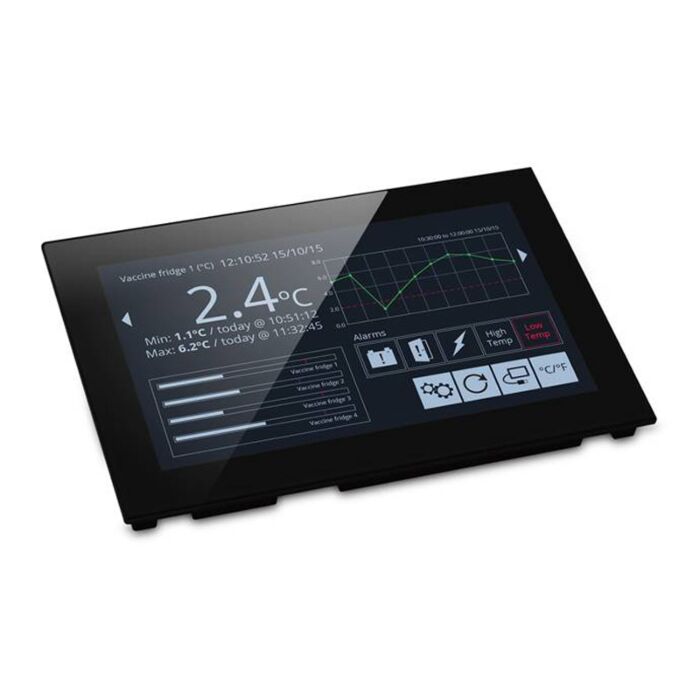

Lascar SGD 70-A
Order #: SGD-70-A
Mfg #: SGD 70-A
Product Highlights
SGD 70-A is a 7" capacitive touch display designed for use with PanelPilotACE Design Studio, a free drag-and-drop style software package for rapid development of advanced user interfaces and panel meters. This off the shelf display features a wealth of hardware interfaces, including four 16-bit bipolar analogue inputs (to a maximum of ±40V d.c.), eight digital input/output pins, two alarm outputs, four 8-bit PWM outputs, PID Control, Ethernet FTP for logged data, multi-channel data logging and trend graphs, serial RS232 and RS485 and an additional add on board to measure temperature.
The SGD 70-A is suitable for a wide variety of applications. These include:
- Process
- Automotive
- Automation & Control
- PLC / HMI / Data Acquisition
