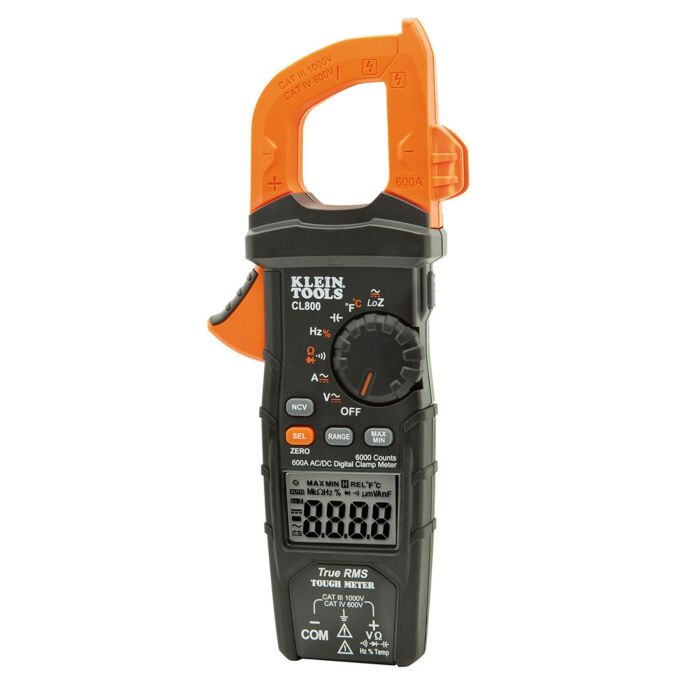

Klein Tools CL800

Product Highlights

• Automatically ranging true mean squared (TRMS) technology for increased accuracy
• Test leads measure AC/DC voltage, resistance, continuity, frequency and capacitance and tests diodes
• Thermocouple probe measures temperature
• Low Impedance (LoZ) mode for identifying and eliminating ghost or stray voltages
• CAT IV 600V, CAT III 1000V, Class 2, Double insulation safety rating
• Built to withstand a 6.6' (2m) drop
• Low battery indicator and easily accessible battery compartment
• Operating temp: 32°F to 104°F (0°C to 40°C).
• Operating altitude to 6,562 ft (2,000m).
• Meets requirements for use in basic and controlled electromagnetic environments like residential, office and light-industrial locations
• Application: Measures Current
• Special Features: Features Low Battery Indicator
• Overall Height: 9-3/32'' (231.0 mm)
• Overall Width: 3-13/16'' (96.8 mm)
• Batteries: 2 x AAA
• Jaw Size: 1-3/8'' (34.9 mm)
• Drop Protection: 6.6 ft (2 m)
• Display: 6000 Count LCD
• Voltage Range: 1000V AC; 1000V DC
• Frequency Range: 1Hz - 500 KHz
• Current: 600A AC; 600A DC
• Capacitance Test: 6000µF
• Ohms (Resistance): 60Mohm
• Temperature Range: -14° - 1000°F (-26° - 538°C)
• Ingress Protection: IP40
• Standard: CAT IV 600V; CE Certified
• Weight: 0.78 lb (0.35 kg)

Each Unit Includes

• Carrying Case
• 41'' (1041.4 mm) Test Leads
• Thermocouple with Adapter
• Batteries
