Order #: DSOX1202A
Mfg #: DSOX1202A
Keysight DSOX1202A InfiniiVision1000X Oscilloscope
Order #: DSOX1202A
Mfg #: DSOX1202A
Product Highlights
Keysight's InfiniiVision 1000 X-Series oscilloscopes are engineered to give you quality, industry-proven technology at unbelievably low prices. Now it's easy to get professional measurements and accessible expertise at your fingertips. Don't settle for less - and test to impress.
- 70/100/200 MHz (100 and 200 MHz require additional option)
- 2 GSa/s sample rate
- 2 M points of memory
- Make professional measurements, including, mask testing, math, FFT, and serial protocol analysis, all standard
- Quickly learn how to use with built-in help and training signals
- See more signal detail at 200,000 waveforms/sec update rate
- Replaces DSOX1102A.
- New Keysight color scheme (dark gray)
- Serial protocol analysis - standard
- LAN interface standard
- D1202BW1A (Upgrade from 70 to 100 MHz)
- D1202BW2A (Upgrade from 70 to 200 MHz)
- D1202BW3A (Upgrade from 100 to 200 MHz)
- Have confidence in your measurements with Keysight-custom technology that leverages more than 60 years of oscilloscope expertise
- Test quickly and easily with a simple, intuitive user-interface and built-in help and training signals
- Get professional-level functionality with industry-leading software analysis including standard serial bus analysis for the most popular serial bus standards, and 6-in-1 instrument integration
Each Unit Includes
- Standard 3-year warranty (90 days for unserialized accessories)
- 5-year calibration period with certificate provided
- Standard secure erase
- Two N2140A 200 MHz 10:1/1:1 switchable passive probes
- Built-in help in multiple languages
- Interface language support GUI: English, Simplified Chinese, Traditional Chinese, Japanese, Korean, German, French, Spanish, Russian, Portuguese, Thai, Polish, Italian, Czech, and Turkish
- Localized power cord
- Download BenchVue Basic app for free to control your instruments
- Keysight D1202BW1A Bandwidth Upgrade, 70 to 100MHz for InfiniiVision DSOX1202XBandwidth Upgrade, 70 to 100MHz for InfiniiVision DSOX1202X
Order #: D1202BW1A
Mfg #: D1202BW1A
Availability: Ships in 4-6 weeks$404.00 - Keysight D1202BW2A Bandwidth Upgrade, 70 to 200MHz for InfiniiVision DSOX1202XBandwidth Upgrade, 70 to 200MHz for InfiniiVision DSOX1202X
Order #: D1202BW2A
Mfg #: D1202BW2A
Availability: Ships in 4-6 weeks$806.00 - Keysight D1202BW3A Bandwidth Upgrade, 100 - 200MHz for InfiniiVision DSOX1202XBandwidth Upgrade, 100 - 200MHz for InfiniiVision DSOX1202X
Order #: D1202BW3A
Mfg #: D1202BW3A
Availability: Ships in 4-6 weeks$404.00 - Keysight 10070D Passive Probe, 20MHz, 1:1Passive Probe,20MHz,1:1
Order #: 10070D
Mfg #: 10070D
Availability: Ships in 4-6 weeks$441.00 - Keysight N2738A Soft Carrying Case for DSO1000 Series ScopesSoft Carrying Case for DSO1000 Series Scopes
Order #: N2738A
Mfg #: N2738A
Availability: Ships in 4-6 weeks$203.00 - Keysight N2780B Current Probe, 500A AC/DC, 2MHzCurrent Probe,500A AC/DC,2MHz
Order #: N2780B
Mfg #: N2780B
Availability: Ships in 4-6 weeks$11,670.00 - Keysight N2781B Current Probe, 150A AC/DC, 10MHzCurrent Probe,150A AC/DC,10MHz
Order #: N2781B
Mfg #: N2781B
Availability: Ships in 4-6 weeks$9,439.00 - Keysight N2783B Current Probe 30A AC/DC, 100MHzCurrent Probe 30A AC/DC,100MHz
Order #: N2783B
Mfg #: N2783B
Availability: Ships in 4-6 weeks$7,016.00 - Keysight N2870A Passive Probe, 1:1, 35MHzPassive Probe,1:1,35MHz
Order #: N2870A
Mfg #: N2870A
Availability: Ships in 4-6 weeks$515.00 - Keysight 1146B AC/DC Current Probe, 100kHz, 100AAC/DC Current Probe,100kHz,100A
Order #: 1146B
Mfg #: 1146B
Availability: Ships in 4-6 weeks$1,476.00 - Keysight 10076C Passive Probe, 3kV High Voltage, 100:1, 500MHzPassive Probe,3kV High Voltage 100:1,500MHz
Order #: 10076C
Mfg #: 10076C
Availability: Ships in 4-6 weeks$1,028.00 - Keysight N2889A Passive Probe, 350MHz, 10:1/1:1Passive Probe,-350MHz,10:1/1:1
Order #: N2889A
Mfg #: N2889A

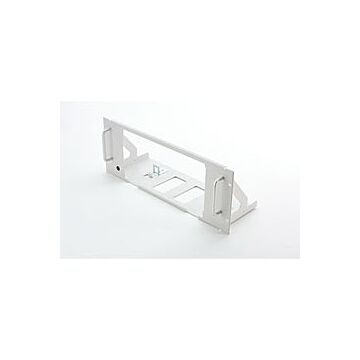

Availability: Ships in 4-6 weeks$298.00 - Keysight N2133A Rack Mount Kit for 1000X Series OscilloscopesRack Mount Kit for 1000X Series Oscilloscopes
Order #: N2133A
Mfg #: N2133A

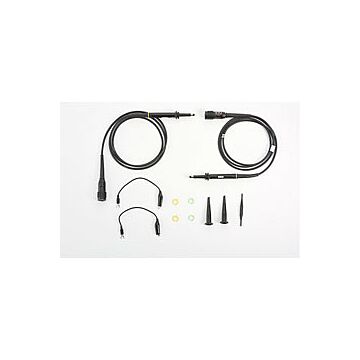

Availability: Ships in 4-6 weeks$589.00 - Keysight N2140A Passive Probe, 10:1, 200MHz, 2-PackPassive Probe,10:1,200MHz 2-Pack
Order #: N2140A
Mfg #: N2140A
Availability: Ships in 4-6 weeks$151.00
DSOX1202A | DSOX1202G | ||
---|---|---|---|
Bandwidth | 70 MHz (base bandwidth) 100 MHz (D1202BW1A) 200 MHz (D1202BW2A) |
||
Analog Channels | 2 | ||
External Trigger | Front panel input (Displayable as a 3rd digital channel) |
||
Sample Rate Per Channel (max) | 2 GSa/s (one- or two-channel operation) 1 GSa/s (if external trigger view is turned on) |
||
Memory Depth per Channel (max) | 2 M points (one- or two-channel operation) 1 M points (if external trigger view is turned on) |
||
WaveGen | Not available | 20 MHz function generator | |
Bode Plot | Not available | Standard | |
Waveform Update Rate | 200,000 waveforms per second | ||
Serial Protocol Analysis | Standard : I2C, SPI, UART/RS-232, CAN, LIN | ||
Segmented Memory | Standard | ||
Mask/Limit Testing | Standard | ||
Built-in training signals | Standard | ||
Integrated digital voltmeter | Standard | ||
Frequency counter | Standard | ||
Waveform math | Add, subtract, multiply, divide, FFT (magnitude and phase), low pass filter | ||
Automatic measurements | 14 amplitude, 14 timing, and 4 pulse count measurements | ||
Display | 7-inch TFT LCD WVGA | ||
Connectivity | USB 2.0 (host and device), LAN |
