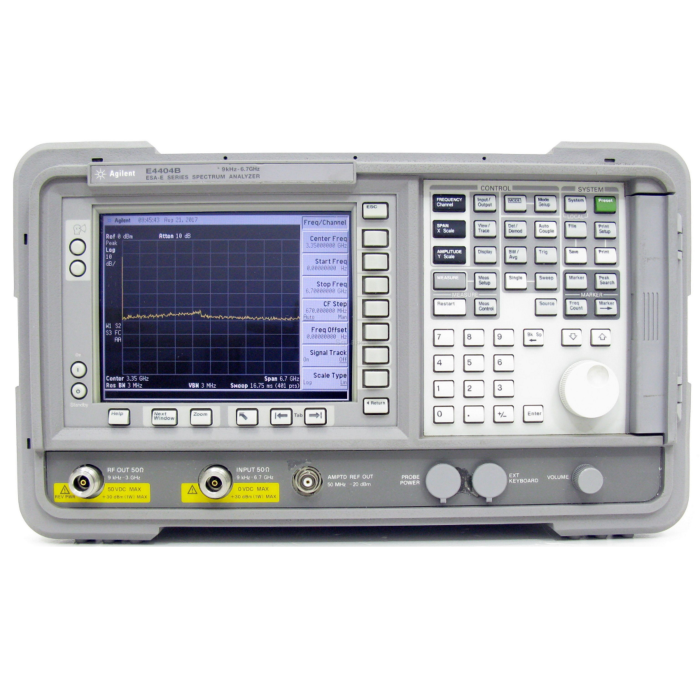

Used Keysight / Agilent E4404B Portable Spectrum Analyzer, 9kHz to 6.7GHz

Product Highlights

Speed

• 0.4 dB overall amplitude accuracy
• +16 dBm TOI
• -167 dBm DANL, with internal preamp
• 1 Hz narrow resolution bandwidth (optional)

Measurement applications

• Phase Noise, Noise Figure, GSM/EDGE, cdmaOne and more view full list of measurement applications
• PowerSuite one-button power measurements included as standard

Features

• 10 MHz analysis bandwidth
• Segmented sweep for up to 32 discontinuous spans in one sweep
• Rugged and portable for lab grade performance in the field
• 5 minute warm-up to guaranteed measurement accuracy

Configuration selections

• Standard express analyzer E4404B-STD for faster delivery time, includes options AYX, BAA.
• Standard express analyzer with tracking generator E4404B-STG for faster delivery time, includes options 1DN, AYX, BAA.
• Communications test express analyzer E4404B-COM for faster delivery time, includes options 1D5, 1DR, B7D, B7E, BAA.
• Custom configuration for maximum flexibility with standard delivery time.

Customers looking for a general purpose spectrum analyzer will appreciate the flexibility of the Keysight E4404B Spectrum Analyzer, which can be used for a wide range of applications from aerospace and defense to the manufacturing line. With express analyzer configurations (STD/STG/COM), customers will benefit from faster delivery and its price advantage.


Customers wanting to take advantage of the ESA flexibility, but who need a faster analyzer for the manufacturing line, or connectivity to LAN/USB in addition to GPIB, or want to do in depth signal analysis with 89601A VSA software, will benefit from the Keysight E4404A signal analyzer.
