Order #: 81628B-USED
Mfg #: 81628B

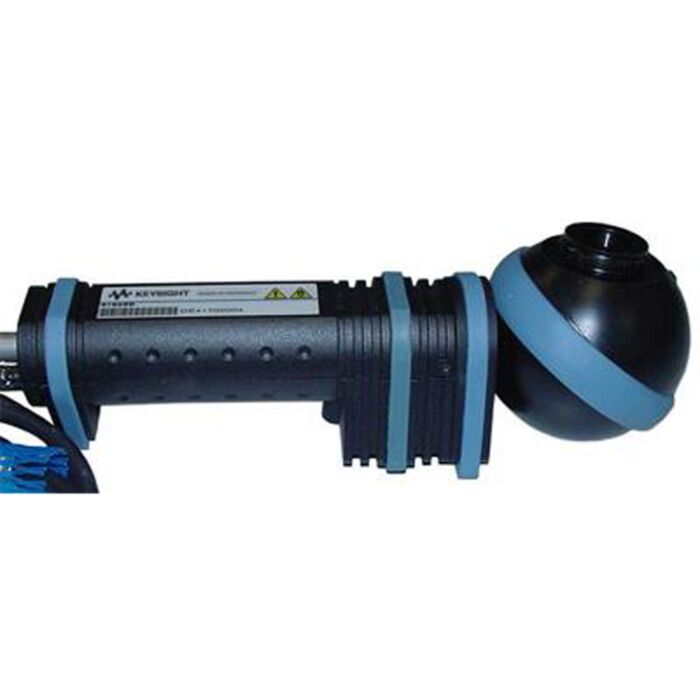

Used Keysight / Agilent 81628B +40dBm Optical Power Head for 816x Mainframes
Order #: 81628B-USED
Mfg #: 81628B
Request a Used Instrument Quote
Have a Question? Speak to a Transcat Expert: 800.264.4059
Transcat Used Instrument Guarantee
Calibration Certificate Included 6 Month Warranty Unsurpassed Service & Support
![Loading...](https://www.transcat.ca/static/version1724161005/frontend/Transcat/canada-en/en_US/images/loader-1.gif)
Product Highlights
The 81628B optical power head has a built-in integrating sphere with wavelength-dependent calibration for accurate high power measurements. Distributing the power over a large surface away from the detector assures linearity and temperature stability. Functionality includes averaging time settings from 100 µs to 10 s, automatic power ranging, monitoring of minimum and maximum values and logging up to 20k samples. Fiber adapters are available for common connector types. including bare fiber clamps.
The 81628B is used with the threaded type adapters. When the adapter is removed, the 8 mm diameter aperture is available for input to open beams or customized fiber holders. The heads are connected to the 816x mainframes using the 81618A single channel or 81619A dual-channel interface module.
- High input power levels up to +40 dBm with Integrating sphere
- Integrating sphere for high power levels of +40 dBm
- Wide 8 mm diameter aperture
- Detachable heatsink for input power above 2W
-
-
