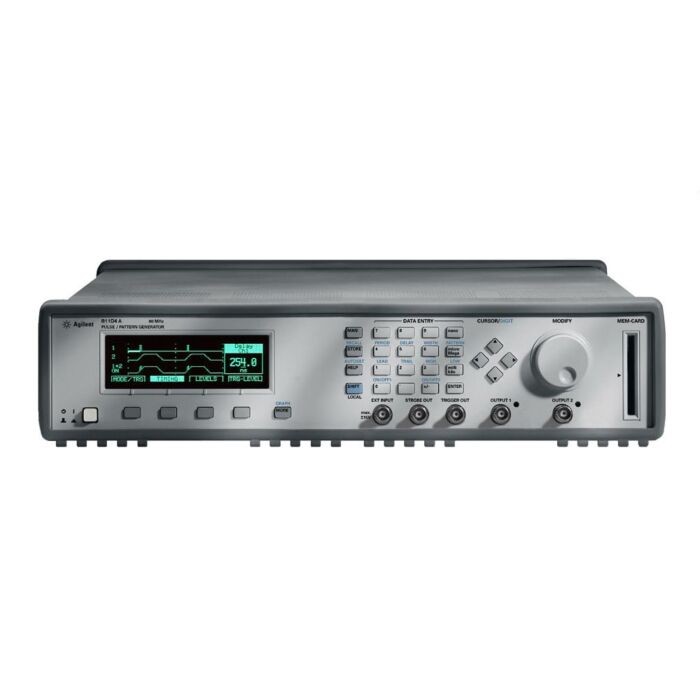

Used Keysight / Agilent 81104A Pulse Pattern Generator, 0.001Hz-80MHz
Order #: 81104A-USED
Mfg #: 81104A
Request a Used Instrument Quote
Have a Question? Speak to a Transcat Expert: 800.264.4059
Transcat Used Instrument Guarantee
Calibration Certificate Included 6 Month Warranty Unsurpassed Service & Support
Product Highlights
The Keysight 81104A 80 MHz Pulse Pattern Generator with one or two Keysight 81105A output modules (single-/dual-channel) builds on the performance of the 81101A and is backward-compatible.
The 81104A extends the frequency range and adds RZ/NRZ pattern capability up to 16 kbit per channel. An NRZ strobe channel provides a trigger at arbitrary points in the pattern, or can be used as an additional pattern source.
Channel-add and 1000 Ohm source modes each operate up to about 60 MHz. Combined, the maximum speed is about 15 MHz.
- Single-/dual-channel pulse pattern generator
- 80 MHz, 10 V from 50 Ohm into 50 Ohm
- Triggerable / PLL operation selectable
- Pulse / burst / pattern modes selectable
- Variable transition times
- BNC outputs, single-ended
- Single- or dual-channel: Requires 1 or 2 output modules 81105A
