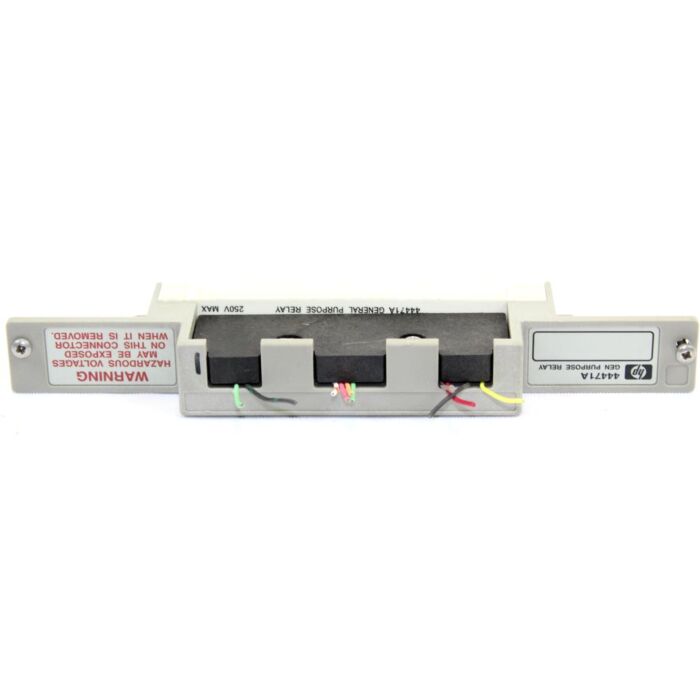

Used Keysight / Agilent 44471A 10-Channel General Purpose Relay Module, 2A, 250V, 1-Wire
Order #: 44471A-USED
Mfg #: 44471A
Request a Used Instrument Quote
Have a Question? Speak to a Transcat Expert: 800.264.4059
Transcat Used Instrument Guarantee
Calibration Certificate Included 6 Month Warranty Unsurpassed Service & Support
Product Highlights
The Keysight 44471A is a 10-channel 1-wire general-purpose relay module. It can be used to control DUT power, to actuate external relay or to form an attenuator. Each relay on the module is rated for switching up to 250V, 2A, or up to 60W or 125VA. The initial closed channel resistance is lower than 1 Ohm. The Keysight 44471A exhibits low thermal characteristics, making it ideal for independent signal switching. A screw terminal block is provided for ease of wiring.
The 44470A, 44470D, 44471A, and 44471D are designed for low-channel count applications, with higher switching capability (current or voltage) than N2260A or N2261A modules.
- 2A, 250V
- SPST latching relays
- Provisions to add simple protection networks
