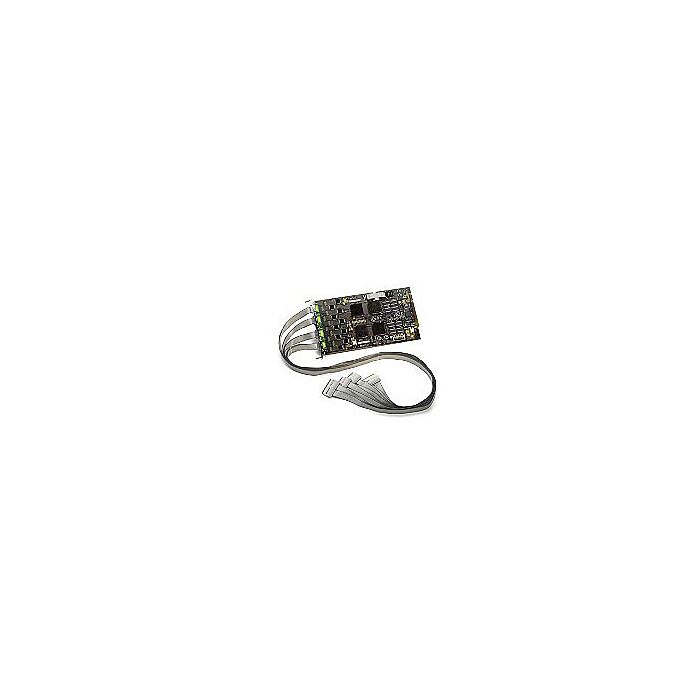

Keysight 16951B for Rent, Logic Analyzer Module, 4GHz, 250ps timing zoom with 64K memory
Logic Analyzer Module, 4GHz 250ps timing zoom w/ 64K memory

Order #: 16951B-RENT2

Mfg #: 16951B

Questions about availability or need help? Contact Us:

(800) 633-0561
Call for price
Call for price

Keysight 16951B for Rent, Logic Analyzer Module, 4GHz, 250ps timing zoom with 64K memory

Logic Analyzer Module, 4GHz 250ps timing zoom w/ 64K memory

Order #: 16951B-RENT2

Mfg #: 16951B

Call for price

Request a Rental Quote

Have a Question? Speak to a Transcat Rental Expert: 800.264.4059

Call for price

Keysight 16951B Highlights

The 16951B logic analyzer module offers the deepest memory depth in the industry, across all channels. Deep memory allows you to maximize the time covered by your measurement. In addition, the module offers the highest performance for your most demanding digital debug applications.

  • Timing Analysis (Asynchronous Sampling)
  • 4 GHz (250 ps) timing zoom with 64 K memory
  • 1.2 GHz / 600 MHz (half / full-channel) conventional timing with deep memory
  • 600 MHz transitional timing
  • State Analysis (Synchronous Sampling)
  • State clock rates up to 667 MHz
  • Data rates: up to 1066 Mb/s (Dual Sample), up to 667 Mb/s (Double Data Rate - DDR)
  • Automated threshold/sample position setup for accurate measurements on high-speed buses
  • Simultaneous eye diagrams on all channels identify problem signals quickly

Keysight 16951B Configuration Considerations

  • 68-channels per module, combine up to 5 modules for 340 channels
  • 256 M memory depth
  • Compatible with 90-pin logic analyzer probes
  • Compatible with 16900 Series modular logic analyzers
  • Additional Capabilities: Comprehensive single-ended and differential signal support, threshold is adjustable from -3 V to 5 V (10 mV increments)
