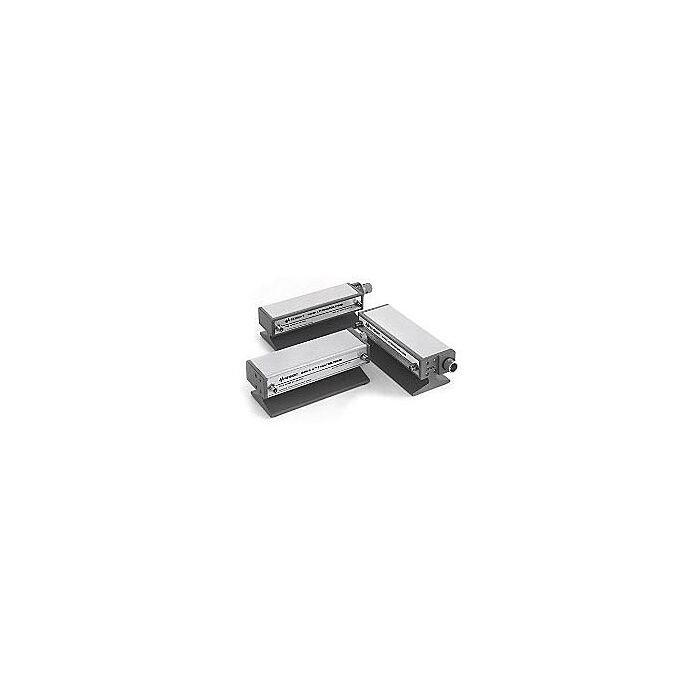

Keysight 8497K for Rent, Programmable Attenuator, 26.5 GHz, 90 dB, 10 dB steps
Programmable Attenuator 26.5 GHz, 90 dB, 10 dB steps

Order #: 8497K-RENT2

Mfg #: 8497K

Questions about availability or need help? Contact Us:

(800) 633-0561
Call for price
Call for price

Keysight 8497K for Rent, Programmable Attenuator, 26.5 GHz, 90 dB, 10 dB steps

Programmable Attenuator 26.5 GHz, 90 dB, 10 dB steps

Order #: 8497K-RENT2

Mfg #: 8497K

Call for price

Request a Rental Quote

Have a Question? Speak to a Transcat Rental Expert: 800.264.4059

Call for price

Keysight 8497K Highlights

The Keysight 8497K, dc to 26.5 GHz programmable step attenuator, offers exceptional repeatability and reliability. Attenuation is provided in 10 dB steps from 0 to 90 dB. Precision gold-plated leaf springs ensure long life (over 5 million cycles) and very high attenuator repeatability (typically 0.01 dB). To improve measurement accuracy, NIST traceable data (SWR and attenuation) is available as Option UK6. A maximum switching time of 20 ms (including contact settling) speeds automatic testing. Custom step attenuator/switch combinations are possible. The Keysight 11716A/B/C interconnect kits provide quick connection of Keysight 8494/5/6/7 1 dB and 10 dB step attenuators in series for greater dynamic range with 1 dB steps.

  • Superior RF Performance
  • Frequency range: dc to 26.5 GHz
  • Insertion loss at 0 dB: 0.4 dB + 0.09 dB/GHz
  • Maximum SWR: 1.25 to 6 GHz, 1.45 to 12.4 GHz, 1.6 to 18 GHz, 1.8 to 26.5 GHz
  • Repeatability and Life Span
  • Repeatability life: 0.03 dB max to 18 GHz, ±0.05 dB max to 26.5 GHz 5 million cycles per section (typical)
  • 5 million cycles per section
  • Power Handling
  • Maximum RF input power: 1 W (average), 100 W (peak)
  • Connector type: 3.5 mm female
  • Programming connector: 12-pin Viking, optional 14-pin DIP
  • Option 004: APC-3.5mm (f) Connector
