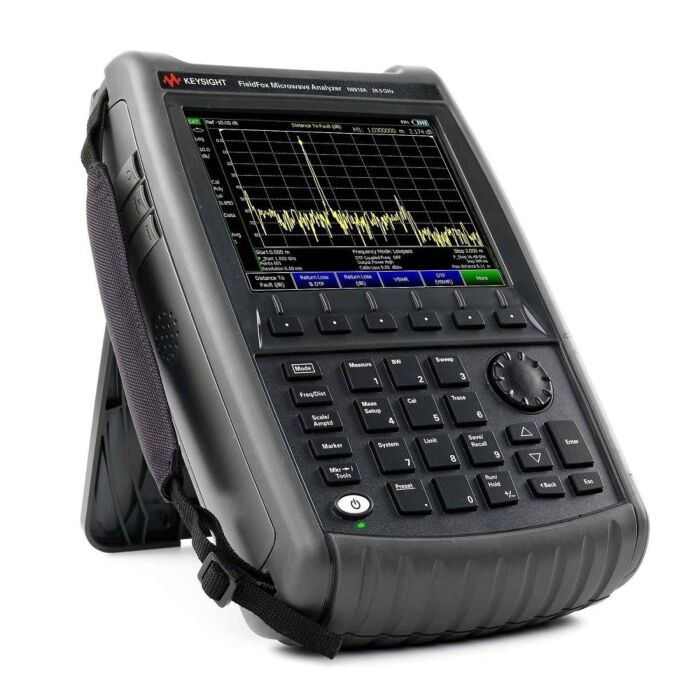

Keysight / Agilent N9918A for Rent, FieldFox Handheld Microwave Analyzer, 26.5GHz

Product Highlights

The Keysight N9918A FieldFox Combination Analyzer is equipped to handle routine maintenance, deep troubleshooting and anything in between. The Keysight N9918A (Agilent) FieldFox delivers high-quality measurements wherever you need to go. Add a FieldFox N9918A to your trouble-shooting toolkit, and carry precision with you.

The N9918A microwave combination analyzer's base function is a cable and antenna analyzer and it can be configured to include a spectrum and network analyzer. FieldFox can be ordered with additional capabilities: power meter, independent signal generator, vector voltmeter, interference analyzer, variable DC source, built-in GPS receiver and remote control using an iPad or iPhone.

Features

Cable and antenna analyzer (CAT), vector network analyzer (VNA)

• 30 kHz to 26.5 GHz
• CAT: Distance-to-fault, return loss, cable loss
• VNA dynamic range: 100 dB to 9 GHz, 90 dB to 18 GHz
• VNA: S11, S21, S22, S12, magnitude and phase

Spectrum analyzer

• 5 kHz to 26.5 GHz
• ± 0.6 dB amplitude accuracy, full band, over full temperature range of -10 to +55 °C (14 to 131 °F)
• Spur-free dynamic range: ≥ 105 dB
• Full-band tracking generator

Independent source, vector voltmeter (VVM), power and pulse measurements

• RF source: 30 kHz to 26.5 GHz, CW, CW coupled, and tracking
• VVM: 30 kHz to 26.5 GHz, compare phase and electrical length
• Average power, peak power, and pulse characterization with USB power sensors
• Built-in power meter: 5 kHz to 26.5 GHz

FieldFox instrument attributes

• Remote control via iPad or iPhone
• Battery life: 3.5-hours; weight: 3.0 kg or 6.6 lbs
• Operating temperature: -10 to +55 °C (14 to 131 °F)
